VAILLANT
MAG 9/1 XZ 1999-2011 - (08 Connection Parts)
Appliance Code: 9/1 XZ

Appliance Diagram

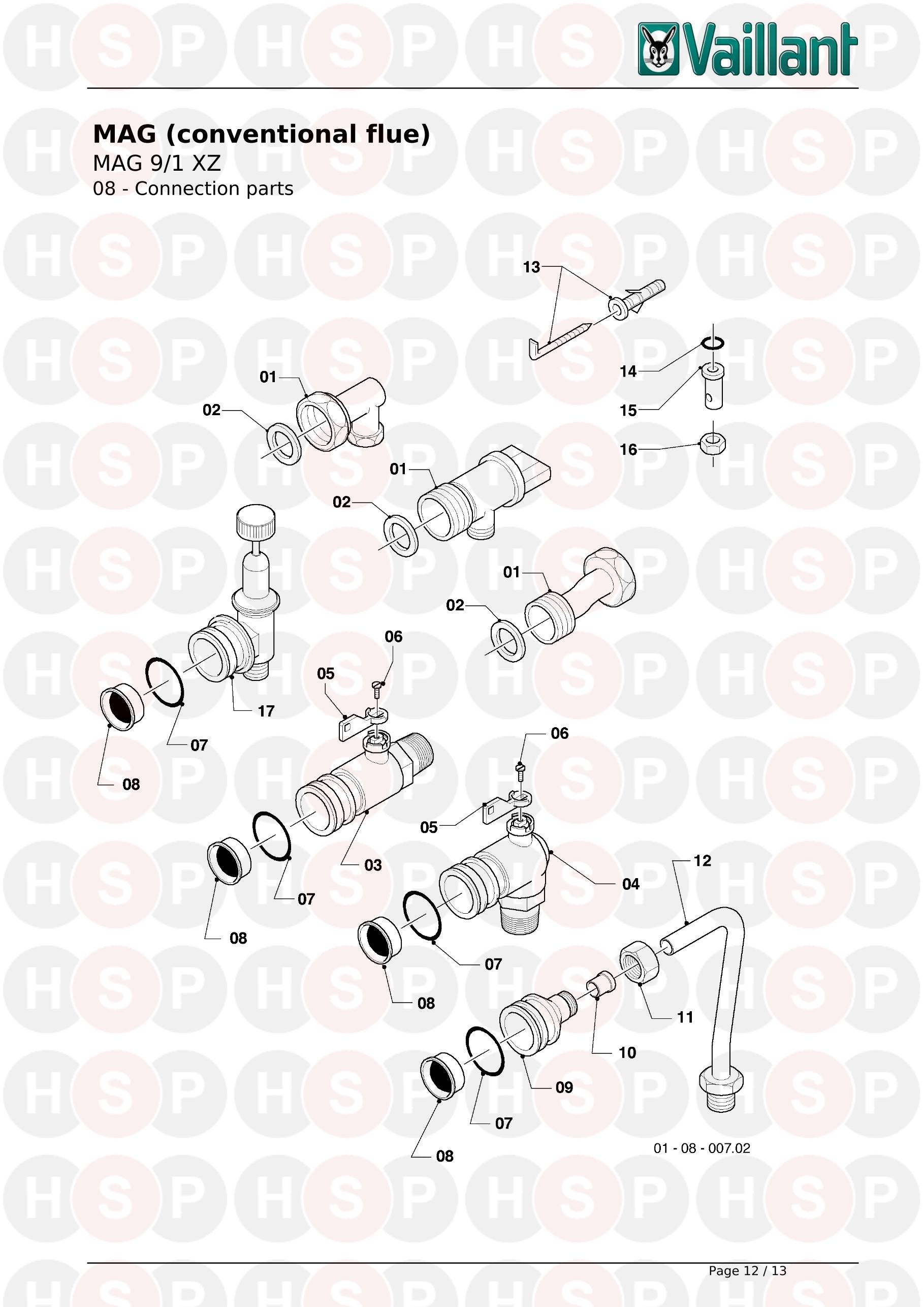

08 Connection Parts diagram for Vaillant Mag 9/1 XZ 1999-2011Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 080978, Cold water connection COLD WATER CONNECTION
Vaillant part no. 080978
£37.73
2 Part number 981141, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981141
£6.66
3 Part number 082776, gas shut-off valve - straight GAS SHUT-OFF VALVE - STRAIGHT
Vaillant part no. 082776

4 Part number 082777, gas shut-off valve - bend GAS SHUT-OFF VALVE - BEND
Vaillant part no. 082777

5   HANDLE
Vaillant part no. 125138
£6.66
6   PAN HEAD SCREW
Vaillant part no. 118873

7 Part number 982346, O-ring O-RING
Vaillant part no. 982346

8 Part number 128522, gas filter GAS FILTER
Vaillant part no. 128522

9 Part number 088421, screw connection SCREW CONNECTION
Vaillant part no. 088421
£14.45
10 Part number 980136, Gasket GASKET
Vaillant part no. 980136
£6.66
11   SLEEVE NUT
Vaillant part no. 080049
£6.66
12 Part number 080032, gas connection GAS CONNECTION
Vaillant part no. 080032
£11.90
14 Part number 981144, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981144
£6.66
15 Part number 950071, socket SOCKET
Vaillant part no. 950071
£6.66
16 Part number 010144, sleeve nut SLEEVE NUT
Vaillant part no. 010144
£6.66
