VAILLANT
MAG 9/1 XZ 1999-2011 - (06 Heat Exchanger)
Appliance Code: 9/1 XZ

Appliance Diagram

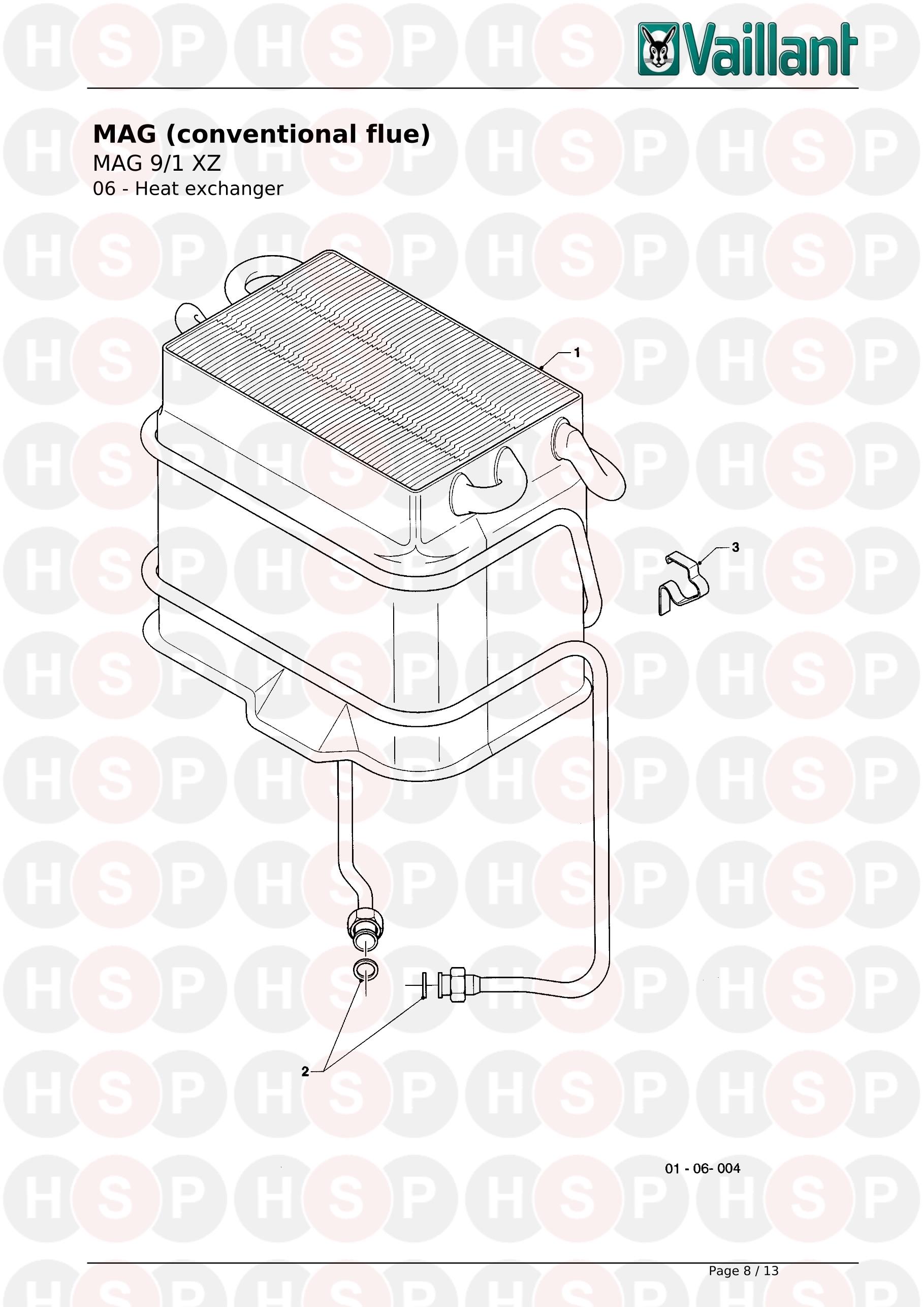

06 Heat Exchanger diagram for Vaillant Mag 9/1 XZ 1999-2011Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 061636, Heat exchanger HEAT EXCHANGER
Vaillant part no. 061636

2 Part number 981144, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981144
£6.66
3 Part number 139702, Spring clamp SPRING CLAMP
Vaillant part no. 139702
£8.97
