VAILLANT
MAG 9/1 XZ 1999-2011 - (04 Burner)
Appliance Code: 9/1 XZ

Appliance Diagram

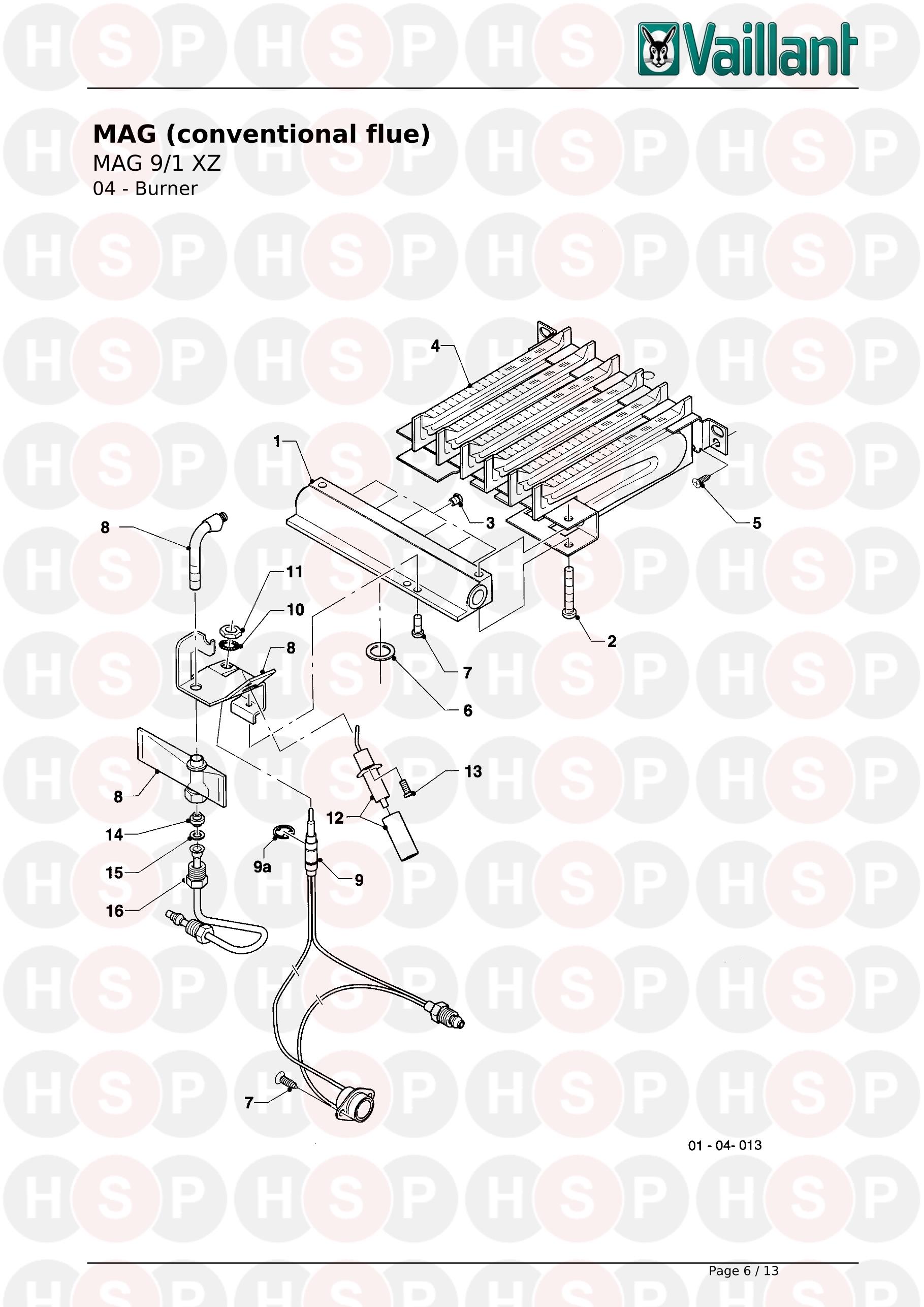

04 Burner diagram for Vaillant Mag 9/1 XZ 1999-2011Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 126726, Burner support BURNER SUPPORT
Vaillant part no. 126726
£16.85
2 Part number 105831, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105831
£6.66
3 Part number 291203, Injector, 0.72 (PK12) INJECTOR, 0.72 (PK12)
Vaillant part no. 291203
£11.30
4 Part number 042022, Burner chamber group BURNER CHAMBER GROUP
Vaillant part no. 042022
£46.32
5   CYLINDER SCREW (PK10)
Vaillant part no. 105833
£6.66
6 Part number 981125, Gasket (PK10) GASKET (PK10)
Vaillant part no. 981125
£6.66
7   CYLINDER SCREW (PK10)
Vaillant part no. 105833
£6.66
8 Part number 042186, Pilot burner PILOT BURNER
Vaillant part no. 042186
£38.14
9 Part number 171016, thermo-couple THERMO-COUPLE
Vaillant part no. 171016

9A Part number 182728, Safety ring (PK10) SAFETY RING (PK10)
Vaillant part no. 182728
£6.66
10   DISC (PK10)
Vaillant part no. 191306
£6.66
11 Part number 114627, Nut (PK10) NUT (PK10)
Vaillant part no. 114627
£8.31
12 Part number 090715, Ignition electrode bent IGNITION ELECTRODE BENT
Vaillant part no. 090715
£6.66
13 Part number 105834, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105834
£6.66
15 Part number 0020078902, Injector INJECTOR
Vaillant part no. 0020078902
£6.66
15 Part number 981145, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981145
£6.66
16 Part number 023902, Pilot burner tube PILOT BURNER TUBE
Vaillant part no. 023902
£9.49
