WORCESTER
WR8P 31 7701431556 - (Front Cover)
Appliance Code: 7701431556

Appliance Diagram

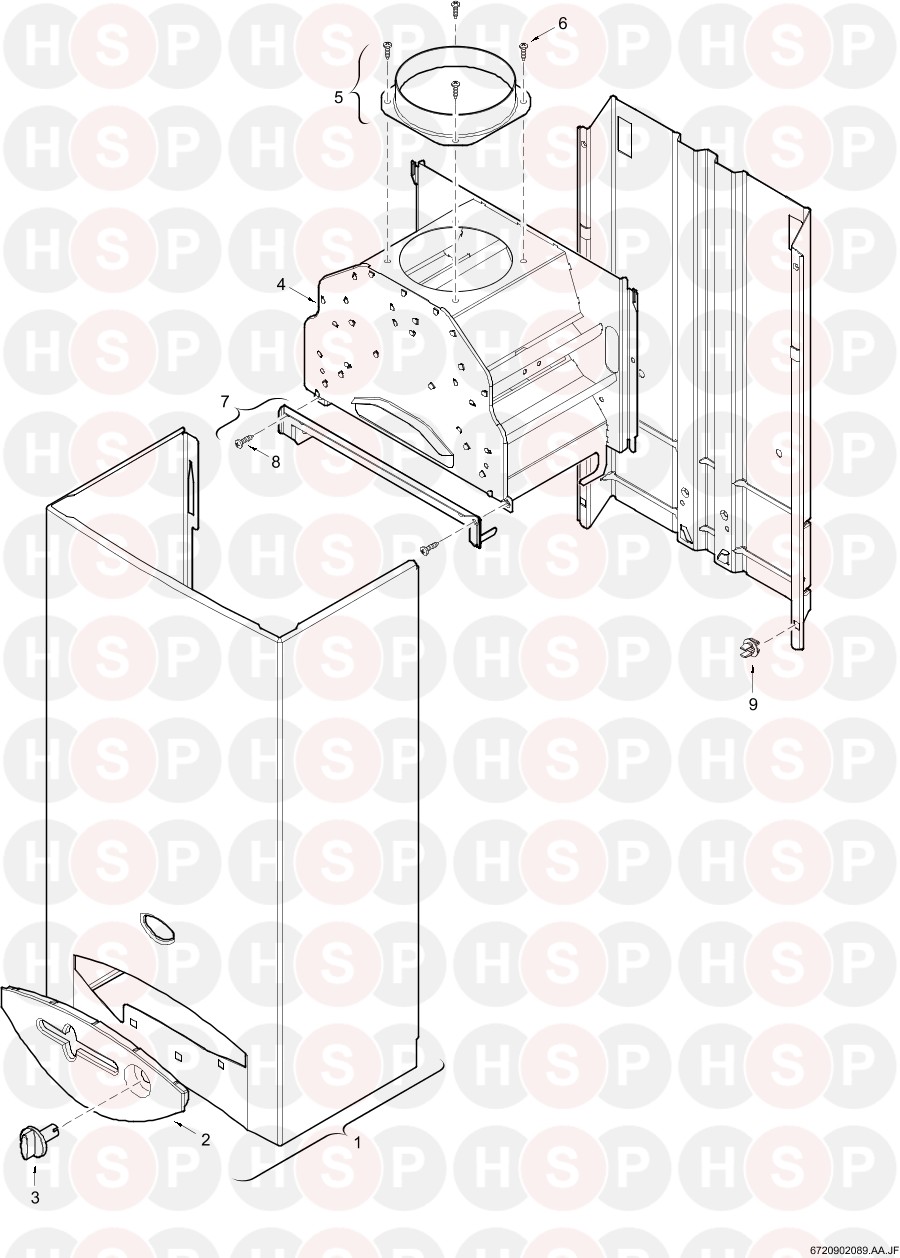

Front Cover diagram for Worcester WR8P 31 7701431556Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRONT SHELL
Worcester part no. 87054311060
£70.47
2   SHIELD
Worcester part no. 87199054650
£11.43
3 Part number 87020003040, WATER FLOW SELECTOR HANDLE WATER FLOW SELECTOR HANDLE
Worcester part no. 87020003040
£3.98
4   DRAUGHT DIVERTER
Worcester part no. 87055054380
£30.93
5   EXHAUST PIPE UNION D:110
Worcester part no. 87055040370
£3.11
6   SCREW (10X)
Worcester part no. 29181404170

7   ANGLE BRACKET
Worcester part no. 87080031900
8 Part number 87034030120, NOW USE 87134030390SCREW M4,8X9,5 (10X) NOW USE 87134030390SCREW M4,8X9,5 (10X)
Worcester part no. 87034030120

8 Part number 87134030390, SCREW 4.8 X 30mm SET OF 3 SCREW 4.8 X 30MM SET OF 3
Worcester part no. 87134030390
£4.61
9   CLIP (10X)
Worcester part no. 87005062000
£6.25
