WORCESTER
GREENSTAR COMBI 30 CDI HE LPG - (Control Box)
Appliance Code: 47-406-15

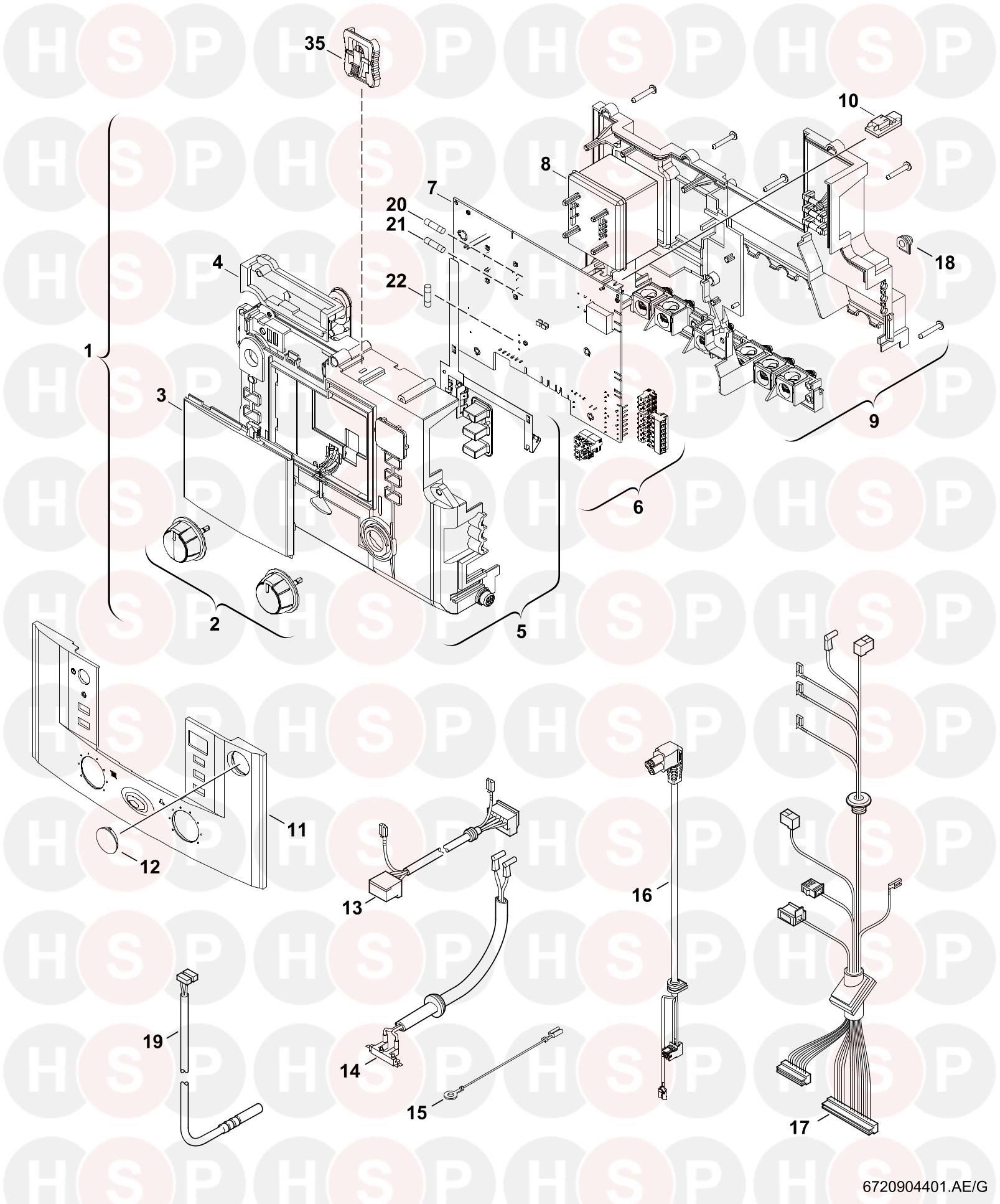

Appliance Diagram


Control Box diagram for Worcester Greenstar Combi 30 CDI HE LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87172077470, CONTROL BOX HT3 BEFORE FD206 CONTROL BOX HT3 BEFORE FD206
Worcester part no. 87172077470		 £322.02
2 Part number 87120001290, ROTARY HANDLE ROTARY HANDLE
Worcester part no. 87120001290		 £4.85
3 Part number 87110003020, COVER COVER
Worcester part no. 87110003020		 £14.90
4 Part number 87172076800, COVER COVER
Worcester part no. 87172076800		 £4.15
5 Part number 87172076780, UPPER HOUSING UPPER HOUSING
Worcester part no. 87172076780		 £49.27
6 Part number 87144043480, SET OF CONNECTORS SET OF CONNECTORS
Worcester part no. 87144043480		 £11.92
7 Part number 87172077470, CONTROL BOX HT3 BEFORE FD206 CONTROL BOX HT3 BEFORE FD206
Worcester part no. 87172077470		 £322.02
8 Part number 87172010520, TRANSFORMER TRANSFORMER
Worcester part no. 87172010520		 £22.71
9 Part number 87172076790, BACK PANEL BEFORE FD205 (05.2012) BACK PANEL BEFORE FD205 (05.2012)
Worcester part no. 87172076790		 £35.98
10   CODE PLUG 1012 (NG)
Worcester part no. 87144310120		 £3.20
10   CODE PLUG 1013 (LPG)
Worcester part no. 87144310130		 £3.07
11 Part number 87155066990, SHIELD SHIELD
Worcester part no. 87155066990		 £26.09
13 Part number 87144113270, NOW USE 8716117968 FAN HARNESS NOW USE 8716117968 FAN HARNESS
Worcester part no. 87144113270
13 Part number 8716117968, CABLE FAN CONNECTOR ASSEMBLY CABLE FAN CONNECTOR ASSEMBLY
Worcester part no. 8716117968		 £10.17
14 Part number 87161067390, IGNITION LEAD IGNITION LEAD
Worcester part no. 87161067390		 £24.39
14 Part number 87144113260, NOW USE 87161067390 IGNITION LEAD NOW USE 87161067390 IGNITION LEAD
Worcester part no. 87144113260
15 Part number 87161069800, GROUND CABLE GROUND CABLE
Worcester part no. 87161069800		 £0.94
16 Part number 87161073290, PUMP CABLE PUMP CABLE
Worcester part no. 87161073290		 £9.24
17 Part number 87144113280, HARNESS BEFORE FD788 HARNESS BEFORE FD788
Worcester part no. 87144113280		 £45.44
17 Part number 87182213460, HARNESS AFTER FD789 HARNESS AFTER FD789
Worcester part no. 87182213460		 £51.80
20 Part number 19045227400, FUSING ELEMENT T1,6A (10X) FUSING ELEMENT T1,6A (10X)
Worcester part no. 19045227400		 £8.50
20 Part number 19045227300, FUSING ELEMENT T0,5A (10X) FUSING ELEMENT T0,5A (10X)
Worcester part no. 19045227300		 £7.10
22 Part number 87161156770, FUSING ELEMENT T2.5A FUSING ELEMENT T2.5A
Worcester part no. 87161156770		 £2.45
99   GAS CONVERSION KIT 31>23
Worcester part no. 87190011050		 £6.55
