WORCESTER
GREENSTAR 36 CDI COMPACT LPG - (Expansion Vessel Wall Jig)
Appliance Code: 47-406-49

Appliance Diagram


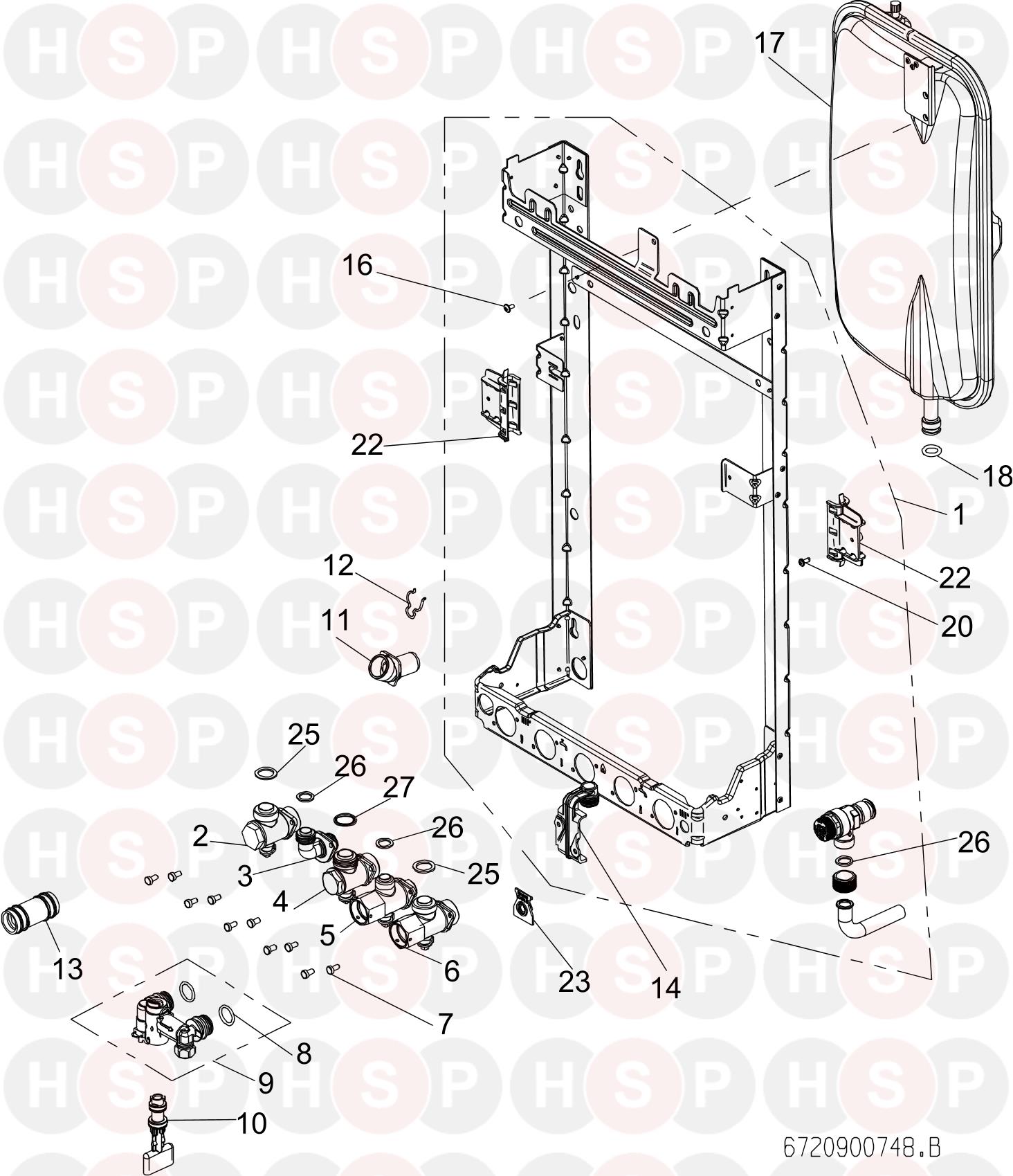

Expansion Vessel Wall Jig diagram for Worcester Greenstar 36 CDI Compact LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   WALL FRAME ASSEMBLY
Worcester part no. 87186889730		 £102.07
2 Part number 87161567550, VALVE - C.H. (UK) VALVE - C.H. (UK)
Worcester part no. 87161567550		 £16.37
3 Part number 87161563840, CONNECTOR DHW-OUT (UK) CONNECTOR DHW-OUT (UK)
Worcester part no. 87161563840		 £8.27
4 Part number 87161094290, GAS COCK GAS COCK
Worcester part no. 87161094290		 £17.38
5 Part number 87161034240, VALVE - DCW IN (UK) VALVE - DCW IN (UK)
Worcester part no. 87161034240		 £29.85
6 Part number 87161034230, VALVE - CH (UK) VALVE - CH (UK)
Worcester part no. 87161034230		 £30.80
7 Part number 87182242510, SCREW M5 X 10mm SCREW M5 X 10MM
Worcester part no. 87182242510		 £1.56
8 Part number 87161408060, O-RING 2.62 X 17.86 AFTER FD992 O-RING 2.62 X 17.86 AFTER FD992
Worcester part no. 87161408060		 £2.79
9 Part number 87161045920, NOW USE 87161073030 CHARGING LINK ASSEMBLY NOW USE 87161073030 CHARGING LINK ASSEMBLY
Worcester part no. 87161045920
9 Part number 87161073030, FILLING LOOP FILLING LOOP
Worcester part no. 87161073030		 £47.59
10 Part number 87161045910, CHARGING KEY ASSEMBLY CHARGING KEY ASSEMBLY
Worcester part no. 87161045910		 £5.53
11 Part number 87186817120, SIPHON OUTLET SIPHON OUTLET
Worcester part no. 87186817120		 £2.25
12 Part number 87186810080, Clip CLIP
Worcester part no. 87186810080		 £1.44
13 Part number 87161138280, CONNECTOR-OVERFLOW PIPE CONNECTOR-OVERFLOW PIPE
Worcester part no. 87161138280		 £2.03
14 Part number 87186809530, SUPPORT PRE-PLUMB PRV SUPPORT PRE-PLUMB PRV
Worcester part no. 87186809530		 £5.17
16 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
17 Part number 87186849450, EXPANSION_VESSEL EXPANSION_VESSEL
Worcester part no. 87186849450		 £87.70
18 Part number 87161165490, O-RING 13,87X3,53 (10X) O-RING 13,87X3,53 (10X)
Worcester part no. 87161165490		 £3.13
20 Part number 29142113020, SCREW OVAL-HEAD B4X10-ST-H SCREW OVAL-HEAD B4X10-ST-H
Worcester part no. 29142113020		 £1.92
23 Part number 87186810480, Grommet AFTER FD887 GROMMET AFTER FD887
Worcester part no. 87186810480		 £1.71
25 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
25 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
26 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
27 Part number 87101031610, WASHER 18,3X24,3 (10X) WASHER 18,3X24,3 (10X)
Worcester part no. 87101031610		 £8.27
