WORCESTER
CAMRAY 5 40/65 SYSTEM (OCT 2004 ONWARDS) 7716110004 - (Heat Exchanger)
Appliance Code: 7716110004

Appliance Diagram


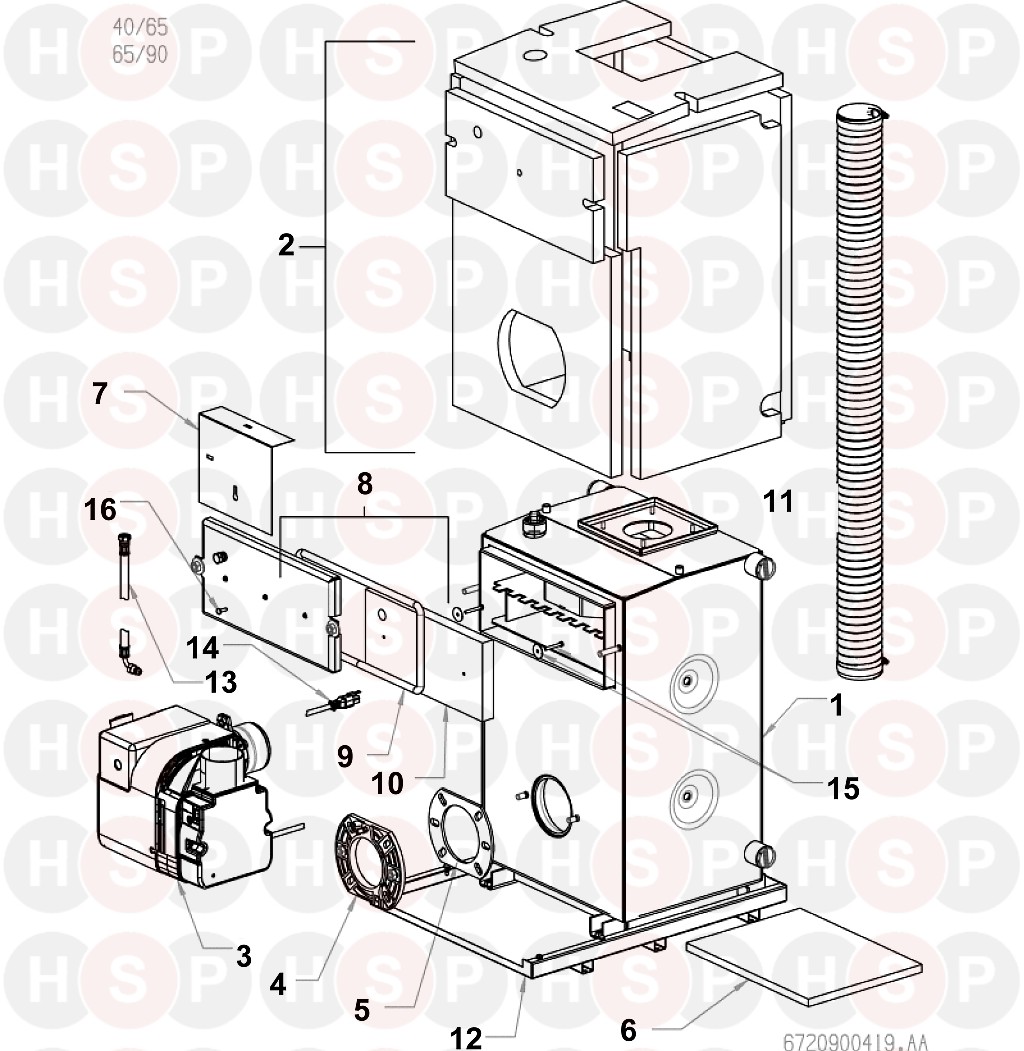

Heat Exchanger diagram for Worcester Camray 5 40/65 System (Oct 2004 Onwards) 7716110004Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   HEAT EXCHANGER
Worcester part no. 87161100660
£1,390.50
2   HEAT EXCHANGER INSULATION SET
Worcester part no. 87161071640
£28.10
3   RIELLO BURNER COMPLETE 40/65 & C5C55
Worcester part no. 87161072820
£470.65
4 Part number 87161080510, BURNER FLANGE BURNER FLANGE
Worcester part no. 87161080510
£20.88
5 Part number 87161072420, GASKET G2,3,5 FLANGE GASKET G2,3,5 FLANGE
Worcester part no. 87161072420
£7.95
6   COMBUSTION CHAMBER BASE INSULATION
Worcester part no. 87161072310
£12.21
7   HEAT SHIELD
Worcester part no. 87161071590
£2.54
8   INSPECTION COVER COMPLETE
Worcester part no. 87161071470
£31.86
9 Part number 87161407330, ROPE-THERMOSEAL TYPE6 19mm DIA ROPE-THERMOSEAL TYPE6 19MM DIA
Worcester part no. 87161407330
£25.92
10   INSPECTION COVER INSULATION (CERABOARD)
Worcester part no. 87161071490
£5.19
11 Part number 87161072440, BURNER AIR DUCT BURNER AIR DUCT
Worcester part no. 87161072440
£19.30
12   BASE TRAY
Worcester part no. 87161071500
£25.22
13 Part number 87161153120, OIL HOSE HNBR 900mm OIL HOSE HNBR 900MM
Worcester part no. 87161153120
£21.86
14   BURNER LEAD
Worcester part no. 87161091970
£39.64
15   WASHER 3/16 X 1" STEEL
Worcester part no. 87161072990
£3.78
15   SCREW M5 X 35 CHEESE HD
Worcester part no. 29100111680
£3.78
16 Part number 29124511580, SCREW M5 X 16mm POZI PAN HEAD SCREW M5 X 16MM POZI PAN HEAD
Worcester part no. 29124511580
£2.00
