WORCESTER
CAMRAY 5 40/65 SYSTEM (OCT 2004 ONWARDS) 7716110004 - (Casing)
Appliance Code: 7716110004

Appliance Diagram

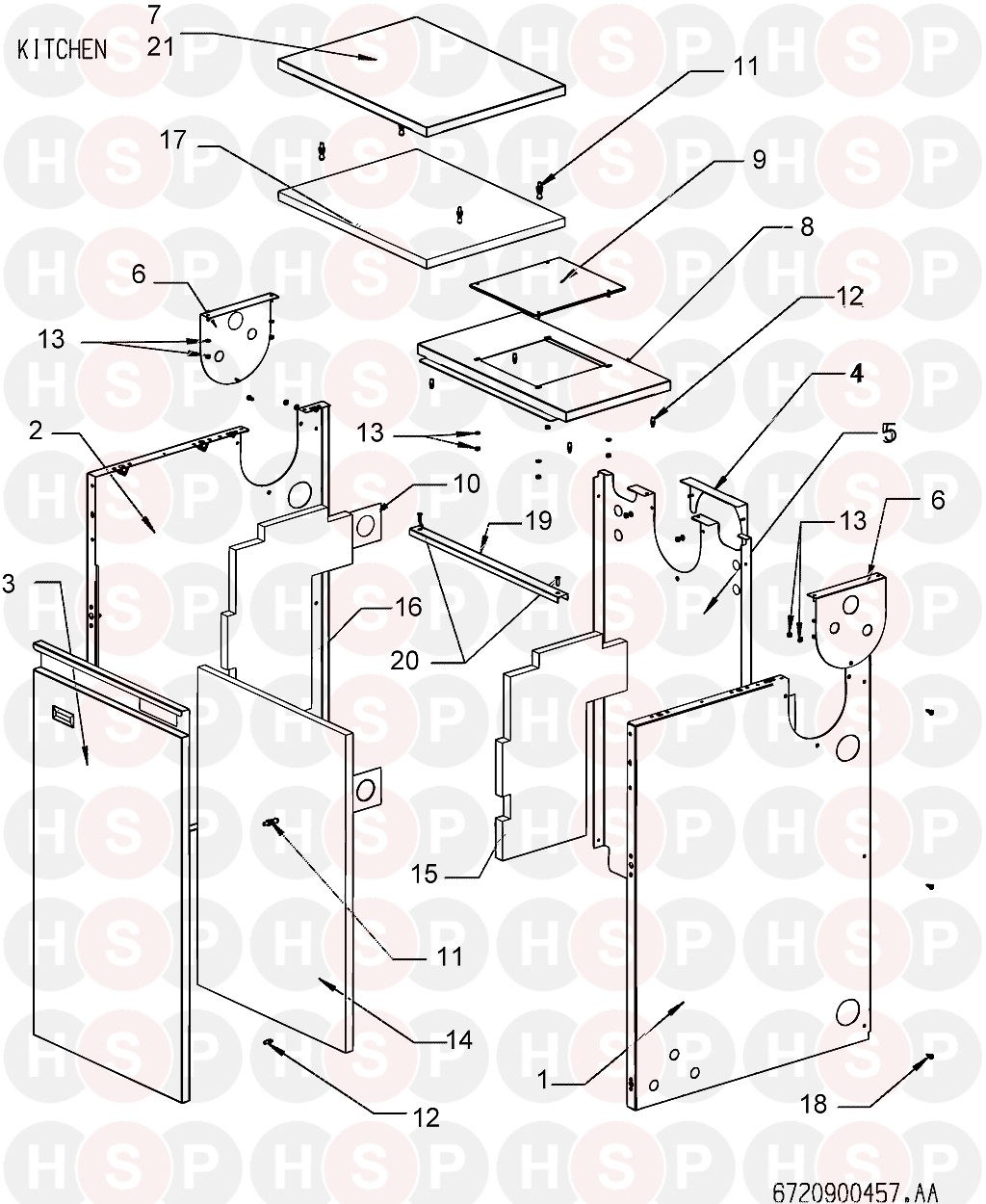

Casing diagram for Worcester Camray 5 40/65 System (Oct 2004 Onwards) 7716110004Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161071690, CASING INSULATION CASING INSULATION
Worcester part no. 87161071690
£16.69
1   RIGHT SIDE CASING PANEL
Worcester part no. 87161071520
£39.24
2   LH SIDE PANEL ASSEMBLY 40/90 KITCHEN
Worcester part no. 87161116160
£101.58
3   DOOR PANEL
Worcester part no. 87161071550
£40.65
4   SIDE FLUE PLATE
Worcester part no. 87161071290
£6.77
5   REAR CASING PANEL
Worcester part no. 87161071280
£11.45
6   SIDE PANEL BLANKING PLATE
Worcester part no. 87161071330
£3.19
7   TOP FRONT PANEL
Worcester part no. 87161071540
£26.22
8   TOP PANEL ASSEMBLY 40/90 KITCHEN SYSTEM
Worcester part no. 87161116300
£98.71
9   BLANKING PLATE
Worcester part no. 87161071430
£11.03
10   QC40/30 SOCKET SEALING PLATE PAINTED
Worcester part no. 87161071610
£9.94
11   STEEL BALL STUD
Worcester part no. 87161072380
£3.78
12   STUD SPIRE SBV3 AFTER FD992
Worcester part no. 87161072390
£3.78
13   M4 FULL HEX Z/P M/S NUT
Worcester part no. 29150110050
£3.78
13 Part number 29150110100, NUT M10 NUT M10
Worcester part no. 29150110100
£2.95
14   40/95 INSULATION DOOR PANEL
Worcester part no. 87161071700
£16.00
15   40/95 INSULATION RH
Worcester part no. 87161071720
£19.88
16 Part number 87161071710, 40/95 INSULATION LH 40/95 INSULATION LH
Worcester part no. 87161071710
£24.76
17   60/80 INSULATION TOP/FRONT
Worcester part no. 87161071730
£10.41
18   SCREW NO8 X 1/2" PAN HEAD
Worcester part no. 29124010250
£3.78
19   SIDE PANEL BRACER
Worcester part no. 87161071570
£3.19
20   SCREW M4 X 10 CSK POZI
Worcester part no. 29123311200
£3.78
