VOKERA
VERVE REV 3 (07/2013) - (Hydraulics 2)
Appliance Code: 41-094-75 REV 3

Appliance Diagram

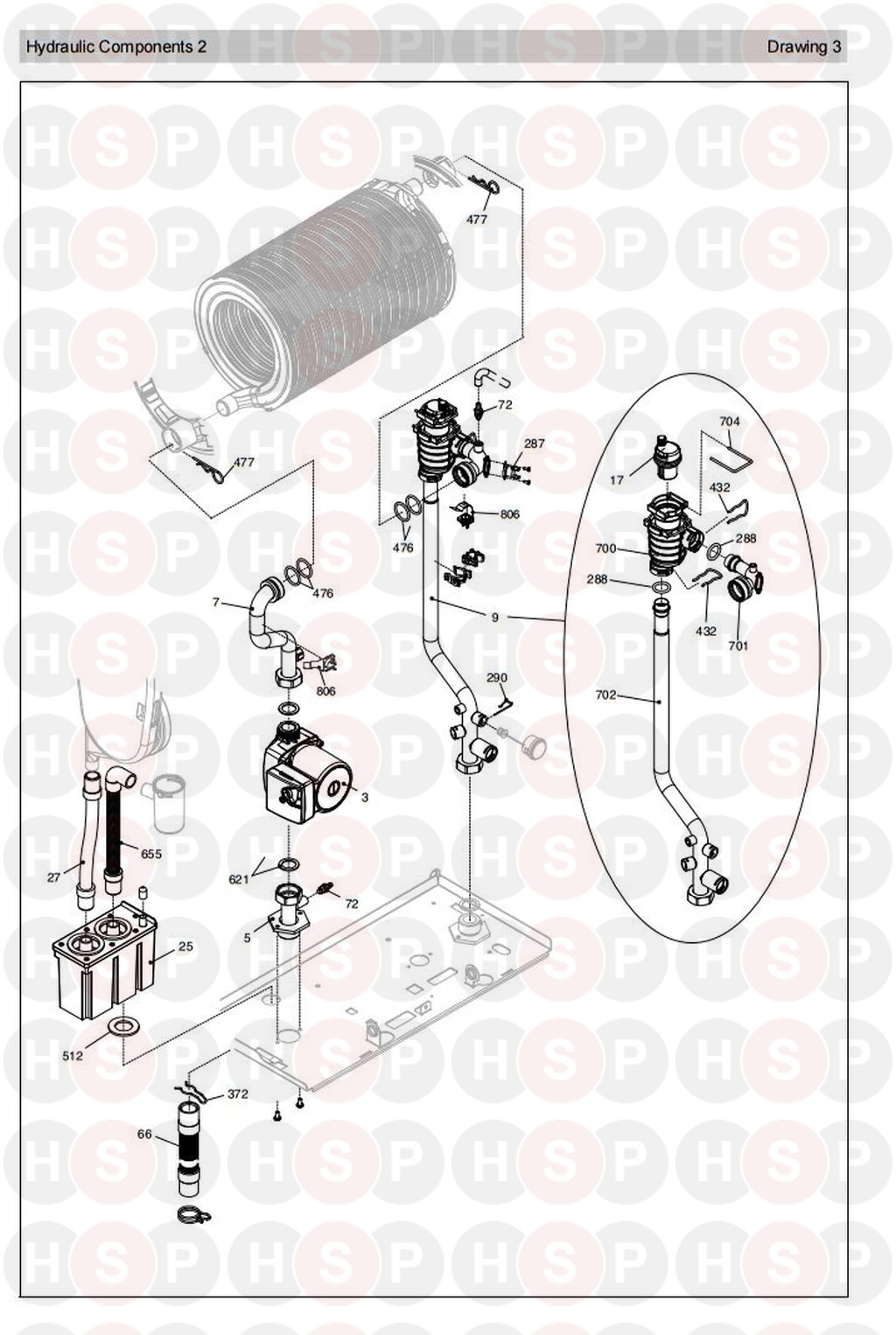

Hydraulics 2 diagram for Vokera Verve Rev 3 (07/2013)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   NOW USE 20101396 PUMP
Vokera part no. 20040990

3   ERP PUMP - REPLACED 20040990
Vokera part no. 20101396
£217.26
5   PIPE
Vokera part no. 20028732
£51.99
17 Part number 20019768, Auto air vent (Black) AUTO AIR VENT (BLACK)
Vokera part no. 20019768
£5.81
25 Part number 10028405, Siphon SIPHON
Vokera part no. 10028405
£53.85
27   FLEXIBLE PIPE
Vokera part no. 20028760
£6.01
66 Part number 10026272, Flexible Pipe FLEXIBLE PIPE
Vokera part no. 10026272
£8.31
72 Part number 10023235, VENT PLUG (up to serial no. 20099226O0950120) VENT PLUG (UP TO SERIAL NO. 20099226O0950120)
Vokera part no. 10023235
£4.35

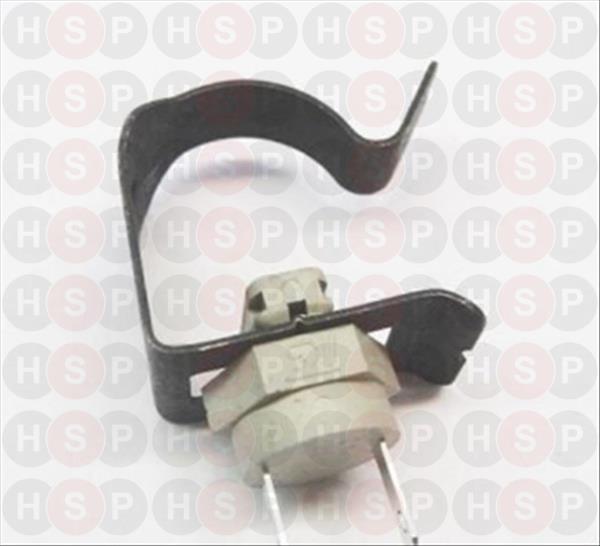

287 Part number 2258, High Limit Thermostat HIGH LIMIT THERMOSTAT
Vokera part no. 2258
£8.97
288 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

372   CLIP
Vokera part no. 2588
£0.83
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958
£0.98
476 Part number 10026324, O ring O RING
Vokera part no. 10026324
£2.85
477 Part number 10026269, Clip CLIP
Vokera part no. 10026269
£0.98
512 Part number 10027193, Washer WASHER
Vokera part no. 10027193
£1.11
621 Part number 5038, Washer WASHER
Vokera part no. 5038
£0.44
655   CONDENSING PIPE
Vokera part no. 20010331
£5.30
700 Part number 20032553, NOW USE 20019888 DEGASSER KIT NOW USE 20019888 DEGASSER KIT
Vokera part no. 20032553

700 Part number 20019888, Air Separator (UP TO SERIAL NO. 20097278PR05P005812) AIR SEPARATOR (UP TO SERIAL NO. 20097278PR05P005812)
Vokera part no. 20019888
£17.63
701   PIPE
Vokera part no. 20067816
£55.50
702   PIPE
Vokera part no. 20028734
£119.90
704 Part number 20019767, Locking Pin LOCKING PIN
Vokera part no. 20019767
£0.43
806 Part number 20067813, NTC Sensor NTC SENSOR
Vokera part no. 20067813
£7.49
