VOKERA
MYNUTE 20 VHE REV 15 (02/2017) - (Hydraulics 2)
Appliance Code: 41-094-70 REV 15

Appliance Diagram

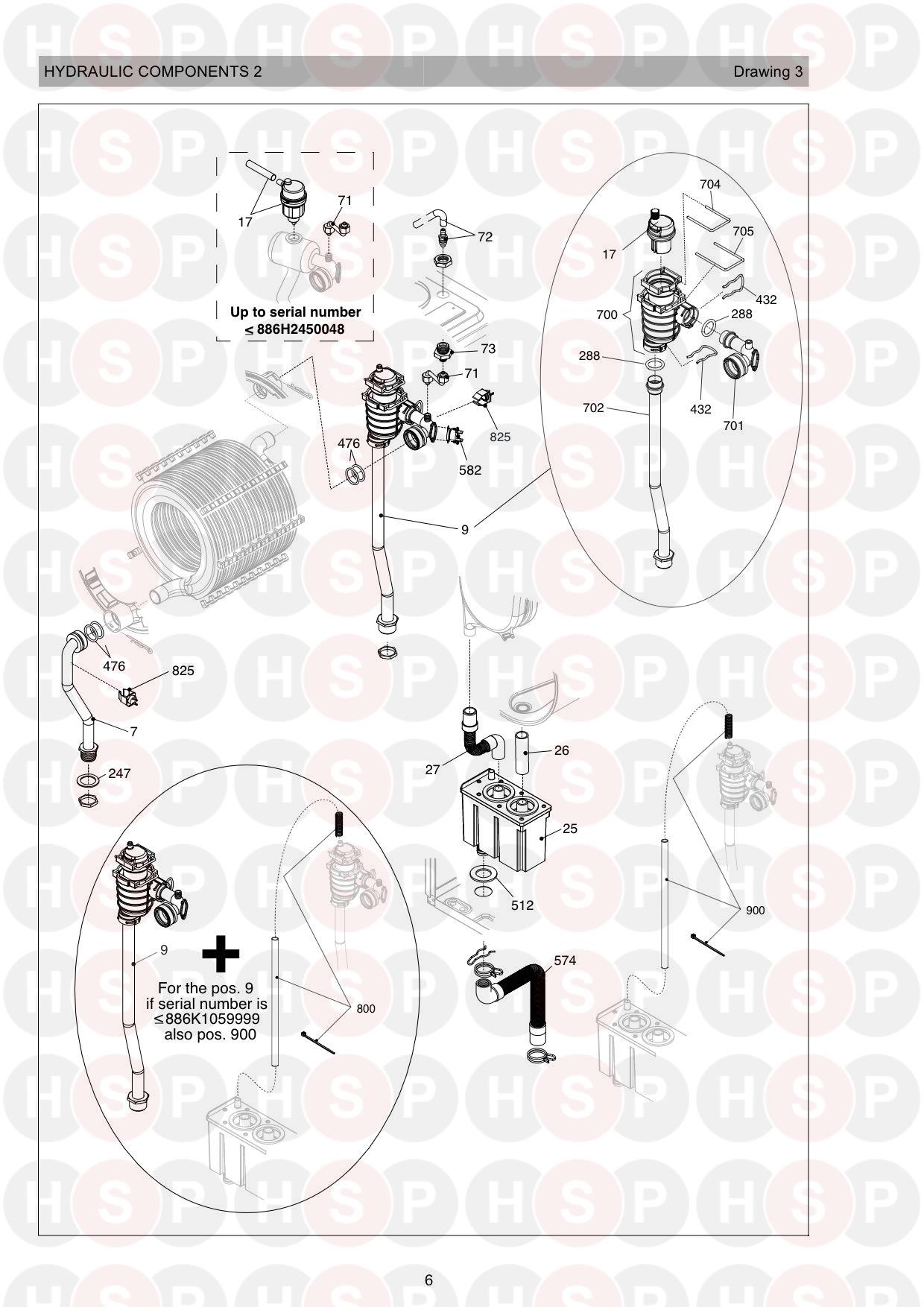

Hydraulics 2 diagram for Vokera Mynute 20 VHE Rev 15 (02/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

7 Part number 10026267, Pipe (Rep 10027317) PIPE (REP 10027317)
Vokera part no. 10026267		 £28.75
9 Part number 20020182, Flow Pipe Assembly (Rep 10029515) FLOW PIPE ASSEMBLY (REP 10029515)
Vokera part no. 20020182		 £74.22
17 Part number 10029306, Auto air vent (Brass) Replaced 100618 AUTO AIR VENT (BRASS) REPLACED 100618
Vokera part no. 10029306		 £19.88
17 Part number 20019768, Auto air vent (Black) AUTO AIR VENT (BLACK)
Vokera part no. 20019768		 £5.81
25 Part number 10028405, Siphon SIPHON
Vokera part no. 10028405		 £53.85
26 Part number 10028540, Condensing pipe CONDENSING PIPE
Vokera part no. 10028540		 £5.31
27 Part number 10027192, Flexible pipe FLEXIBLE PIPE
Vokera part no. 10027192		 £6.85
71   AIR BLEEDING CONNECTION PIPE
Vokera part no. 10028430		 £11.67
71   AIR BLEEDING CONNECTION PIPE
Vokera part no. 20020181		 £6.48
72 Part number 01005137, Venting Plugs Kit VENTING PLUGS KIT
Vokera part no. 01005137		 £9.76
73 Part number 10028431, COCK (up to serial no, 20099226O0950120) COCK (UP TO SERIAL NO, 20099226O0950120)
Vokera part no. 10028431		 £9.55
247 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203		 £0.21
288 Part number 6898, O Ring O RING
Vokera part no. 6898		 £1.03
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958		 £0.98
476 Part number 10026324, O ring O RING
Vokera part no. 10026324		 £2.85
512 Part number 10027193, Washer WASHER
Vokera part no. 10027193		 £1.11
541   PIPE
Vokera part no. 10028481		 £3.19
574 Part number 10028539, Condensing pipe CONDENSING PIPE
Vokera part no. 10028539		 £11.15
582 Part number 9695, Thermostat THERMOSTAT
Vokera part no. 9695		 £8.00
700 Part number 20032553, NOW USE 20019888 DEGASSER KIT NOW USE 20019888 DEGASSER KIT
Vokera part no. 20032553
700 Part number 20019888, Air Separator (UP TO SERIAL NO. 20097278PR05P005812) AIR SEPARATOR (UP TO SERIAL NO. 20097278PR05P005812)
Vokera part no. 20019888		 £17.63
701   PIPE
Vokera part no. 20019764		 £27.06
702   PIPE
Vokera part no. 20020180		 £16.87
704 Part number 20019767, Locking Pin LOCKING PIN
Vokera part no. 20019767		 £0.43
705   LOCKING PIN
Vokera part no. 20120828		 £0.51
825 Part number 20081926, Thermistor/NTC Replaced 20003819 and 20004365 THERMISTOR/NTC REPLACED 20003819 AND 20004365
Vokera part no. 20081926		 £16.76
900   DEGASSER CONNECTION ASSEMBLY
Vokera part no. 20096793		 £3.87
