Appliance Code: 32-810-72

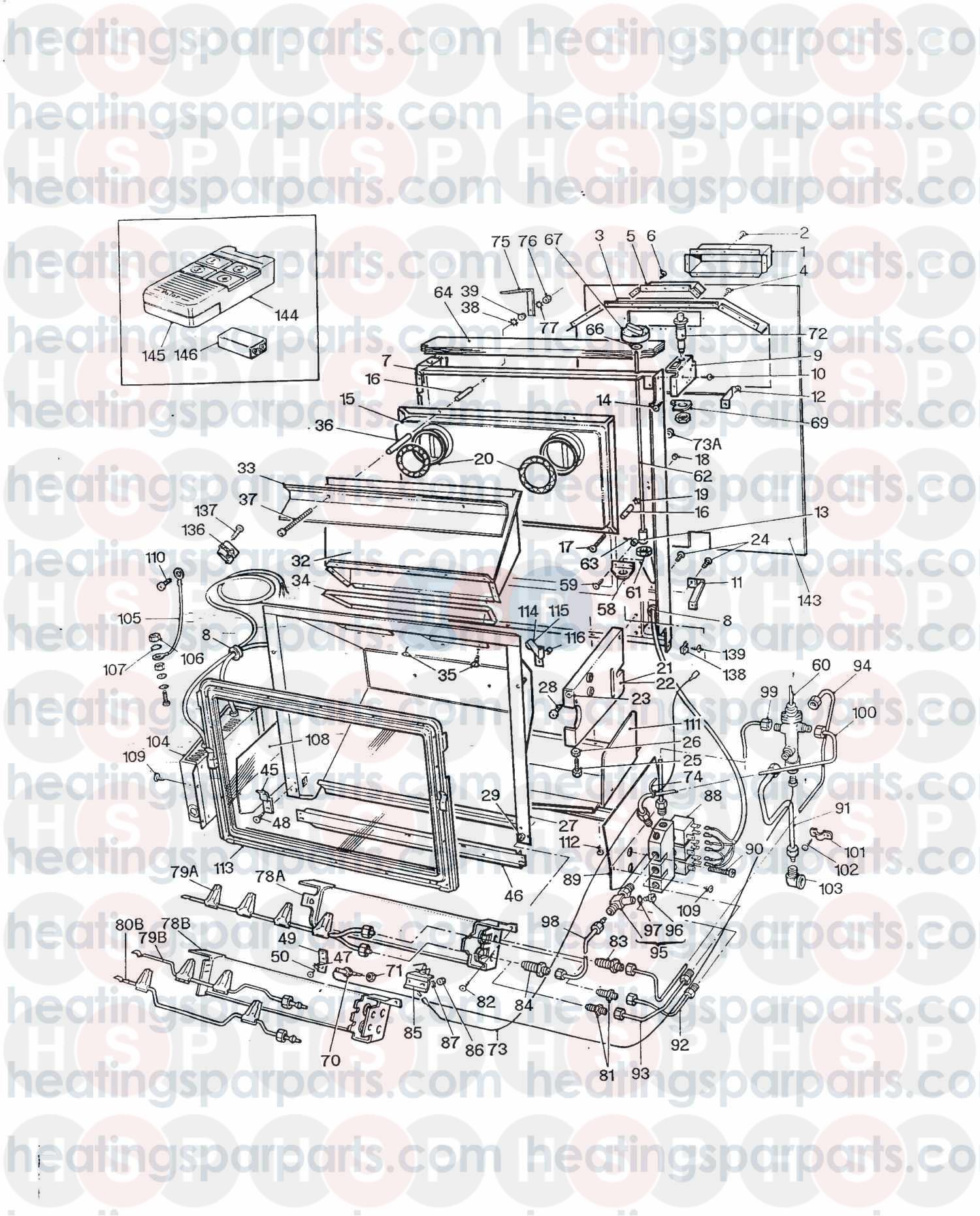

Appliance Diagram


Controls diagram for Valor Gas Fire Homeflame Electronic 487 BlackClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FLUE SPIGOT ASS
Valor Gas Fire part no. 0547019
3   OBSOLETE FLUE BAFFLE
Valor Gas Fire part no. 0547029
5   OBSOLETE FLUE DEFL/TOR
Valor Gas Fire part no. 0547039
7   OBSOLETE BACK PANEL ASSEMBLY
Valor Gas Fire part no. 0555959
8   OBSOLETE GROMMET
Valor Gas Fire part no. 0555969
9   OBSOLETE TOP LOCATION BRK
Valor Gas Fire part no. 0547739
10   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
11   OBSOLETE L/H BOTTOM SPACER
Valor Gas Fire part no. 0552119
13   OBSOLETE BANC-LOK FASTENER
Valor Gas Fire part no. 0547649
14   M4X10 TAPTITE SCREW
Valor Gas Fire part no. 0547909
15   OBSOLETE HEAT EXCHANGER P
Valor Gas Fire part no. 0547659
16   OBSOLETE SPACER
Valor Gas Fire part no. 0547059
17   OBSOLETE SCREW
Valor Gas Fire part no. 0533579
18 Part number 0532279, NUT NUT
Valor Gas Fire part no. 0532279
18 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Valor Gas Fire part no. 635506
20   OBSOLETE HEAT EXCHANGER GASKET
Valor Gas Fire part no. 0547919
21   OBSOLETE L/HAND FOOT & FASTENE
Valor Gas Fire part no. 0547119
22   OBSOLETE R/H FOOT ASSEMBLY
Valor Gas Fire part no. 0555979
23   OBSOLETE BANC-LOK FASTENER
Valor Gas Fire part no. 0547679
24   OBSOLETE SCREW
Valor Gas Fire part no. 0547689
25   OBSOLETE LEVELLING SCREW
Valor Gas Fire part no. 0535979
26   OBSOLETE NUT
Valor Gas Fire part no. 0532259
27   OBSOLETE RAD - BOX UNIT ASSY
Valor Gas Fire part no. 0547099
30   OBSOLETE L/HAND COKE GRID
Valor Gas Fire part no. 0547929
31   OBSOLETE R/HAND COKE GRID
Valor Gas Fire part no. 0547939
32   OBSOLETE COLLECTOR BOX PACK
Valor Gas Fire part no. 0550499
33   OBSOLETE COLLECTOR BOX BAFFLE
Valor Gas Fire part no. 0549959
34   OBSOLETE GASKET
Valor Gas Fire part no. 0547089
35   OBSOLETE NO8X1/2 SCREW
Valor Gas Fire part no. 0548369
36   OBSOLETE SPACER
Valor Gas Fire part no. 0547069
37   OBSOLETE SCREW
Valor Gas Fire part no. 0533869
40   OBSOLETE REAR TUBE SUPPORT
Valor Gas Fire part no. 0534009
41   OBSOLETE SCREW
Valor Gas Fire part no. 0534019
42   OBSOLETE BASE BOARD
Valor Gas Fire part no. 0547129
43   OBSOLETE L/HAND SIDE CHEEK
Valor Gas Fire part no. 0533989
44   OBSOLETE R/HAND SIDE CHEEK
Valor Gas Fire part no. 0533999
45   OBSOLETE GLASS FRAME BOTTOM RET
Valor Gas Fire part no. 0547709
46   OBSOLETE LOCATION BAR
Valor Gas Fire part no. 0534029
48   OBSOLETE SCREW
Valor Gas Fire part no. 0533329
49   OBSOLETE F.F.D.MOUNTING BRACKET
Valor Gas Fire part no. 0547149
51   OBSOLETE NO.1 LOG
Valor Gas Fire part no. 0547949
52   OBSOLETE NO.2 LOG
Valor Gas Fire part no. 0547189
53   OBSOLETE NO.3 LOG
Valor Gas Fire part no. 0547959
54   OBSOLETE NO.4 LOG
Valor Gas Fire part no. 0547209
55   OBSOLETE NO.5 LOG
Valor Gas Fire part no. 0547969
56   OBSOLETE NO.6 LOG
Valor Gas Fire part no. 0547979
57 Part number 0534039, OBSOLETE ROD-HEATER OBSOLETE ROD-HEATER
Valor Gas Fire part no. 0534039
58   OBSOLETE GAS TAP BRACKET
Valor Gas Fire part no. 0548019
60   OBSOLETE GAS TAP - COPRECI 18700/50
Valor Gas Fire part no. 0555989
61   LOCK NUT
Valor Gas Fire part no. 0502739
62   OBSOLETE CONTROL SPINDLE/ADAPT A
Valor Gas Fire part no. 0547999
63 Part number 0536949, SPLIT PIN SPLIT PIN
Valor Gas Fire part no. 0536949
64   OBSOLETE BACK PANEL INSUL/TR
Valor Gas Fire part no. 0547799
65   OBSOLETE KNOB INSUL/TR
Valor Gas Fire part no. 0547809
66   OBSOLETE WASHER
Valor Gas Fire part no. 0532529
67   OBSOLETE KNOB ADAPTER
Valor Gas Fire part no. 0547839
67   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0555999
69   OBSOLETE CONTROL INDIC/TR
Valor Gas Fire part no. 0547769
70 Part number 0547319, THERMOCOUPLE THERMOCOUPLE
Valor Gas Fire part no. 0547319
71 Part number 0547759, OBSOLETE LOCKNUT OBSOLETE LOCKNUT
Valor Gas Fire part no. 0547759
73 Part number 0547259, OBSOLETE ELECTRODE LEAD OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0547259
73   OBSOLETE GROMMET
Valor Gas Fire part no. 0512509
74   NOW USE 082061 TIE LEAD
Valor Gas Fire part no. 0547699
75   OBSOLETE INSULATION RET BRKT
Valor Gas Fire part no. 0547789
78   OBSOLETE MAIN-AEROMATIC BURNER
Valor Gas Fire part no. 0548029
78   OBSOLETE MAIN FURIGAS BURNER
Valor Gas Fire part no. 0548039
79   OBSOLETE FLAME-AEROMATIC BURNER
Valor Gas Fire part no. 0548049
79   OBSOLETE BURNER UNIT
Valor Gas Fire part no. 0548059
80   OBSOLETE BURNER UNIT
Valor Gas Fire part no. 0548069
81   OBSOLETE FLAME BUR. REST/TOR
Valor Gas Fire part no. 0548579
83   OBSOLETE UPPER CAT.77 SIZE 120
Valor Gas Fire part no. 0548079
84 Part number 0548089, LOWER CAT.77 SIZE 220 INJECTOR LOWER CAT.77 SIZE 220 INJECTOR
Valor Gas Fire part no. 0548089
85 Part number 0534149, OBSOLETE ELECTRODE ASS. OBSOLETE ELECTRODE ASS.
Valor Gas Fire part no. 0534149
88   OBSOLETE ELECTROMAGNETIC VALV
Valor Gas Fire part no. 0556009
90   OBSOLETE M5X30MM SCREW
Valor Gas Fire part no. 0556029
91   OBSOLETE INLET TO TAP PIPE
Valor Gas Fire part no. 0556039
92   OBSOLETE DEC.BRNR CENTRE/VALVE PIPE
Valor Gas Fire part no. 0556049
93   OBSOLETE DEC.BURNER OUTER/VALVE PIPE
Valor Gas Fire part no. 0556059
94   OBSOLETE MAIN BURNER UPPER/TAP PIPE
Valor Gas Fire part no. 0556069
95   OBSOLETE PRESS.TEST T/OLIVE/NU
Valor Gas Fire part no. 0556079
96   OBSOLETE PRESSURE TEST POINT SCR
Valor Gas Fire part no. 0516379
97   OBSOLETE WASHER
Valor Gas Fire part no. 0516389
98   OBSOLETE PIPE ASSEMBLY
Valor Gas Fire part no. 0556089
99   OBSOLETE TAP/E.M. VALVE TOP PI
Valor Gas Fire part no. 0556099
100   OBSOLETE TAP/E.M.VALVE FRONT P
Valor Gas Fire part no. 0556109
101   PIPE FIXING BRACKET
Valor Gas Fire part no. 0535639
103 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
104   OBSOLETE CORD GRIP
Valor Gas Fire part no. 0535719
104   OBSOLETE SCREW
Valor Gas Fire part no. 0535729
104   OBSOLETE RECEIVER BOX ASSEMBLY
Valor Gas Fire part no. 0556119
105   OBSOLETE EARTH RECEIVER-CASIN
Valor Gas Fire part no. 0556129
106   OBSOLETE NUT
Valor Gas Fire part no. 0532739
107   OBSOLETE WASHER
Valor Gas Fire part no. 0515509
108   OBSOLETE HEAT BAFFLE LOWER SIDE
Valor Gas Fire part no. 0556019
109   8X3/8 SCREW
Valor Gas Fire part no. 0511569
110   OBSOLETE SCREW
Valor Gas Fire part no. 0513349
111   OBSOLETE FLOOR PLATE & BAFFLE
Valor Gas Fire part no. 0548169
112 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
113   OBSOLETE GLASS FRAME ASSEMBLY
Valor Gas Fire part no. 0547409
114   OBSOLETE L/HAND GLASS RETAINER
Valor Gas Fire part no. 0547719
115   OBSOLETE R/HAND GLASS RETAINER
Valor Gas Fire part no. 0547729
116   OBSOLETE NUT
Valor Gas Fire part no. 0547749
117   OBSOLETE BACK CASING
Valor Gas Fire part no. 0547439
117   OBSOLETE BACK CASING
Valor Gas Fire part no. 0555689
118   OBSOLETE INDICATOR
Valor Gas Fire part no. 0530939
119   OBSOLETE HOOD ASSEMBLY - BROWN
Valor Gas Fire part no. 0555699
119   OBSOLETE HOOD PACK - BLACK
Valor Gas Fire part no. 0547449
120   OBSOLETE HOOD TOP H/SHIELD
Valor Gas Fire part no. 0547459
122   OBSOLETE HOOD MOTIF
Valor Gas Fire part no. 0547469
123   FIX
Valor Gas Fire part no. 0534419
125   OBSOLETE R/HAND SIDE PANEL
Valor Gas Fire part no. 0547489
125   OBSOLETE R/HAND SIDE PANEL
Valor Gas Fire part no. 0555719
126   OBSOLETE L/HAND SIDE PANEL
Valor Gas Fire part no. 0555709
126   OBSOLETE SIDE PANEL - LH - BLACK
Valor Gas Fire part no. 0547852
128   OBSOLETE H/SHIELD
Valor Gas Fire part no. 0547509
130   OBSOLETE ANTIQUE COPPER HEARTH ASSY
Valor Gas Fire part no. 0558049
130   OBSOLETE HEARTH ASSEMBLY
Valor Gas Fire part no. 0558039
131   OBSOLETE BRASS DOG
Valor Gas Fire part no. 0547529
132   SCREW
Valor Gas Fire part no. 0534719
135   OBSOLETE FRONT(WINDOW)TRIM ASSEMBLY
Valor Gas Fire part no. 0547419
136   OBSOLETE THERMO. PHIAL KK3 AN
Valor Gas Fire part no. 0513589
137   OBSOLETE NO8X3/4 RD POZI MS ZP
Valor Gas Fire part no. 0536969
138   OBSOLETE SPIRE FIX
Valor Gas Fire part no. 0511329
140   OBSOLETE IRON SOCKET
Valor Gas Fire part no. 0547579
141   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0548229
142   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0548239
143   OBSOLETE CLOSURE PLATE ASSEMBLY
Valor Gas Fire part no. 0549969
144   OBSOLETE HAND CONTROL UNIT ASS
Valor Gas Fire part no. 0556139
145   OBSOLETE CONTROL BAT.COVE
Valor Gas Fire part no. 0556149
146 Part number 0553389, 9 VOLT PP35 BATTERY 9 VOLT PP35 BATTERY
Valor Gas Fire part no. 0553389
147   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0556169
148   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0556179


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
