VAILLANT
VWL 55/2 A 230V 2014 ONWARDS - (12 Electrics)
Appliance Code: 0010014566

Appliance Diagram


12 Electrics diagram for Vaillant VWL 55/2 A 230V 2014 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   ELECTRONIC CONTROL, 5K 1P
Vaillant part no. 0020192761		 £913.46
2 Part number 0020175819, Handle HANDLE
Vaillant part no. 0020175819		 £6.53
3 Part number 0020175821, Wiring harness, supply compressor WIRING HARNESS, SUPPLY COMPRESSOR
Vaillant part no. 0020175821		 £18.77
4 Part number 0020175822, Wiring harness, modbus inverter WIRING HARNESS, MODBUS INVERTER
Vaillant part no. 0020175822		 £30.89
5 Part number 0020192801, Wiring harness, Supply inverter WIRING HARNESS, SUPPLY INVERTER
Vaillant part no. 0020192801		 £59.09
7 Part number 0020175828, Electronics, EMC filter 5-8kW ELECTRONICS, EMC FILTER 5-8KW
Vaillant part no. 0020175828		 £138.45
8 Part number 0020192765, Transformer, 5kW 1P TRANSFORMER, 5KW 1P
Vaillant part no. 0020192765
9 Part number 0020175835, Fuse FUSE
Vaillant part no. 0020175835		 £7.83
10   CYLINDER SCREW (PK10)
Vaillant part no. 105833		 £6.66
11 Part number 0020175836, Electronics, EMC filter 5-8-11kW ELECTRONICS, EMC FILTER 5-8-11KW
Vaillant part no. 0020175836		 £333.47
12 Part number 0020176086, Wiring harness WIRING HARNESS
Vaillant part no. 0020176086		 £8.31

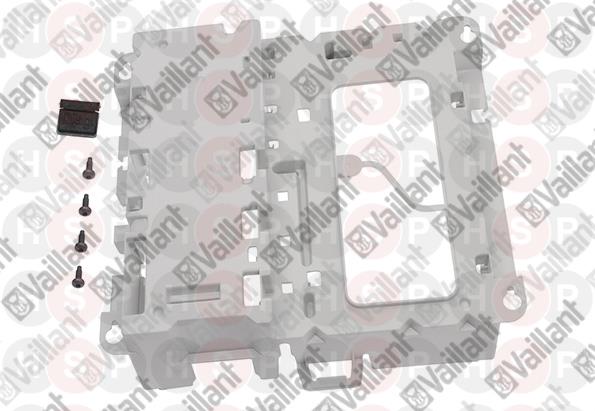

13 Part number 0020175837, Control box CONTROL BOX
Vaillant part no. 0020175837		 £30.50
14 Part number 0020175838, Printed circuit board, FMU PRINTED CIRCUIT BOARD, FMU
Vaillant part no. 0020175838
15   PRINTED CIRCUIT BOARD, HMU
Vaillant part no. 0020222694		 £124.81
16 Part number 0020175840, Wiring harness, 24V Ebox WIRING HARNESS, 24V EBOX
Vaillant part no. 0020175840		 £6.71
17 Part number 0020192803, Wiring harness, 230V Ebox WIRING HARNESS, 230V EBOX
Vaillant part no. 0020192803		 £27.74
18 Part number 0020175842, Printed circuit board, Installer PRINTED CIRCUIT BOARD, INSTALLER
Vaillant part no. 0020175842		 £75.39
19 Part number 0020192770, Wiring harness, 230V WIRING HARNESS, 230V
Vaillant part no. 0020192770		 £37.09
20 Part number 0020192771, Wiring harness, 24V WIRING HARNESS, 24V
Vaillant part no. 0020192771		 £131.71
21 Part number 0020192772, Wiring harness, reset WIRING HARNESS, RESET
Vaillant part no. 0020192772		 £6.71
22 Part number 0020175848, Wiring harness, diagnostic WIRING HARNESS, DIAGNOSTIC
Vaillant part no. 0020175848		 £6.53
23 Part number 0020175849, Cover COVER
Vaillant part no. 0020175849		 £26.17
24 Part number 0020175850, Cable bushing CABLE BUSHING
Vaillant part no. 0020175850		 £6.71
25 Part number 0020175810, Screw (PK10) SCREW (PK10)
Vaillant part no. 0020175810		 £6.53
