VAILLANT
VWL 155/2 A 230V 2014 ONWARDS - (12 Electrics)
Appliance Code: 0010014567

Appliance Diagram


12 Electrics diagram for Vaillant VWL 155/2 A 230V 2014 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   ELECTRONIC CONTROL, 15K 1P
Vaillant part no. 0020192762		 £1,845.96
2 Part number 0020175819, Handle HANDLE
Vaillant part no. 0020175819		 £6.53
3 Part number 0020192773, Wiring harness, compressor WIRING HARNESS, COMPRESSOR
Vaillant part no. 0020192773		 £49.19
4 Part number 0020192769, Wiring harness, modbus Inverter WIRING HARNESS, MODBUS INVERTER
Vaillant part no. 0020192769		 £45.57
5 Part number 0020192768, Wiring harness, Supply inverter WIRING HARNESS, SUPPLY INVERTER
Vaillant part no. 0020192768		 £67.92
6 Part number 0020175826, Capacitor CAPACITOR
Vaillant part no. 0020175826		 £140.72
7 Part number 0020175829, Electronics, EMC filter 11-15kW ELECTRONICS, EMC FILTER 11-15KW
Vaillant part no. 0020175829		 £329.00
8 Part number 0020175831, Transformer, 11-15kW 1p TRANSFORMER, 11-15KW 1P
Vaillant part no. 0020175831		 £158.90
9 Part number 0020175834, Fuse FUSE
Vaillant part no. 0020175834		 £9.64
10   CYLINDER SCREW (PK10)
Vaillant part no. 105833		 £6.66
11 Part number 0020192767, Electronics, EMC filter 15kW1p ELECTRONICS, EMC FILTER 15KW1P
Vaillant part no. 0020192767		 £260.48
12 Part number 0020176086, Wiring harness WIRING HARNESS
Vaillant part no. 0020176086		 £8.31
13 Part number 0020175837, Control box CONTROL BOX
Vaillant part no. 0020175837		 £30.50
14 Part number 0020175838, Printed circuit board, FMU PRINTED CIRCUIT BOARD, FMU
Vaillant part no. 0020175838
15   PRINTED CIRCUIT BOARD, HMU
Vaillant part no. 0020222694		 £124.81
16 Part number 0020192805, Wiring harness, 24V Ebox WIRING HARNESS, 24V EBOX
Vaillant part no. 0020192805		 £26.27
17 Part number 0020192804, Wiring harness, 230V Ebox WIRING HARNESS, 230V EBOX
Vaillant part no. 0020192804		 £38.67
18 Part number 0020175842, Printed circuit board, Installer PRINTED CIRCUIT BOARD, INSTALLER
Vaillant part no. 0020175842		 £75.39
19 Part number 0020192774, Wiring harness, 230V WIRING HARNESS, 230V
Vaillant part no. 0020192774		 £39.65
20 Part number 0020192775, Wiring harness, 24V WIRING HARNESS, 24V
Vaillant part no. 0020192775		 £146.66
21 Part number 0020192776, Wiring harness, reset 15k1P WIRING HARNESS, RESET 15K1P
Vaillant part no. 0020192776		 £6.71
21 Part number 0020209948, Wiring harness, reset (without limiter) WIRING HARNESS, RESET (WITHOUT LIMITER)
Vaillant part no. 0020209948		 £6.53
22 Part number 0020175848, Wiring harness, diagnostic WIRING HARNESS, DIAGNOSTIC
Vaillant part no. 0020175848		 £6.53
23 Part number 0020175849, Cover COVER
Vaillant part no. 0020175849		 £26.17
24 Part number 0020175850, Cable bushing CABLE BUSHING
Vaillant part no. 0020175850		 £6.71
25 Part number 0020175810, Screw (PK10) SCREW (PK10)
Vaillant part no. 0020175810		 £6.53

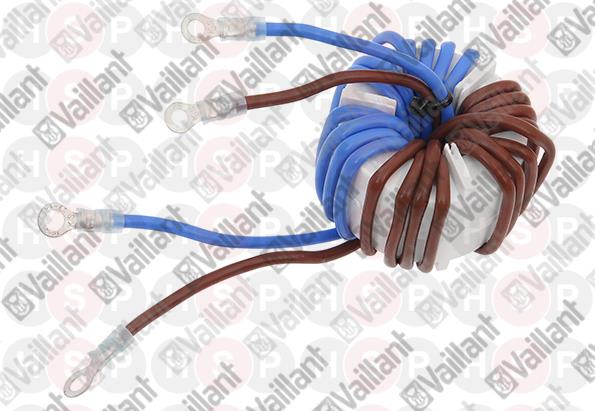

26 Part number 0020192802, Wiring harness, ECM filter choke WIRING HARNESS, ECM FILTER CHOKE
Vaillant part no. 0020192802		 £28.24
