MAG 125/11 XZ 1997-1999 - (04 Burner)
Appliance Code: 125/11 XZ

Appliance Diagram


04 Burner diagram for Vaillant Mag 125/11 XZ 1997-1999Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BURNER CHAMBER GROUP
Vaillant part no. 042399

2   OBSOLETE BURNER SUPPORT
Vaillant part no. 126721

3 Part number 247062, burner nozzle BURNER NOZZLE
Vaillant part no. 247062
£3.91
4   PACKING RING
Vaillant part no. 980291
£3.91
5   THROTTLE JET 1 X 4.00
Vaillant part no. 042569
£3.91
6 Part number 981168, OBSOLETE packing ring (set of 10) OBSOLETE PACKING RING (SET OF 10)
Vaillant part no. 981168

7   PILOT BURNER
Vaillant part no. 042172
£12.72
8 Part number 060018, screw SCREW
Vaillant part no. 060018
£6.66
9 Part number 151619, air filter AIR FILTER
Vaillant part no. 151619

10 Part number 040550, pilot burner nozzle (D= 0.18 mm) PILOT BURNER NOZZLE (D= 0.18 MM)
Vaillant part no. 040550
£6.66
11 Part number 981145, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981145
£6.66
12 Part number 0020107719, OBSOLETE ELECTRODE OBSOLETE ELECTRODE
Vaillant part no. 0020107719

13 Part number 195964, strip STRIP
Vaillant part no. 195964

14   OBSOLETE PILOT BURNER TUBE, CPL.
Vaillant part no. 043996

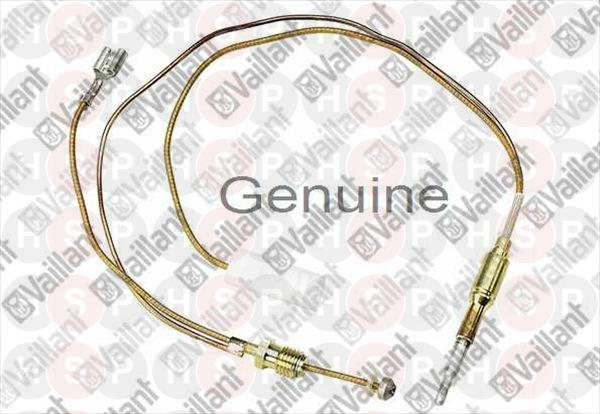

15 Part number 171175, OBSOLETE thermo-couple OBSOLETE THERMO-COUPLE
Vaillant part no. 171175

16 Part number 101104, OBSOLETE temperature limiter OBSOLETE TEMPERATURE LIMITER
Vaillant part no. 101104

17 Part number 114885, hexagonal nut HEXAGONAL NUT
Vaillant part no. 114885
£6.66
