VAILLANT
FLEXOTHERM VWF 197/4 2015 ONWARDS - (06 Refrigerant Circuit)
Appliance Code: 0010016697

Appliance Diagram


06 Refrigerant Circuit diagram for Vaillant Flexotherm VWF 197/4 2015 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

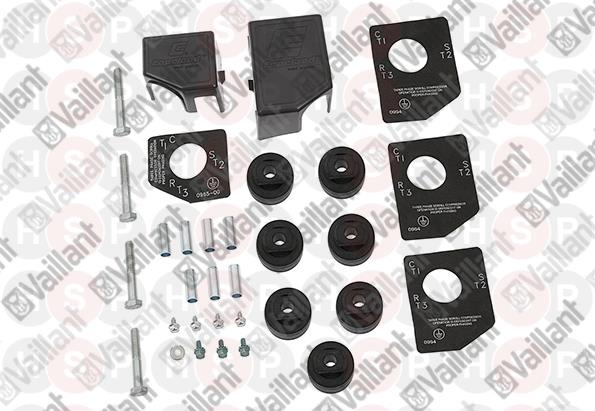

1 Part number 0020210650, Fastening kit, compressor FASTENING KIT, COMPRESSOR
Vaillant part no. 0020210650		 £126.03
1   COMPRESSOR
Vaillant part no. 0020210666		 £1,570.33
1 Part number 0020223551, Insulation, compressor outlet, kit INSULATION, COMPRESSOR OUTLET, KIT
Vaillant part no. 0020223551		 £48.24

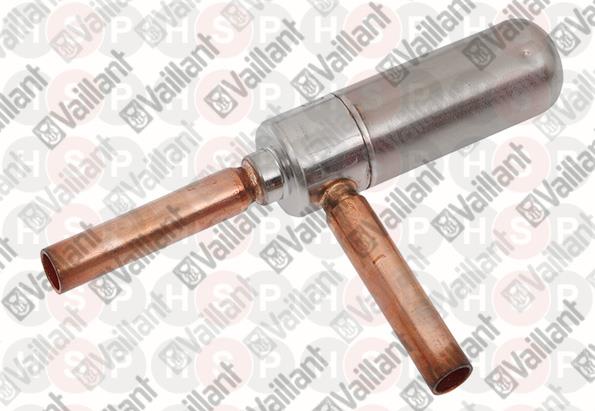

2 Part number 0020222853, Valve VALVE
Vaillant part no. 0020222853		 £7.07
3   CONDENSER
Vaillant part no. 0020222900		 £611.14
4   EVAPORATOR
Vaillant part no. 0020222905		 £668.85
5 Part number 0020222852, Filter dryer, 11-15-19kW FILTER DRYER, 11-15-19KW
Vaillant part no. 0020222852		 £102.34
5 Part number 560655, Filter (filter dryer) 6-10 kW FILTER (FILTER DRYER) 6-10 KW
Vaillant part no. 560655		 £80.61
6A Part number 0020210633, Expansion valve, electronic, ETS 6-14 EXPANSION VALVE, ELECTRONIC, ETS 6-14
Vaillant part no. 0020210633		 £51.31
6B Part number 0020210635, Expansion valve, electronic, ETS 6-25 EXPANSION VALVE, ELECTRONIC, ETS 6-25
Vaillant part no. 0020210635		 £68.99
7 Part number 0020210696, Switch SWITCH
Vaillant part no. 0020210696		 £41.29
8 Part number 0020210697, Sensor, high pressure SENSOR, HIGH PRESSURE
Vaillant part no. 0020210697		 £57.51
9 Part number 0020210685, Switch, high temperature SWITCH, HIGH TEMPERATURE
Vaillant part no. 0020210685		 £39.47
10 Part number 0020210698, Sensor, low pressure SENSOR, LOW PRESSURE
Vaillant part no. 0020210698		 £57.51
11 Part number 0020222907, Heat exchanger HEAT EXCHANGER
Vaillant part no. 0020222907		 £192.85
12 Part number 0020222895, Valve, 19 kW VALVE, 19 KW
Vaillant part no. 0020222895		 £409.49
13 Part number 0020210672, Coil COIL
Vaillant part no. 0020210672		 £27.56
14 Part number 0020210673, Coil COIL
Vaillant part no. 0020210673		 £32.75
15 Part number 0020222891, Insulation, pipes, kit INSULATION, PIPES, KIT
Vaillant part no. 0020222891		 £38.74
16 Part number 0020210682, Sensor, temperature SENSOR, TEMPERATURE
Vaillant part no. 0020210682		 £13.49
17 Part number 0020210695, Wiring harness,compressor, 11kW230/15-19 WIRING HARNESS,COMPRESSOR, 11KW230/15-19
Vaillant part no. 0020210695		 £19.05
18 Part number 0020210655, Wiring harness WIRING HARNESS
Vaillant part no. 0020210655		 £107.78
19 Part number 0020210649, Insulation INSULATION
Vaillant part no. 0020210649		 £115.30
20 Part number 0020222869, Insulation, evaporator, kit INSULATION, EVAPORATOR, KIT
Vaillant part no. 0020222869		 £68.09
21 Part number 0020210675, Damper (PK4) DAMPER (PK4)
Vaillant part no. 0020210675		 £19.25
22 Part number 114809, Hexagon nut, 530128VZ8 HEXAGON NUT, 530128VZ8
Vaillant part no. 114809		 £5.32
23 Part number 0020222880, Filter, mesh filter 1/4 FILTER, MESH FILTER 1/4
Vaillant part no. 0020222880		 £10.40
