VAILLANT
FLEXOTHERM VWF 197/4 2015 ONWARDS - (08 Hydraulic Circuit)
Appliance Code: 0010016697

Appliance Diagram


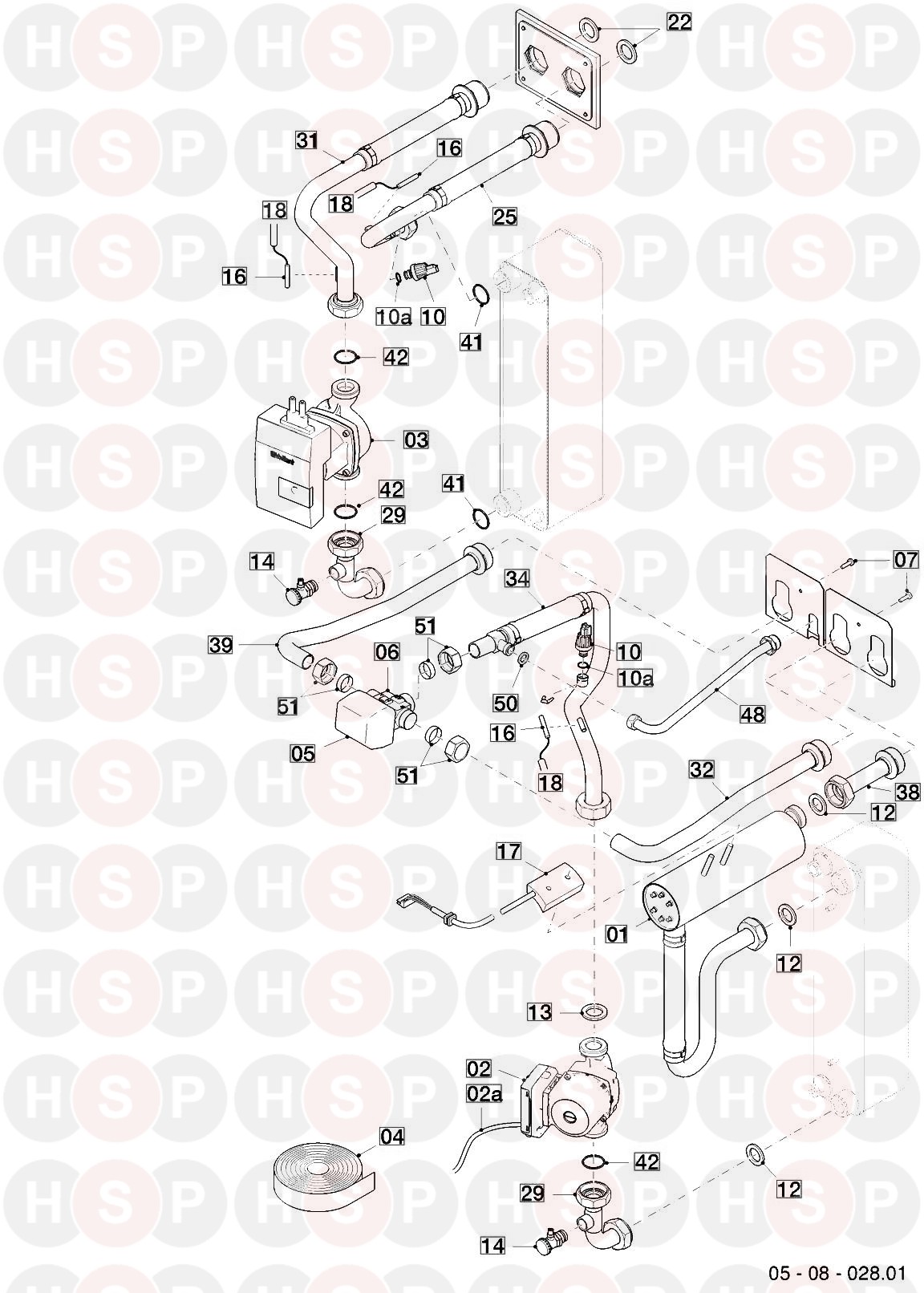

08 Hydraulic Circuit diagram for Vaillant Flexotherm VWF 197/4 2015 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020210693, Heating element HEATING ELEMENT
Vaillant part no. 0020210693		 £283.74
2 Part number 0020222888, Wiring harness, HC pump 15-19kW WIRING HARNESS, HC PUMP 15-19KW
Vaillant part no. 0020222888		 £19.25
2 Part number 0020222890, Pump, heating circuit PUMP, HEATING CIRCUIT
Vaillant part no. 0020222890		 £405.42
3 Part number 0020222910, Pump, brine circuit PUMP, BRINE CIRCUIT
Vaillant part no. 0020222910		 £781.80
4 Part number 0020066201, Insulation, 50mm x 15m, Armaflex INSULATION, 50MM X 15M, ARMAFLEX
Vaillant part no. 0020066201		 £65.76
5 Part number 0020038758, Motor, actuator MOTOR, ACTUATOR
Vaillant part no. 0020038758		 £178.31

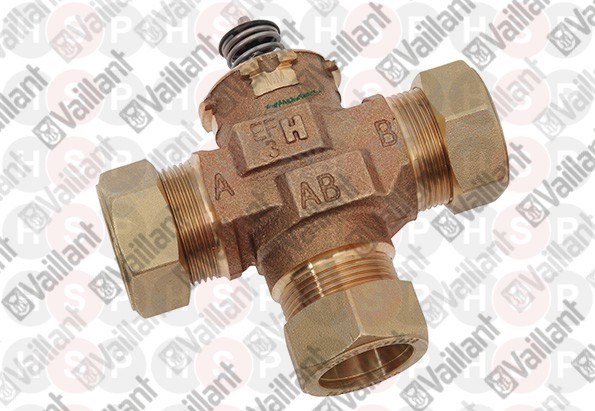

6 Part number 0020032008, Valve VALVE
Vaillant part no. 0020032008		 £99.14
7 Part number 193597, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 193597		 £6.69
10 Part number 0020059717, sensor (water pressure) SENSOR (WATER PRESSURE)
Vaillant part no. 0020059717		 £25.74
10 Part number 981377, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981377		 £15.62
12 Part number 0020032001, Sealing ring, 1 1/4 (PK3) SEALING RING, 1 1/4 (PK3)
Vaillant part no. 0020032001		 £6.66
13 Part number 0020038759, Sealing ring 1 1/2 (PK4) SEALING RING 1 1/2 (PK4)
Vaillant part no. 0020038759		 £7.05
14 Part number 106350, drain cock DRAIN COCK
Vaillant part no. 106350		 £7.61
16 Part number 0020210682, Sensor, temperature SENSOR, TEMPERATURE
Vaillant part no. 0020210682		 £13.49
17 Part number 0020210686, Temperature limiter, BUH TEMPERATURE LIMITER, BUH
Vaillant part no. 0020210686		 £64.47
18 Part number 0020210655, Wiring harness WIRING HARNESS
Vaillant part no. 0020210655		 £107.78
22 Part number 0020028112, Washer WASHER
Vaillant part no. 0020028112		 £25.09

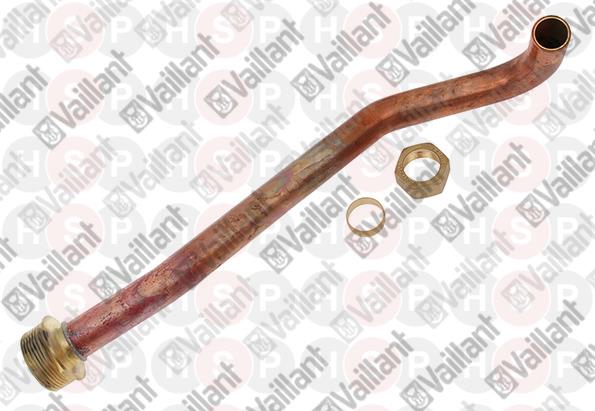

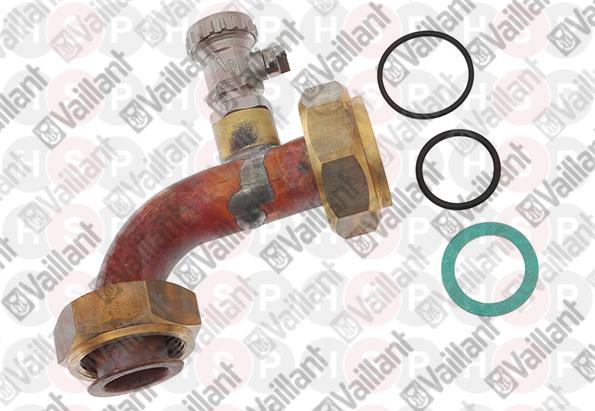

25 Part number 0020222870, Tube TUBE
Vaillant part no. 0020222870		 £65.77
29 Part number 0020222872, Tube TUBE
Vaillant part no. 0020222872		 £51.30
31 Part number 0020222871, Tube TUBE
Vaillant part no. 0020222871		 £65.77
32 Part number 0020222873, Tube TUBE
Vaillant part no. 0020222873		 £35.21
34 Part number 0020222876, Tube TUBE
Vaillant part no. 0020222876		 £76.04
38 Part number 0020222878, Tube TUBE
Vaillant part no. 0020222878		 £31.83
39 Part number 0020222874, Tube TUBE
Vaillant part no. 0020222874		 £35.21
41 Part number 981311, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981311		 £7.05
42 Part number 981272, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981272		 £6.66
48 Part number 0020222877, Tube TUBE
Vaillant part no. 0020222877		 £13.46
50 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
51 Part number 0020040506, Fitting FITTING
Vaillant part no. 0020040506		 £34.31
