GRANT OIL
COMFORT STI 125,
COMFORT STI 125 PROTECH,
COMFORT STI 150 EDITION 1,
COMFORT STI 150 PROTECH,
COMFORT STI 210 EDITION 1,
COMFORT STI 210 PROTECH,
COMBI MKII,
COMBI V3 MAX,
RIELLO COMBUSTION,
COMBITEK F23E - (NO Diagram)
Appliance Code: COMBI V3 MAX

Appliance Diagram


Sorry, a diagram could not be found for this appliance.

1 Part number MPCBS46, Overheat Cut-Out Thermostat Neon (Red) OVERHEAT CUT-OUT THERMOSTAT NEON (RED)
Grant Oil part no. MPCBS46		 £9.03

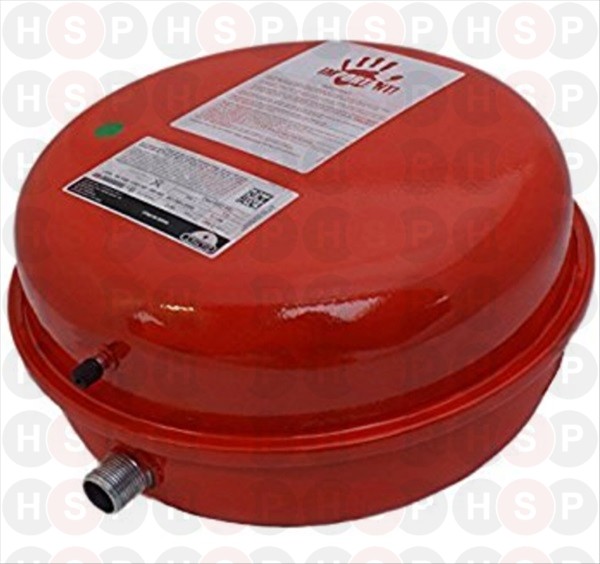

2 Part number MPSS01, 12 LITRE EXPANSION VESSEL 12 LITRE EXPANSION VESSEL
Grant Oil part no. MPSS01		 £74.95
3 Part number MPCBS20, DIVERTER VALVE DIVERTER VALVE
Grant Oil part no. MPCBS20		 £189.83

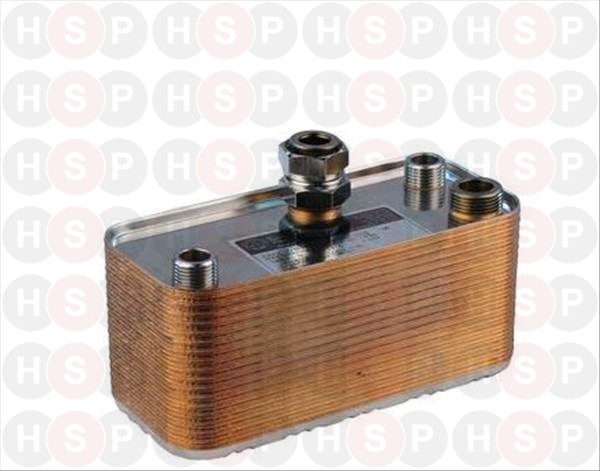

4 Part number MPCBS53, Plate Heat Exchanger (35 plate) PLATE HEAT EXCHANGER (35 PLATE)
Grant Oil part no. MPCBS53		 £184.34

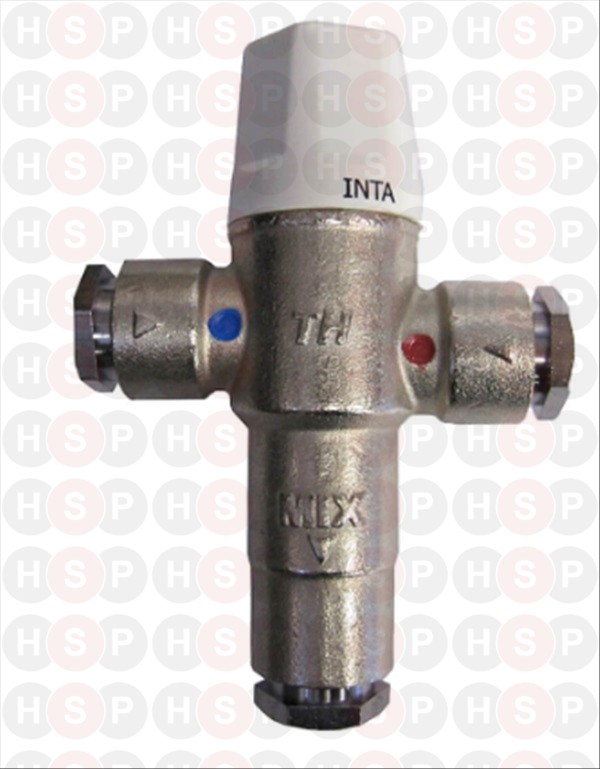

5 Part number MPCBS22, THERMOSTATIC MIXING VALVE THERMOSTATIC MIXING VALVE
Grant Oil part no. MPCBS22		 £63.60
6 Part number MPCBS23, CIRCULATING PUMP CIRCULATING PUMP
Grant Oil part no. MPCBS23

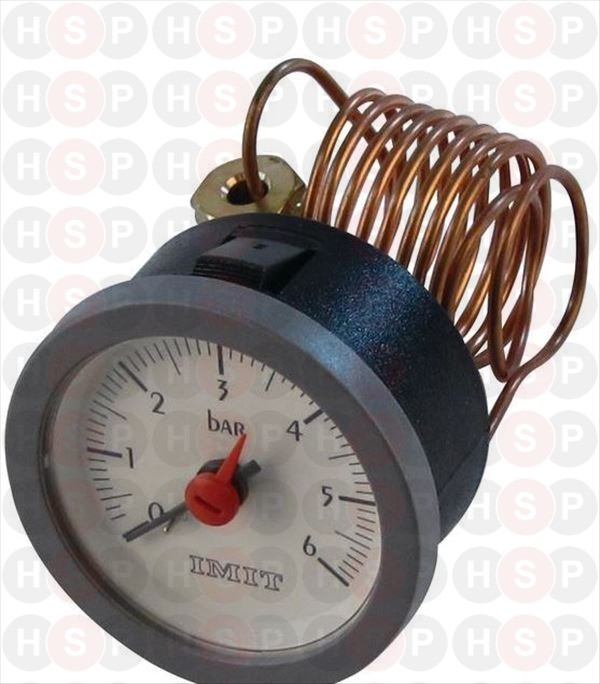

7 Part number MPCBS24, Water pressure Gauge WATER PRESSURE GAUGE
Grant Oil part no. MPCBS24		 £20.86
8 Part number MPCBS50, NOW USE MPCBS124 2.5 bar pressure Relief Valve NOW USE MPCBS124 2.5 BAR PRESSURE RELIEF VALVE
Grant Oil part no. MPCBS50

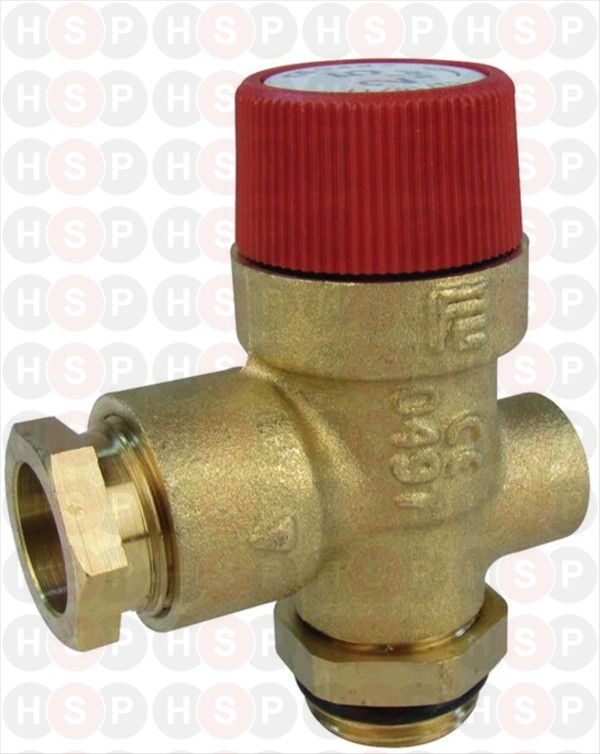

8   3BAR PRESSURE RELIEF VALVE 3PORT
Grant Oil part no. MPCBS124		 £24.38
9 Part number MPCBS47, 2.5 bar pressure Relief Valve 2.5 BAR PRESSURE RELIEF VALVE
Grant Oil part no. MPCBS47		 £25.71
10 Part number MPCBS29, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Grant Oil part no. MPCBS29		 £15.58
11 Part number MPCBS79, Expansion Vessel Flexi Hose EXPANSION VESSEL FLEXI HOSE
Grant Oil part no. MPCBS79		 £17.94
12 Part number MPCBS54, ELECTRONIC TEMPERATURE CONTROL c/w SENSOR ELECTRONIC TEMPERATURE CONTROL C/W SENSOR
Grant Oil part no. MPCBS54		 £74.69
13 Part number MPCBS82X, NOW USE MPCBS97 THERMISTOR SENSOR (FOR PCB) NOW USE MPCBS97 THERMISTOR SENSOR (FOR PCB)
Grant Oil part no. MPCBS82X

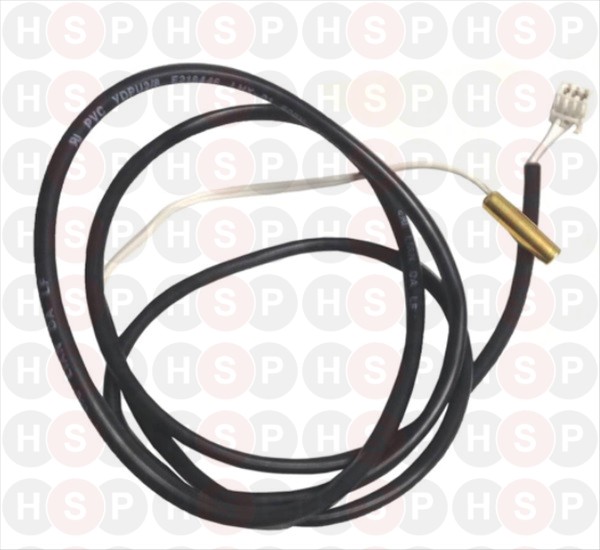

13   CENTRAL HEATING SENSOR FOR PCB (BLACK)
Grant Oil part no. MPCBS97		 £54.58
14   TEMPERATURE CONTROL PCB (NO SENSOR)
Grant Oil part no. MPCBS97X		 £98.18
14 Part number MPCBS82, NOW USE MPCBS97X TEMPERATURE CONTROL PCB NOW USE MPCBS97X TEMPERATURE CONTROL PCB
Grant Oil part no. MPCBS82
15 Part number MPCBS33, DIAPHRAGM KIT DIAPHRAGM KIT
Grant Oil part no. MPCBS33		 £50.82
16 Part number MPCBS41, MICROSWITCH ASSEMBLY MICROSWITCH ASSEMBLY
Grant Oil part no. MPCBS41		 £25.41
17 Part number TPBS33, HIGH LIMIT THERMOSTAT HIGH LIMIT THERMOSTAT
Grant Oil part no. TPBS33		 £45.00
18 Part number EFBS22, Heating/Rocker Switch (W24 x H32 mm) HEATING/ROCKER SWITCH (W24 X H32 MM)
Grant Oil part no. EFBS22		 £10.97
19 Part number EFBS10, THERMOSTAT POCKET THERMOSTAT POCKET
Grant Oil part no. EFBS10		 £20.62

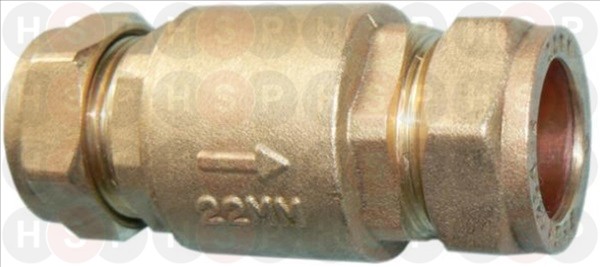

20 Part number MPCBS26, Non-Return Check Valve (22mm) NON-RETURN CHECK VALVE (22MM)
Grant Oil part no. MPCBS26		 £19.16
22 Part number MPCBS30, FILLING LOOP KIT WITH VALVES FILLING LOOP KIT WITH VALVES
Grant Oil part no. MPCBS30		 £48.64
23 Part number EFBS14, Nut and Washer Set Cleaning Door NUT AND WASHER SET CLEANING DOOR
Grant Oil part no. EFBS14		 £6.93
24 Part number EFBS20X, Access/Combustion Door ACCESS/COMBUSTION DOOR
Grant Oil part no. EFBS20X
25 Part number TPBS23, ACCESS DOOR GASKET 40/90 ACCESS DOOR GASKET 40/90
Grant Oil part no. TPBS23		 £49.53
26 Part number EFBS19, On/Off Double Pole Switch (Neon, 4 Terminal) ON/OFF DOUBLE POLE SWITCH (NEON, 4 TERMINAL)
Grant Oil part no. EFBS19		 £15.59
27 Part number MPCBS49, Single Pole Low pressure Switch SINGLE POLE LOW PRESSURE SWITCH
Grant Oil part no. MPCBS49		 £36.51
28 Part number MPCBS76, Filling Loop Heating Isolation Valve (Long) FILLING LOOP HEATING ISOLATION VALVE (LONG)
Grant Oil part no. MPCBS76		 £20.32

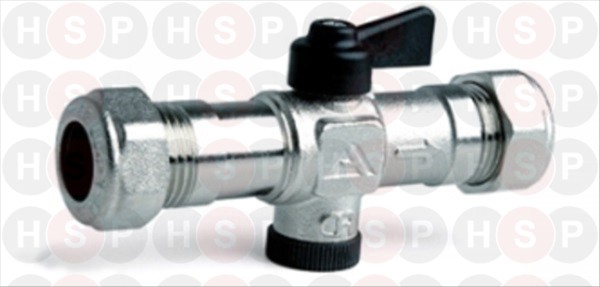

29 Part number MPCBS77, Pump Isolation Valve (22mm) PUMP ISOLATION VALVE (22MM)
Grant Oil part no. MPCBS77		 £26.57
30 Part number MPCBS34, Fibre Washer Set FIBRE WASHER SET
Grant Oil part no. MPCBS34		 £2.27
31 Part number EFBS30, Complete Baffle Set COMPLETE BAFFLE SET
Grant Oil part no. EFBS30		 £132.83
32   COMPLETE BAFFLE SET
Grant Oil part no. MPCBS51		 £145.53
33   COMPLETE BAFFLE SET
Grant Oil part no. MPCBS52		 £145.53
34   BOTTOM BAFFLE SET
Grant Oil part no. MPCBS51X		 £90.62
35   BOTTOM BAFFLE SET
Grant Oil part no. MPCBS52X		 £90.62
36 Part number MPCBS39, Flow Restrictor FLOW RESTRICTOR
Grant Oil part no. MPCBS39		 £3.53
37 Part number MPCBS36, PUMP VALVE ISOLATION SET PUMP VALVE ISOLATION SET
Grant Oil part no. MPCBS36		 £46.21
