WR325-1 AVO P31S0501 (SEPT 1993 ONWARDS) 7702440007 - (Front Cover)
Appliance Code: 7702440007

Appliance Diagram

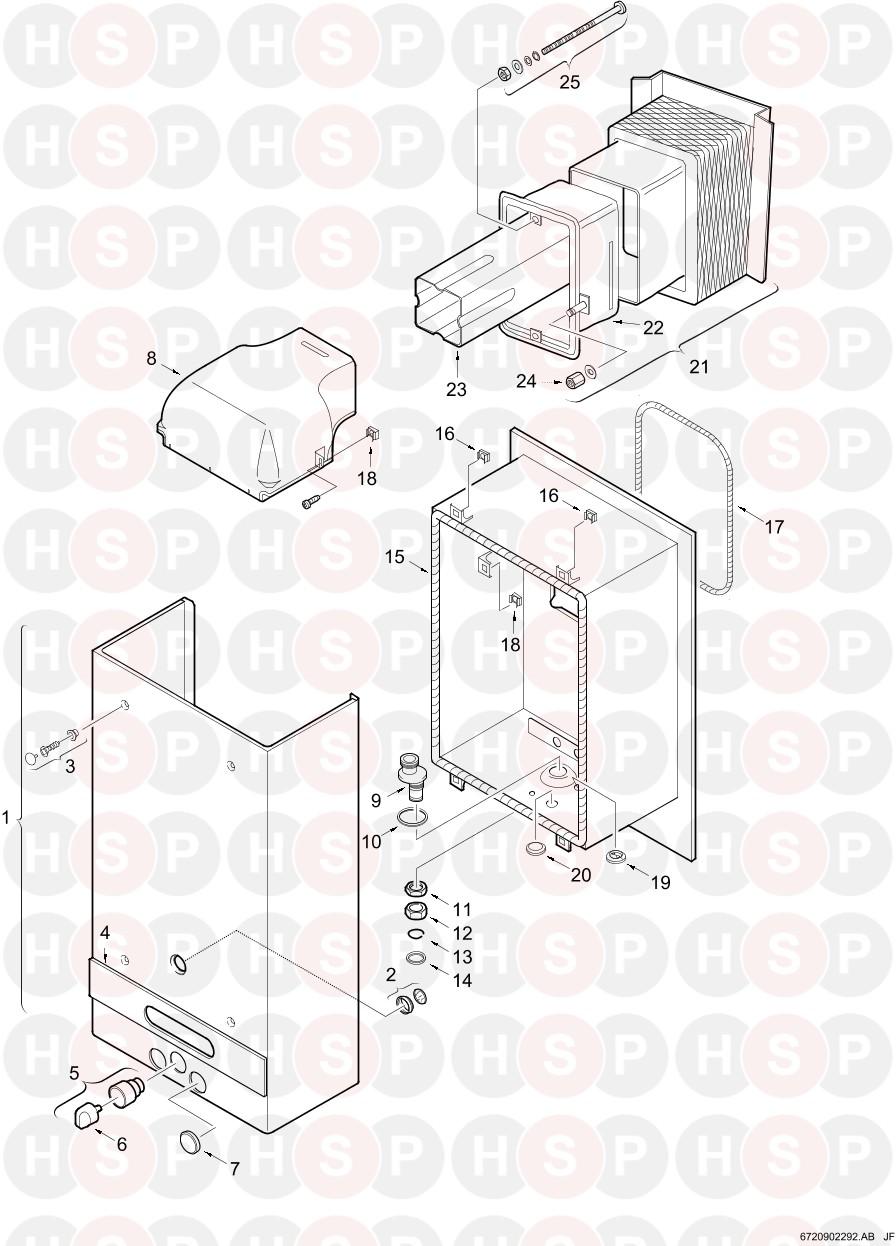

Front Cover diagram for Worcester WR325-1 AVO P31S0501 (Sept 1993 Onwards) 7702440007Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRONT COVER
Worcester part no. 87054114590		 £262.73
2 Part number 87056000030, OBSERVATION WINDOW OBSERVATION WINDOW
Worcester part no. 87056000030		 £15.42
3 Part number 87034020020, SCREW (10X) SCREW (10X)
Worcester part no. 87034020020		 £3.34
5 Part number 87020002190, WATER FLOW SELECTOR HANDLE WATER FLOW SELECTOR HANDLE
Worcester part no. 87020002190		 £14.19
7   COVER
Worcester part no. 87033040120		 £1.57
8   FLUE GAS COLLECTOR
Worcester part no. 87055053130		 £145.50
9   CONNECTOR
Worcester part no. 87055020370		 £12.23
10   WASHER (10X)
Worcester part no. 87001030330		 £20.99
11   NUT M28 X1.5
Worcester part no. 87033000220		 £4.41
12   NUT M30 X1.5
Worcester part no. 87033010570		 £18.92
13   RETAINING RING (10X)
Worcester part no. 87146010040		 £4.61
14 Part number 87101030600, WASHER 1" (10X) WASHER 1" (10X)
Worcester part no. 87101030600		 £3.04
15   PACKING TWINE
Worcester part no. 87047010060		 £20.32
16   CAGE NUT
Worcester part no. 87033090010		 £2.45
17   PACKING TWINE
Worcester part no. 87047010040		 £5.45
18   NUT
Worcester part no. 87033090090		 £1.57
19   RUBBER GROMMET
Worcester part no. 87000030020		 £3.60
20   WASHER
Worcester part no. 87000030070		 £3.60
21   WALL BOX - WALL THICKNESS 260-570MM
Worcester part no. 7709000313
21   WALL BOX - WALL THICKNESS 410-570MM
Worcester part no. 7709000314
21   WALL BOX - WALL THICKNESS 100-150MM
Worcester part no. 7709000317
22   OUTER AIR DUCT
Worcester part no. 87155053920
22   AIR DUCT PORTION
Worcester part no. 87155054120
23   FLUE GAS DUCT
Worcester part no. 87155050360
23   FLUE GAS DUCT
Worcester part no. 87155050370
24   NUT
Worcester part no. 87033000030		 £6.30
25   FIXING SET
Worcester part no. 87013090680		 £37.38
