WORCESTER
WM 12/19-ROO-GB (OCT 2001 ONWARDS) 7716100089 - (Heat Exchanger)
Appliance Code: 7716100089

Appliance Diagram

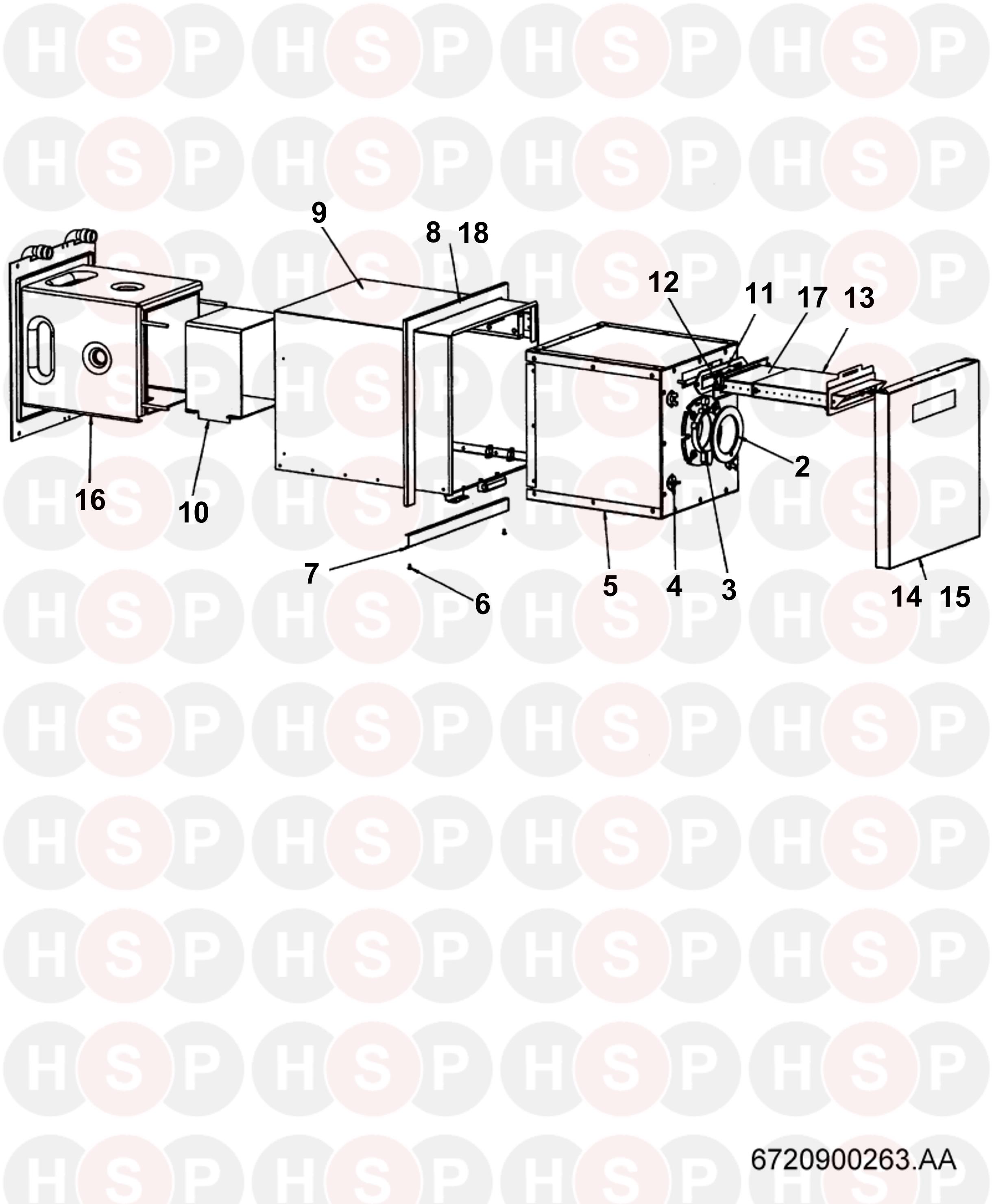

Heat Exchanger diagram for Worcester WM 12/19-Roo-GB (Oct 2001 Onwards) 7716100089Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

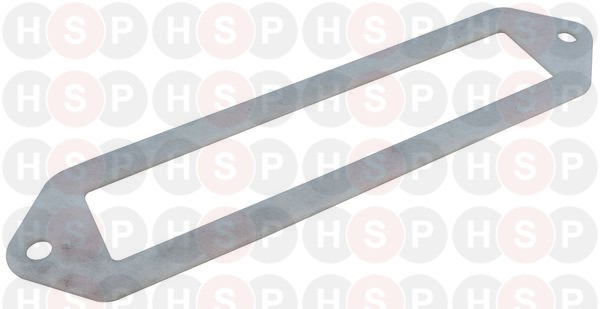

2 Part number 87161407970, GASKET BURNER GASKET BURNER
Worcester part no. 87161407970
£7.85
3   BURNER MOUNTING FLANGE
Worcester part no. 87161400140

4   M8 MS TYPE CF WING NUT ZP
Worcester part no. 87161550800
£4.70
5 Part number 87161216550, INSULATED LINER ASSEMBLY INSULATED LINER ASSEMBLY
Worcester part no. 87161216550

6 Part number 29124212100, SCREW ISO NO 6B X 9.5 RECESSED SCREW ISO NO 6B X 9.5 RECESSED
Worcester part no. 29124212100
£2.56
7   TRIM BASE ASSEMBLY
Worcester part no. 87161217460
£29.97
8   TRIM WRAP ASSEMBLY
Worcester part no. 87161217450
£43.48
9   TELESCOPIC LINER
Worcester part no. 87161216880
£173.10
10 Part number 87161045660, BAFFLE ASSEMBLY BAFFLE ASSEMBLY
Worcester part no. 87161045660
£37.38
11 Part number 87161405610, GASKET FLUE GASKET FLUE
Worcester part no. 87161405610
£20.25
12   NUT M6 WING
Worcester part no. 29151910060
£17.25
13   FLUE ADJUSTABLE ASSEMBLY
Worcester part no. 87161216890
£79.31
14   EXTERNAL COVER
Worcester part no. 87161014980

15   SCREW M4X10 SLOTTED HEX HEAD S/S
Worcester part no. 87161550750
£9.51

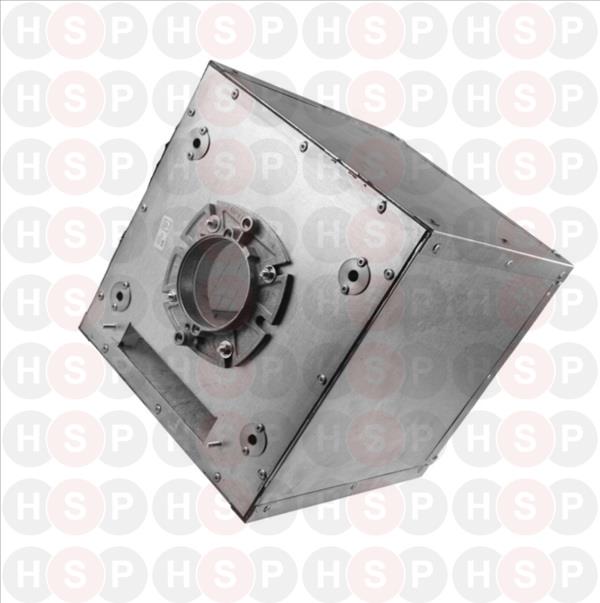

16   HEAT EXCHANGER & REAR PLATE ASSEMBLY
Worcester part no. 87161216490

17   FLUE STATIC ASSEMBLY
Worcester part no. 87161216920
£64.22
18 Part number 87161550390, BLACK NYLON SNAP RIVET BLACK NYLON SNAP RIVET
Worcester part no. 87161550390
£14.23
