RD628 RSF (APRIL 2003 ONWARDS) 7716130090 - (Electrical Box)
Appliance Code: 47-108-14

Appliance Diagram


Electrical Box diagram for Worcester RD628 RSF (April 2003 Onwards) 7716130090Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  CURRENT SENSOR ASSEMBLY SHORT
Worcester part no. 87161059970		 £21.75
  CURRENT SENSOR ASSEMBLY SHORT
Worcester part no. 87161059980		 £9.30
  HARNESS HT/ADM INTERFACE
Worcester part no. 87161059990		 £15.60
1 Part number 87172075040, CONTROL UNIT CONTROL UNIT
Worcester part no. 87172075040
1 Part number 87172075850, CONTROL BOX 24KW (WOW) CONTROL BOX 24KW (WOW)
Worcester part no. 87172075850		 £189.80
2 Part number 87172075760, CASING CASING
Worcester part no. 87172075760		 £41.80
3   CONNECTION COVER
Worcester part no. 87155033530		 £27.12
4 Part number 87483004170, PRINTED CIRCUIT BOARD BEFORE FD386 PRINTED CIRCUIT BOARD BEFORE FD386
Worcester part no. 87483004170		 £273.44
4 Part number 87483004880, PRINTED CIRCUIT BOARD AFTER FD387 PRINTED CIRCUIT BOARD AFTER FD387
Worcester part no. 87483004880		 £293.36

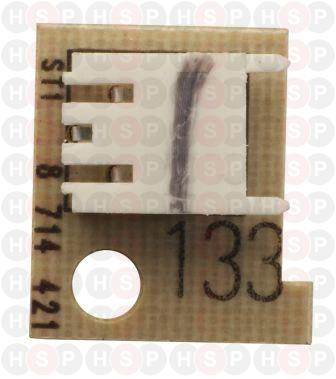

5 Part number 87144211330, CODE PLUG 1133 (NG) CODE PLUG 1133 (NG)
Worcester part no. 87144211330		 £6.54
5 Part number 87144211670, CODE PLUG 1167 (NG) CODE PLUG 1167 (NG)
Worcester part no. 87144211670		 £6.54
6 Part number 87110002760, SHIELD LIGHT GREY SHIELD LIGHT GREY
Worcester part no. 87110002760		 £9.51
7 Part number 87472013190, TRANSFORMER TRANSFORMER
Worcester part no. 87472013190		 £24.04
8 Part number 87161423980, PRESSURE GAUGE PRESSURE GAUGE
Worcester part no. 87161423980		 £16.62
9 Part number 87445030110, FUSING ELEMENT T2A (10X) FUSING ELEMENT T2A (10X)
Worcester part no. 87445030110		 £10.10
10 Part number 19045223380, FUSE T1,25A FUSE T1,25A
Worcester part no. 19045223380		 £1.84
11 Part number 87161019020, CABLE CABLE
Worcester part no. 87161019020		 £50.35
12 Part number 87161035140, HARNESS MAIN AFTER FD387 HARNESS MAIN AFTER FD387
Worcester part no. 87161035140		 £40.28
12 Part number 87161057790, HARNESS - MAIN BEFORE FD386 HARNESS - MAIN BEFORE FD386
Worcester part no. 87161057790		 £29.27
13 Part number 87161049030, HARNESS - FAN HARNESS - FAN
Worcester part no. 87161049030		 £15.42
14 Part number 87134030130, SCREW (10X) SCREW (10X)
Worcester part no. 87134030130		 £0.79
15 Part number 29123311660, SCREW M5X30 CSK ZP POZI SCREW M5X30 CSK ZP POZI
Worcester part no. 29123311660		 £1.29
16 Part number 87120001160, KNOB KNOB
Worcester part no. 87120001160		 £5.17
17 Part number 87120001150, CONTROL KNOB CONTROL KNOB
Worcester part no. 87120001150		 £2.95
18 Part number 87161017200, SAFETY STRAP SAFETY STRAP
Worcester part no. 87161017200		 £1.06
