WORCESTER
HEATSLAVE SENIOR 6 OF - (Assembly 4)
Appliance Code: 41-311-35

Appliance Diagram


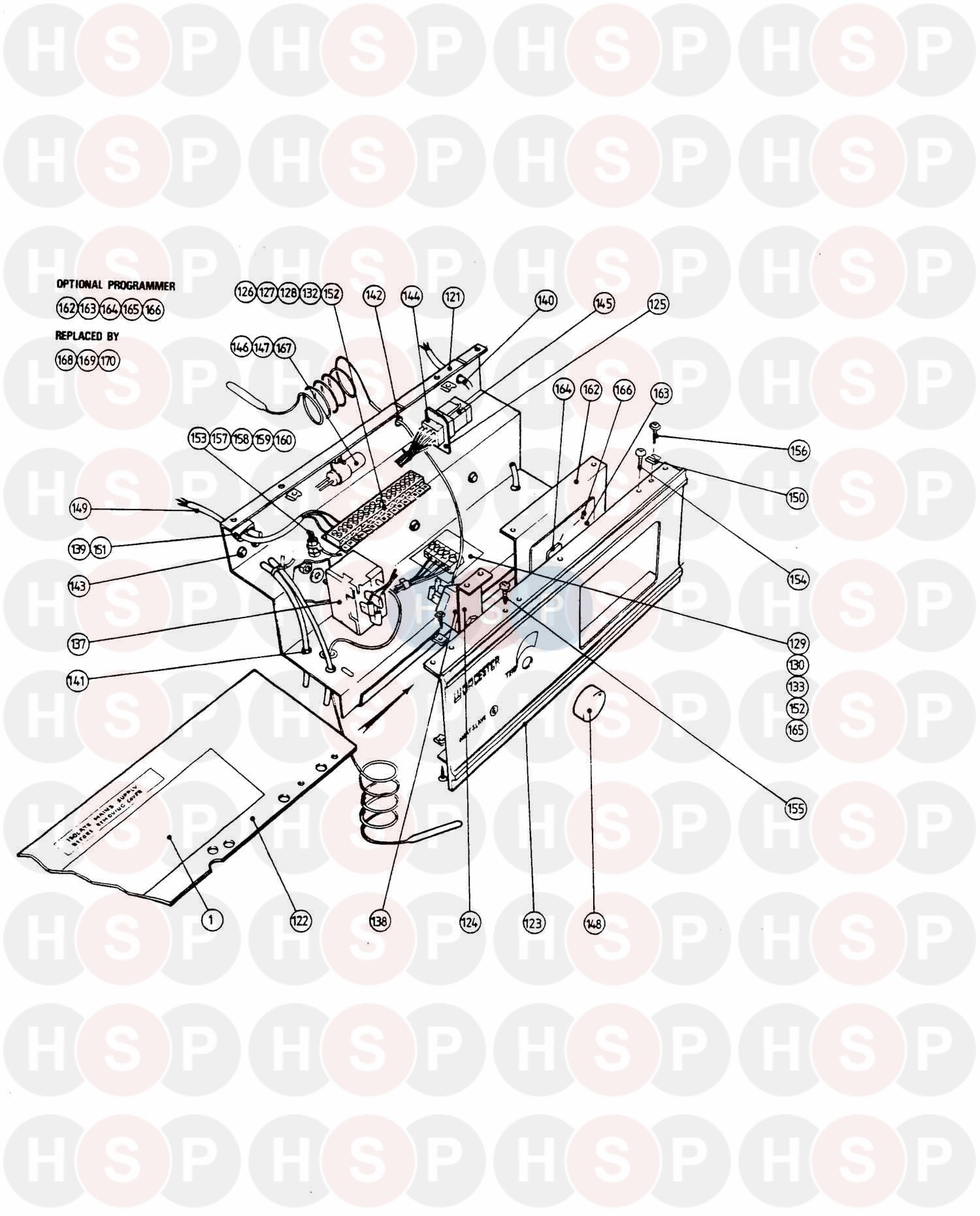

Assembly 4 diagram for Worcester Heatslave Senior 6 OfClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE DATA BADGE
Worcester part no. ZKLAB151
3   OBSOLETE HEAT EXCHANGER
Worcester part no. 87161204330
3   OBSOLETE HEAT EXCHANGER
Worcester part no. 87161204320
4   OBSOLETE KIT - SKIRT - BG SOUTHERN
Worcester part no. SPK0104
7   OBSOLETE HEAT SHIELD - BOILER FRONT COVER
Worcester part no. SD023BOIL2132
9   OBSOLETE SIGHT GLASS
Worcester part no. 87161562040
10   CAPILLARY COVER C/W GASKET
Worcester part no. 87161005570
12   OBSOLETE ROPE SEAL 9 DIA X 690MM LONG - THERMOSEAL TYP
Worcester part no. ZEROP004
13   OBSOLETE CAPILLARY COVER
Worcester part no. SD023BOIL2220
14   OBSOLETE CAPILLARY PAD SPONGE RUBBER STRIP
Worcester part no. SD023BOIL2221
21   OBSOLETE BOLT J TYPE M4X172LG ZINC PLT
Worcester part no. ZGBLT012
22   OBSOLETE CLIP - SPRING DRG.NO 32465
Worcester part no. 87161483340
23   OBSOLETE BURNER-FURIGAS SBH 7017/3/30
Worcester part no. 87161426330
24   OBSOLETE LINT FILTER - FURIGAS 518 001 001
Worcester part no. ZFGAS002
25   OBSOLETE END PLATE - FURIGAS 001 413 002
Worcester part no. ZFGAS003
26   OBSOLETE GASKET-END PLT FUR 538.300.002
Worcester part no. 87161407320
27   OBSOLETE BURNER SECTION C/W PILOT BRACKET
Worcester part no. ZFGAS004
28   INJECTOR 1/8 120DEG X 3MM DIA
Worcester part no. 87161563440
29   OBSOLETE
Worcester part no. 87161430380
30 Part number 87161408210, O-RING 3.53 X 25.8 I/D H-NITRILE O-RING 3.53 X 25.8 I/D H-NITRILE
Worcester part no. 87161408210
32   OBSOLETE TUBE 6MM OD X 4MM ID ALUMINIUM - PILOT FEED
Worcester part no. SH133BOIL2670
33 Part number 87161426350, Pilot burner q359a1041 PILOT BURNER Q359A1041
Worcester part no. 87161426350
34 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
35   OBSOLETE
Worcester part no. 87161563290
35   OBSOLETE
Worcester part no. ZBUNC091
36   OBSOLETE
Worcester part no. ZFGAS005
37   OBSOLETE GAS VALVE 1/2BSP COMPACT SOFTLITE
Worcester part no. 68250902
38   OBSOLETE THERMOCOUPLE 600MM LONG - HONEYWELL Q309A2739
Worcester part no. 35009315
41 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
42   OBSOLETE LEAD ASSY 0.7 PTFE CABLEX500MM
Worcester part no. 87161466430
45   OBSOLETE
Worcester part no. ZDELE082
46 Part number 87161423430, OBSOLETE T/stat ranco l5-p1042 OBSOLETE T/STAT RANCO L5-P1042
Worcester part no. 87161423430
47   OBSOLETE CABLE 800MM LONG 3 CORE PVC INSULATED - MAINS
Worcester part no. ZDELE043
53   OBSOLETE
Worcester part no. 87161405340
55   OBSOLETE MACHINE SCREW M3 X 5 SLOTTED CHEESE HEAD
Worcester part no. ZGSCR065
56   OBSOLETE
Worcester part no. ZGSCR070
58   OBSOLETE PRECISION SCREW M5 X 10 HEXAGON HEAD - STEEL
Worcester part no. ZGSCR066
60   OBSOLETE SCREW M5X35MM HEX/SLOTTED HEAD
Worcester part no. 29111311680
61   OBSOLETE MACHINE SCREW M6 X 10 SLOTTED PAN HEAD
Worcester part no. ZGSCR088
62   OBSOLETE FULL NUT M5 HEXAGON STEEL GRADE 8 BS3692
Worcester part no. 123400
64   NOW USE 29151911040 WING NUT
Worcester part no. ZGNUT036
64   NUT M4 MS WING ZN PL TABLE 1
Worcester part no. 29151911040
78   OBSOLETE MACHINE SCREW M5 X 16 SLOTTED PAN HEAD
Worcester part no. 2003400
82   OBSOLETE
Worcester part no. 87161211110
85 Part number 87161410570, FLOW LIMITER INSERT 10LT FLOW LIMITER INSERT 10LT
Worcester part no. 87161410570		 £6.39
86   OBSOLETE INS.JCKT.HSS6/12 (3PART)
Worcester part no. 87161422870
87 Part number 87161402450, POCKET T/STAT 27-3 POCKET T/STAT 27-3
Worcester part no. 87161402450		 £18.18
88 Part number 87161402380, AIR VENT 1/8 BSP AIR VENT 1/8 BSP
Worcester part no. 87161402380		 £17.04
89   OBSOLETE DRAIN COCK TYPE A BUSHED 1/2
Worcester part no. 87161405220
94   OBSOLETE SUPPORT - RH SIDE
Worcester part no. SH133BASE2659
95   OBSOLETE SUPPORT - LH SIDE
Worcester part no. SH133BASE2660
96   OBSOLETE SUPPORT - PIPE
Worcester part no. SH063BASE2916
98   OBSOLETE GROMMET 19MM DIA BLACK RUBBER
Worcester part no. ZDELE013
105   OBSOLETE PUMP 130MM - SMC COMET 2
Worcester part no. ZAMAJ033
106   OBSOLETE VALVE 22MM X 1-1/2 [SMC]
Worcester part no. 87161424710
107   PUMP GASKET 1-1/4
Worcester part no. 87161409040		 £5.72
108   TEE ASSEMBLY C/W NON-RETURN VALVE
Worcester part no. 87161048430		 £26.36
108   NOW USE 87161048430 VALVE NON RETURN 22MM C X C
Worcester part no. 87161424200
109 Part number 87161480110, CAP NUT 22MM CAP NUT 22MM
Worcester part no. 87161480110		 £1.18
109 Part number ZCCMP018, NOW USE 87161480110 CAP NUT 22MM NOW USE 87161480110 CAP NUT 22MM
Worcester part no. ZCCMP018
110 Part number 87161402960, RING-COMPRESSION 22MM RING-COMPRESSION 22MM
Worcester part no. 87161402960		 £4.31
114   OBSOLETE RETURN ASSEMBLY - BOILER
Worcester part no. SH063PLUM29883
115   OBSOLETE CENTRAL HEATING RETURN TO TANK ASSEMBLY
Worcester part no. SH063PLUM29884
116   OBSOLETE
Worcester part no. ZCCMP004
116   OBSOLETE
Worcester part no. 87161402670
121   OBSOLETE ELECTRICAL COVER ASSEMBLY
Worcester part no. SH133ELEC2657
122   OBSOLETE TOP PLATE - ELECTRICAL COVER
Worcester part no. SH133ELEC2658
123   OBSOLETE FACIA DETAIL
Worcester part no. ZIFAC112
126   OBSOLETE INSULATING STRIP
Worcester part no. SH133ELEC2445
127   NOW USE 87161462230 T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. ZDELE025
127   T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. 87161462230		 £18.44
129   OBSOLETE INSULATING STRIP - PAXOLIN
Worcester part no. ZDELE020
130   OBSOLETE
Worcester part no. ZDELE026
132   OBSOLETE LABEL - TERMINAL STRIP
Worcester part no. ZKLAB081
133   OBSOLETE LABEL - TERMINAL STRIP
Worcester part no. ZKLAB047
134   OBSOLETE THERMOSTAT
Worcester part no. 87161423230
135   OBSOLETE THERMOSTAT
Worcester part no. 87161423220
137   OBSOLETE THERMOSTAT
Worcester part no. 87161423470
138 Part number 87161423440, OBSOLETE T/STAT RANCO CL6-P0128 OBSOLETE T/STAT RANCO CL6-P0128
Worcester part no. 87161423440
139 Part number 87161411010, CLAMP CABLE TYPE KB2 INSULOID CLAMP CABLE TYPE KB2 INSULOID
Worcester part no. 87161411010		 £17.44
139 Part number ZDELE071, NOW USE 87161411010 CLAMP CABLE NOW USE 87161411010 CLAMP CABLE
Worcester part no. ZDELE071
140   OBSOLETE STRAIGHT THROUGH CORD STRAIN RELIEF - HEYCO S
Worcester part no. ZDELE045
141   OBSOLETE STRAIGHT-THRU STRAIN RELIEF BUSHING BLACK NYL
Worcester part no. 68201112
143 Part number 87161411030, PLUG HOLE HEYCO DP500 PLUG HOLE HEYCO DP500
Worcester part no. 87161411030		 £3.88
144   OBSOLETE SOCKET(MINI-RELAY)2515/4SOLDER
Worcester part no. 87161461240
145   OBSOLETE RELAY-MINI PLUG-IN MY4 230V AC
Worcester part no. 87161461250
146   OBSOLETE FILTER SUPPRESSOR
Worcester part no. 87161462490
147   OBSOLETE
Worcester part no. 87161411630
148 Part number 87161411190, OBSOLETE Knob - snr 6 + 924 mK1 -brown OBSOLETE KNOB - SNR 6 + 924 MK1 -BROWN
Worcester part no. 87161411190
150 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
151   SCREW NO.6X1" TYPE B ZP P/H ST SC
Worcester part no. 29124212150		 £17.31
151   NOW USE 29124212150 SCREW NO.6X1" TYPE B ZP P/H ST SC
Worcester part no. ZGSCR061
152   OBSOLETE MACHINE SCREW M3 X 16 RECESSED PAN HEAD
Worcester part no. 732310
153   OBSOLETE MACHINE SCREW M4 X 20 SLOTTED PAN HEAD
Worcester part no. ZGSCR071
154   OBSOLETE SCREW M4 X 10 TAPTITE RECESSED PAN HEAD
Worcester part no. 766290
155   NOW USE 29100011180 M4X8MM
Worcester part no. ZGSCR157
155   SCREW M4X8MM ROUND HEAD ZP
Worcester part no. 29100011180
156   OBSOLETE TAPPING SCREW ISO NO8AB X 9.5 RECESSED PAN HE
Worcester part no. ZGSCR008
157   OBSOLETE FULL NUT M4 HEXAGON - BRASS BS3692 SELF COLOU
Worcester part no. ZGNUT037
158   OBSOLETE BRIGHT WASHER M4 FORM A (4.3 X 9 X 0.8)
Worcester part no. ZGWSH027
160   OBSOLETE WASHER
Worcester part no. ZGWSH021
161   OBSOLETE MACHINE SCREW M3 X 10 SLOTTED PAN HEAD
Worcester part no. ZGSCR177
163   OBSOLETE FACIA - SWITCH MOUNTING
Worcester part no. ZIFAC113
164   OBSOLETE SWITCH C1470VQN8142MATT 3POSN
Worcester part no. 87161461050
164 Part number 87161461310, NOW USE 87161461030 SWITCH NOW USE 87161461030 SWITCH
Worcester part no. 87161461310
164 Part number 87161461030, SWITCH200400E857 3 POS RAL7012 SWITCH200400E857 3 POS RAL7012
Worcester part no. 87161461030		 £20.66
166   NEON INDICATOR RED
Worcester part no. 87161466230		 £5.49
166   NOW USE 87161466230 NEON INDICATOR RED
Worcester part no. 87161466330
167   OBSOLETE
Worcester part no. ZGNUT025
168   OBSOLETE PROGRAMMER ASSEMBLY - HORSTMANN DIADEM 425
Worcester part no. ZAMAJ160
168 Part number 87161561040, PROGRAMMER P.I. PROGRAMMER P.I.
Worcester part no. 87161561040
171   OBSOLETE PANEL - LH SIDE
Worcester part no. SH133CABT2650
172   OBSOLETE PANEL - RH SIDE
Worcester part no. SH133CABT2651
173   OBSOLETE PANEL - TOP
Worcester part no. SH133CABT2654
174   OBSOLETE KICK STRIP
Worcester part no. SH133CABT2984
175   OBSOLETE PANEL - FRONT
Worcester part no. SH133CABT2653
177 Part number 87161405120, STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991 STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991
Worcester part no. 87161405120		 £3.03
178 Part number 87161550020, NUT 2BA FLAT BLACK M/S BEFORE FD991 NUT 2BA FLAT BLACK M/S BEFORE FD991
Worcester part no. 87161550020		 £2.57
180   OBSOLETE TAPPING SCREW ISO NO8AB X 16 RECESSED FLANGE
Worcester part no. ZGSCR009
188   OBSOLETE KIT - FIXING
Worcester part no. ZHBAG005
189   OBSOLETE WALL PLUG NO8 X 30MM PLASTIC
Worcester part no. GC368340
190   OBSOLETE WOOD SCREW NO8 X 1IN SLOTTED ROUND HEAD
Worcester part no. GC409015
191   OBSOLETE DUCTING TAPE 50MM WIDE X 4M LONG
Worcester part no. GC368367
193   OBSOLETE LABEL
Worcester part no. ZKLAB048
194   OBSOLETE LABEL
Worcester part no. ZKLAB024
195   OBSOLETE LABEL - WHEN FILLING SYSTEM - SELF ADHESIVE
Worcester part no. ZKLAB020
196   OBSOLETE LABEL - SELF ADHESIVE
Worcester part no. ZKLAB022
197   OBSOLETE LABEL - ELECTRICAL WARNING - SELF ADHESIVE
Worcester part no. ZKLAB061
198   OBSOLETE LABEL - SELF ADHESIVE - HEATING DRAIN
Worcester part no. ZKLAB077
199   OBSOLETE LABEL - PRIMARY FEED - SELF ADHESIVE
Worcester part no. ZKLAB030
200   OBSOLETE LABEL - PRIMARY VENT - SELF ADHESIVE
Worcester part no. ZKLAB078
201   OBSOLETE LABEL - CENTRAL HEATING FLOW - SELF ADHESIVE
Worcester part no. ZKLAB027
203   OBSOLETE LABEL - DOMESTIC HOT WATER OUTLET - SELF ADHE
Worcester part no. ZKLAB028
204   OBSOLETE INSTALLATION AND MAINTENANCE INSTRUCTIONS
Worcester part no. ZKLIT097
205   OBSOLETE USERS OPERATING INSTRUCTIONS
Worcester part no. ZKLIT098


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
