WORCESTER
HEATSLAVE II EXT 18/25 ERP 7731600051 - (Flue Manifold)
Appliance Code: 7731600051

Appliance Diagram

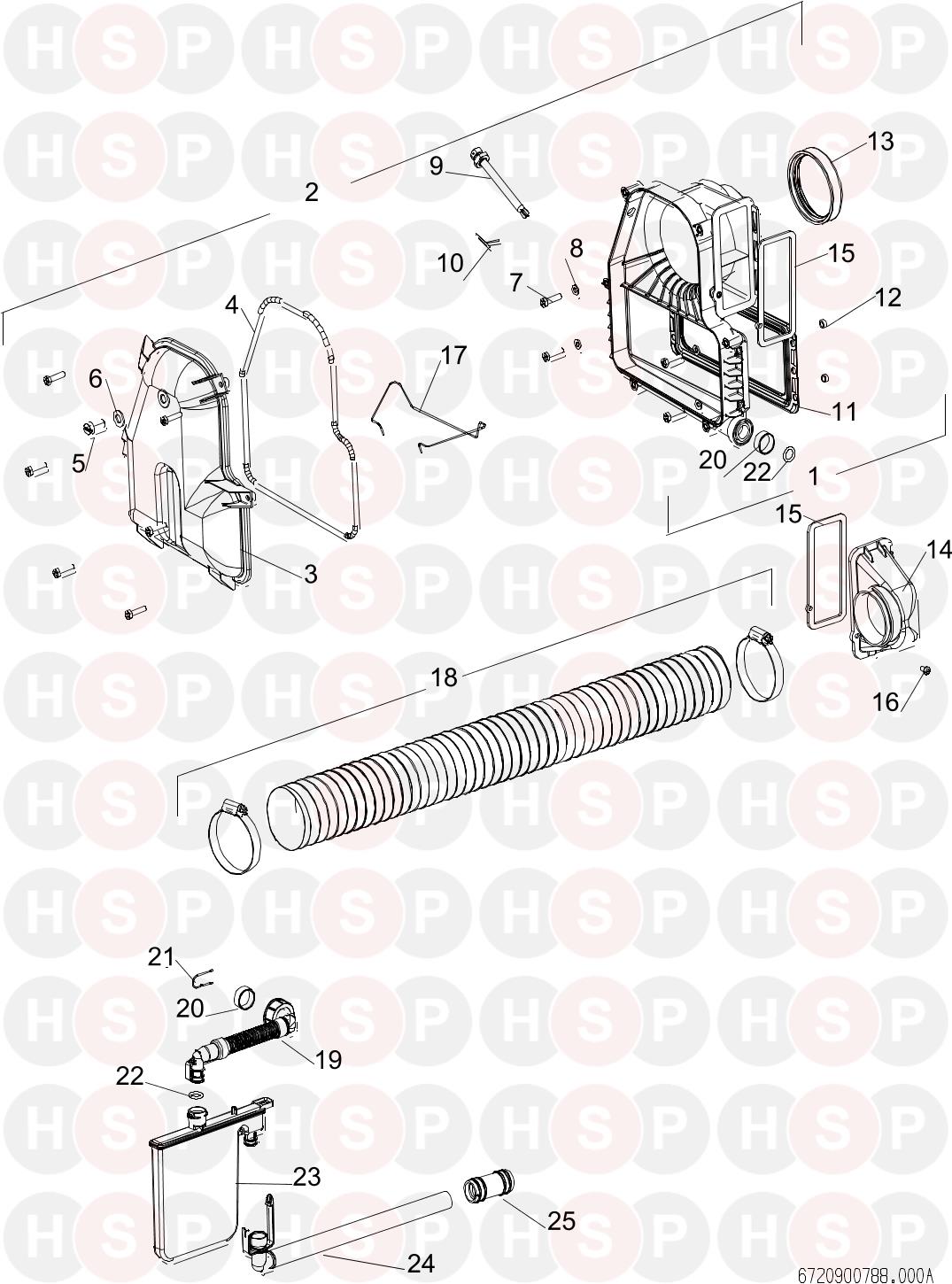

Flue Manifold diagram for Worcester Heatslave II Ext 18/25 ErP 7731600051Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FLUE MANIFOLD ASSEMBLY
Worcester part no. 87161128510		 £136.11
3   FLUE SERVICE COVER
Worcester part no. 87161073610		 £89.47
4 Part number 87161075360, SEAL - SERVICE COVER SEAL - SERVICE COVER
Worcester part no. 87161075360		 £12.91
5 Part number 87186820810, M10 SCREW AND WASHER M10 SCREW AND WASHER
Worcester part no. 87186820810		 £4.07
6   WASHER PLASTIC M10
Worcester part no. 87186820820		 £0.29
7 Part number 87161130660, SCREW HEX Z M6 X 25 8.8 ZP AFTER FD783 SCREW HEX Z M6 X 25 8.8 ZP AFTER FD783
Worcester part no. 87161130660		 £3.00
8 Part number 29160110140, WASHER 6mm ID FLAT Z/P M/S WASHER 6MM ID FLAT Z/P M/S
Worcester part no. 29160110140		 £1.99
9 Part number 87161076970, THERMOSTAT POCKET ASSEMBLY THERMOSTAT POCKET ASSEMBLY
Worcester part no. 87161076970		 £41.50
10 Part number 87161550470, STEEL SPLIT PIN 45mm X 1.5mm STEEL SPLIT PIN 45MM X 1.5MM
Worcester part no. 87161550470		 £2.95
11   SEAL SECONDARY HEAT EXCHANGER
Worcester part no. 77470097250		 £56.15
12 Part number 87161134500, COWL SPACER COWL SPACER
Worcester part no. 87161134500		 £10.00
13 Part number 87110043020, NOW USE 8716119867 FLUE SEAL NOW USE 8716119867 FLUE SEAL
Worcester part no. 87110043020
13   FLUE SEAL
Worcester part no. 8716119867		 £3.53
14 Part number 87161073620, RS AIR DUCT RS AIR DUCT
Worcester part no. 87161073620		 £23.54
15 Part number 87161075350, GASKET RS AIR DUCT S/AD GASKET RS AIR DUCT S/AD
Worcester part no. 87161075350		 £1.12
16   SCREW M5X10MM SLOTTED P/H M/S
Worcester part no. 29101011520		 £2.07
17   RETAINER-SECONDARY BAFFLE 18/25
Worcester part no. 87161142470		 £50.29
18   BURNER AIR DUCT ASSEMBLY
Worcester part no. 87161124240		 £31.41
19 Part number 87186828320, PIPE ASSEMBLY CONDENSATE TRAP AFTER FD992 PIPE ASSEMBLY CONDENSATE TRAP AFTER FD992
Worcester part no. 87186828320		 £20.29
20 Part number 87186842710, GASKET FIBBER GASKET FIBBER
Worcester part no. 87186842710		 £5.13
22 Part number 87161067480, O-RING 12,5X3 WRAS / KTW (1X) AFTER FD992 O-RING 12,5X3 WRAS / KTW (1X) AFTER FD992
Worcester part no. 87161067480		 £2.95
23 Part number 87186828300, TRAP CONDENSATE ASSEMBLY AFTER FD992 TRAP CONDENSATE ASSEMBLY AFTER FD992
Worcester part no. 87186828300		 £17.56
24   ELBOW ASSEMBLY CONDENSATE
Worcester part no. 87186829450		 £14.03
25 Part number 87186824840, CONNECTOR FLEXIBLE AFTER FD992 CONNECTOR FLEXIBLE AFTER FD992
Worcester part no. 87186824840		 £6.39
