WORCESTER
HEATSLAVE 9.24 OF MK1 & 1.5 - (Assembly 3)
Appliance Code: 47-311-01

Appliance Diagram

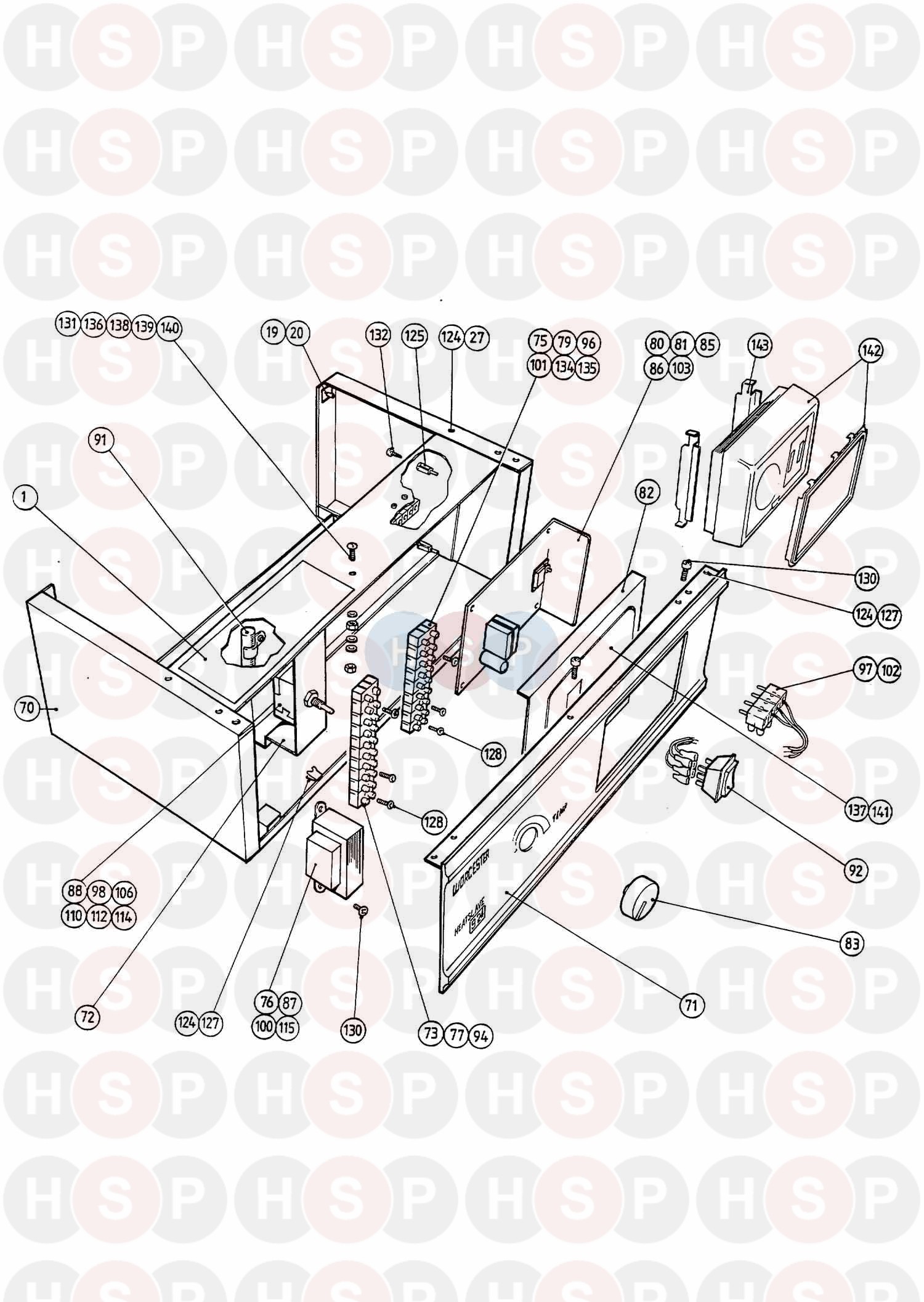

Assembly 3 diagram for Worcester Heatslave 9.24 Of MK1 & 1.5Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE INJECTOR LPG 1/8 X60DEGX2.7M
Worcester part no. 87161563340
0 Part number 87161208050, OBSOLETE Pipe - tail OBSOLETE PIPE - TAIL
Worcester part no. 87161208050
0 Part number 87161206920, OBSOLETE Pipe - tail OBSOLETE PIPE - TAIL
Worcester part no. 87161206920
0 Part number 87161481530, INJECTOR(PILOT)LPG INJECTOR(PILOT)LPG
Worcester part no. 87161481530		 £5.49
0 Part number 87161426350, Pilot burner q359a1041 PILOT BURNER Q359A1041
Worcester part no. 87161426350
0 Part number 87161567170, OBSOLETE Valve-gas v8600n2031 lpg OBSOLETE VALVE-GAS V8600N2031 LPG
Worcester part no. 87161567170
35   OBSOLETE HEAT EXCHANGER
Worcester part no. 87161003130
37 Part number 87161409180, WASHERS 22MM THIN WASHERS 22MM THIN
Worcester part no. 87161409180		 £5.12
39 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
40 Part number 87161409190, WASHER 24 X 12 X 1.50 WASHER 24 X 12 X 1.50
Worcester part no. 87161409190		 £2.63
41   OBSOLETE NOZZLE - FLOW REG. HOUSING
Worcester part no. 87161563200
42 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
43 Part number 87161411430, FLOW REGULATOR TYPE E-W 9 LT FLOW REGULATOR TYPE E-W 9 LT
Worcester part no. 87161411430		 £3.03
44 Part number 87161402850, NUT-G3/4 CLAMPING BRASS NUT-G3/4 CLAMPING BRASS
Worcester part no. 87161402850
45   OBSOLETE PLUG BRASS HEX.HD.1/4 BSPTAP
Worcester part no. 87161405200
46 Part number 87161423580, GAUGE PRES.50MMX1/8BACK 4BAR GAUGE PRES.50MMX1/8BACK 4BAR
Worcester part no. 87161423580		 £15.58
46   OBSOLETE GAUGE PRES.60MM FLPANELMNT4BAR (SS KIT)
Worcester part no. 87161423590
58 Part number 87161428090, OBSOLETE HEAT EXCHANGER PR 25/243 OBSOLETE HEAT EXCHANGER PR 25/243
Worcester part no. 87161428090
81 Part number 87161410680, POTENTIOMETER ADJUSTER - NYLON POTENTIOMETER ADJUSTER - NYLON
Worcester part no. 87161410680		 £2.91
83 Part number 87161411190, OBSOLETE Knob - snr 6 + 924 mK1 -brown OBSOLETE KNOB - SNR 6 + 924 MK1 -BROWN
Worcester part no. 87161411190
85   OBSOLETE DRIVER-ELECTRONIC W9335A1023B
Worcester part no. 87161463250
85   OBSOLETE DRIVER/ELECTRONIC W9335B1039
Worcester part no. 87161463240
87 Part number 87161465070, OBSOLETE TRANSFORMER OBSOLETE TRANSFORMER
Worcester part no. 87161465070
88 Part number 87161423440, OBSOLETE T/STAT RANCO CL6-P0128 OBSOLETE T/STAT RANCO CL6-P0128
Worcester part no. 87161423440
89 Part number 87161423620, T/STAT T/DISC 60T13500103 T/STAT T/DISC 60T13500103
Worcester part no. 87161423620
89 Part number 87161212110, Interrupter lead (924 of/bf) INTERRUPTER LEAD (924 OF/BF)
Worcester part no. 87161212110
89 Part number 87161208120, STAT OVERHEAT C/W LEADS (LONG) STAT OVERHEAT C/W LEADS (LONG)
Worcester part no. 87161208120
90   OBSOLETE SENSOR-REF: T7335A2002
Worcester part no. 87161423420
91   OBSOLETE FILTER SUPPRESSOR
Worcester part no. 87161462490
92   OBSOLETE SWITCH C1470VQN8142MATT 3POSN
Worcester part no. 87161461050
94   NOW USE 87161462230 T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. ZDELE025
94   T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. 87161462230		 £18.44
96   OBSOLETE
Worcester part no. ZDELE026
97   T/BLOCK 12 WAY M WHITE
Worcester part no. 87161462510		 £5.80
98   OBSOLETE HARN PUMP OVERRUN (CABLE) 924
Worcester part no. 87161208960
102 Part number 87161209100, HARNESS 3WAY SWITCH HARNESS 3WAY SWITCH
Worcester part no. 87161209100		 £17.10
103   OBSOLETE HARN P.C.B RSF
Worcester part no. 87161208940
119   OBSOLETE STRAIGHT-THRU STRAIN RELIEF BUSHING BLACK NYL
Worcester part no. 68201112
142 Part number 87161561040, PROGRAMMER P.I. PROGRAMMER P.I.
Worcester part no. 87161561040
145 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
146 Part number 87161431040, PUMP PUMP
Worcester part no. 87161431040
146 Part number 87161424170, VALVE 22MM X 1-1/2 VALVE 22MM X 1-1/2
Worcester part no. 87161424170		 £25.73
148   PUMP GASKET 1-1/4
Worcester part no. 87161409040		 £5.72
149   OBSOLETE VALVE 3-WAY V33/2M/1/D/2/A
Worcester part no. 87161567100
156 Part number 87161425090, OBSOLETE Vessel-expansion-10lt(324x140) (ss kit) OBSOLETE VESSEL-EXPANSION-10LT(324X140) (SS KIT)
Worcester part no. 87161425090
157   OBSOLETE VALVE PRESSURE RELIEF 1/2 F (SS KIT)
Worcester part no. 87161424680
162   OBSOLETE
Worcester part no. 87161430360
163 Part number 87161408210, O-RING 3.53 X 25.8 I/D H-NITRILE O-RING 3.53 X 25.8 I/D H-NITRILE
Worcester part no. 87161408210
164 Part number 87161408360, O-RING 12 X 4 I/D HIGH NITRILE O-RING 12 X 4 I/D HIGH NITRILE
Worcester part no. 87161408360
165   OBSOLETE VALVE-GAS V8600N2015
Worcester part no. 87161567180
166   OBSOLETE PILOT TUBE ASSEMBLY 9.24 BF/OF MK1
Worcester part no. 87161481140
169   OBSOLETE NUT PILOT VLV H/W 45000026-002
Worcester part no. 87161563110
171   NOW USE Q309A2747 THERMOCOUPLE - HONEYWELL
Worcester part no. 450010479
172 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
174   OBSOLETE MICRO-SWITCH ASSY(V32VLV)
Worcester part no. 87161461120
175   OBSOLETE LEAD ASSY 0.7 PTFE CABLEX500MM
Worcester part no. 87161466430
179 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
