HEATSLAVE 9.24 BF MK1 & 1.6 - (Assembly 3)
Appliance Code: 47-311-02

Appliance Diagram


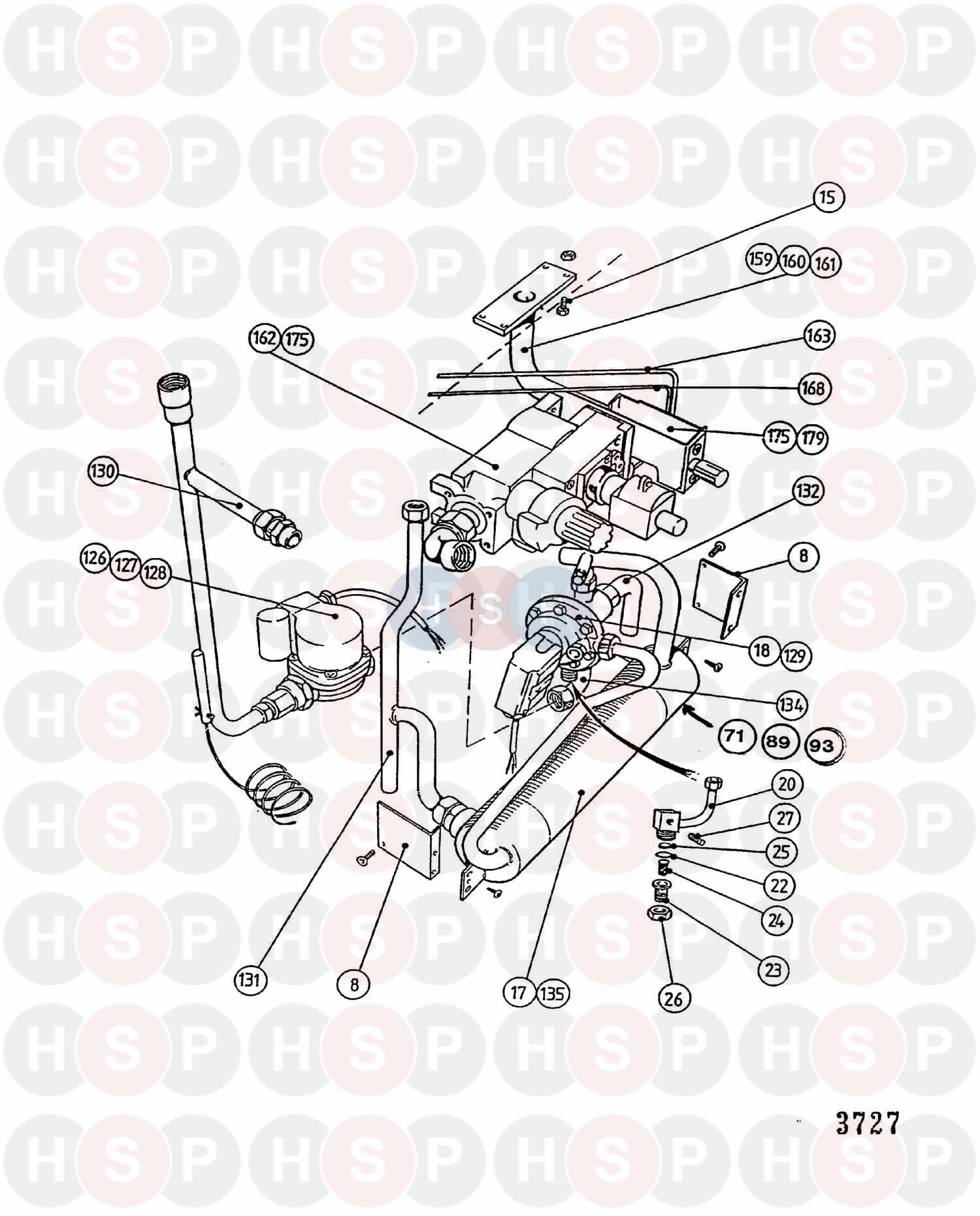

Assembly 3 diagram for Worcester Heatslave 9.24 BF MK1 & 1.6Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161208050, OBSOLETE Pipe - tail OBSOLETE PIPE - TAIL
Worcester part no. 87161208050
0 Part number 87161206920, OBSOLETE Pipe - tail OBSOLETE PIPE - TAIL
Worcester part no. 87161206920
0   OBSOLETE VALVE PRESSURE RELIEF 1/2 F (SS KIT)
Worcester part no. 87161424680
0   OBSOLETE GAUGE PRES.60MM FLPANELMNT4BAR (SS KIT)
Worcester part no. 87161423590
0 Part number 87161426350, Pilot burner q359a1041 PILOT BURNER Q359A1041
Worcester part no. 87161426350
17   OBSOLETE HEAT EXCHANGER
Worcester part no. 87161003130
19 Part number 87161409180, WASHERS 22mm THIN WASHERS 22MM THIN
Worcester part no. 87161409180		 £5.12
21 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
22 Part number 87161409190, WASHER 24 X 12 X 1.50 WASHER 24 X 12 X 1.50
Worcester part no. 87161409190		 £2.63
23   OBSOLETE NOZZLE - FLOW REG. HOUSING
Worcester part no. 87161563200
24 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
25 Part number 87161411430, FLOW REGULATOR TYPE E-W 9 LT FLOW REGULATOR TYPE E-W 9 LT
Worcester part no. 87161411430		 £3.03
26 Part number 87161402850, NUT-G3/4 CLAMPING BRASS NUT-G3/4 CLAMPING BRASS
Worcester part no. 87161402850
27   OBSOLETE PLUG BRASS HEX.HD.1/4 BSPTAP
Worcester part no. 87161405200
40 Part number 87161428090, OBSOLETE HEAT EXCHANGER PR 25/243 OBSOLETE HEAT EXCHANGER PR 25/243
Worcester part no. 87161428090
62 Part number 87161410680, POTENTIOMETER ADJUSTER - NYLON POTENTIOMETER ADJUSTER - NYLON
Worcester part no. 87161410680		 £2.91
64 Part number 87161411190, OBSOLETE Knob - snr 6 + 924 mK1 -brown OBSOLETE KNOB - SNR 6 + 924 MK1 -BROWN
Worcester part no. 87161411190
66   OBSOLETE DRIVER/ELECTRONIC W9335B1039
Worcester part no. 87161463240
66   OBSOLETE DRIVER-ELECTRONIC W9335A1023B
Worcester part no. 87161463250
68 Part number 87161465070, OBSOLETE TRANSFORMER OBSOLETE TRANSFORMER
Worcester part no. 87161465070
69 Part number 87161423440, OBSOLETE T/STAT RANCO CL6-P0128 OBSOLETE T/STAT RANCO CL6-P0128
Worcester part no. 87161423440
70 Part number 87161208120, STAT OVERHEAT C/W LEADS (LONG) STAT OVERHEAT C/W LEADS (LONG)
Worcester part no. 87161208120
70 Part number 87161212110, Interrupter lead (924 of/bf) INTERRUPTER LEAD (924 OF/BF)
Worcester part no. 87161212110
71   OBSOLETE SENSOR-REF: T7335A2002
Worcester part no. 87161423420
72   OBSOLETE FILTER SUPPRESSOR
Worcester part no. 87161462490
72 Part number 87161423620, T/STAT T/DISC 60T13500103 T/STAT T/DISC 60T13500103
Worcester part no. 87161423620
73   OBSOLETE SWITCH C1470VQN8142MATT 3POSN
Worcester part no. 87161461050
75   T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. 87161462230		 £18.44
75   NOW USE 87161462230 T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. ZDELE025
77   OBSOLETE
Worcester part no. ZDELE026
78   T/BLOCK 12 WAY M WHITE
Worcester part no. 87161462510		 £5.80
79   OBSOLETE HARN PUMP OVERRUN (CABLE) 924
Worcester part no. 87161208960
83 Part number 87161209100, HARNESS 3WAY SWITCH HARNESS 3WAY SWITCH
Worcester part no. 87161209100		 £17.10
84   OBSOLETE HARN P.C.B RSF
Worcester part no. 87161208940
99   OBSOLETE STRAIGHT-THRU STRAIN RELIEF BUSHING BLACK NYL
Worcester part no. 68201112
121 Part number 87161561040, PROGRAMMER P.I. PROGRAMMER P.I.
Worcester part no. 87161561040
126 Part number 87161431040, PUMP PUMP
Worcester part no. 87161431040
128   PUMP GASKET 1-1/4
Worcester part no. 87161409040		 £5.72
129   OBSOLETE VALVE 3-WAY V33/2M/1/D/2/A
Worcester part no. 87161567100
159   OBSOLETE
Worcester part no. 87161430360
160 Part number 87161408210, O-RING 3.53 X 25.8 I/D H-NITRILE O-RING 3.53 X 25.8 I/D H-NITRILE
Worcester part no. 87161408210
161 Part number 87161408360, O-RING 12 X 4 I/D HIGH NITRILE O-RING 12 X 4 I/D HIGH NITRILE
Worcester part no. 87161408360
162   OBSOLETE VALVE-GAS V8600N2015
Worcester part no. 87161567180
163   OBSOLETE PILOT TUBE ASSEMBLY 9.24 BF/OF MK1
Worcester part no. 87161481140
166   OBSOLETE NUT PILOT VLV H/W 45000026-002
Worcester part no. 87161563110
168   NOW USE Q309A2747 THERMOCOUPLE - HONEYWELL
Worcester part no. 450010479
169 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
172   OBSOLETE LEAD ASSY 0.7 PTFE CABLEX500MM
Worcester part no. 87161466430
174   OBSOLETE MICRO-SWITCH ASSY(V32VLV)
Worcester part no. 87161461120
176 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
