WORCESTER
GREENSTAR 30 RI COMPACT ERP - (Hydraulics)
Appliance Code: 41-406-56

Appliance Diagram

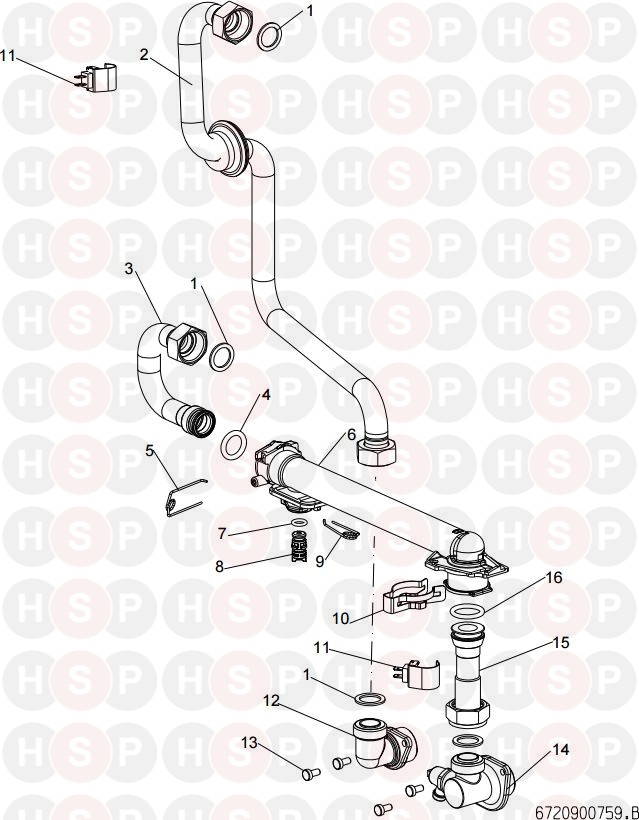

Hydraulics diagram for Worcester Greenstar 30 RI Compact ERPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430
£2.84
1 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740
£2.84
2   PIPE FLOW HEATCELL
Worcester part no. 87186828240
£26.80
3 Part number 87186843290, PIPE RETURN INTERNAL PIPE RETURN INTERNAL
Worcester part no. 87186843290
£20.96
4 Part number 87167711540, O-RING 17X4 (10X) AFTER FD992 O-RING 17X4 (10X) AFTER FD992
Worcester part no. 87167711540
£2.63
5 Part number 87186846990, CLIP WIRE 18mm (10X) CLIP WIRE 18MM (10X)
Worcester part no. 87186846990
£2.78
6 Part number 87186810570, ADAPTER RETURN PIPE ADAPTER RETURN PIPE
Worcester part no. 87186810570
£9.25
7 Part number 87102050800, O-RING 7,75X2,1 (10X) O-RING 7,75X2,1 (10X)
Worcester part no. 87102050800
£0.59
7 Part number 87161074400, O-RING 7.75 X 2.1 L (X1) O-RING 7.75 X 2.1 L (X1)
Worcester part no. 87161074400
£0.59
8 Part number 87186864090, BUNG BUNG
Worcester part no. 87186864090
£2.09
9 Part number 19928668, WIREFORM SPRING (10x) WIREFORM SPRING (10X)
Worcester part no. 19928668
£5.46
10   CLIP RETURN REGULAR
Worcester part no. 87186877760
£2.26
11 Part number 87186888010, SENSOR 18mm SENSOR 18MM
Worcester part no. 87186888010
£8.26
12 Part number 87161066080, ELBOW ELBOW
Worcester part no. 87161066080
£7.43
13 Part number 87182242510, SCREW M5 X 10mm SCREW M5 X 10MM
Worcester part no. 87182242510
£1.56
14   DRAIN COCK ELBOW
Worcester part no. 87186855580
£19.07
15   ADAPTER RETURN
Worcester part no. 87186858390
£19.92
16 Part number 87186854900, O-RING 20.22 X 3.53 70 EPDM (X10) O-RING 20.22 X 3.53 70 EPDM (X10)
Worcester part no. 87186854900
£5.27
