GREENSTAR 30 RI COMPACT ERP LPG - (Electrics)
Appliance Code: 41-406-57

Appliance Diagram


Electrics diagram for Worcester Greenstar 30 RI Compact ERP LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87186820100, CONTROL_BOX ASSEMBLY I REGULAR CONTROL_BOX ASSEMBLY I REGULAR
Worcester part no. 87186820100		 £325.86
2   OBSOLETE PANEL - REAR ACCESS SCREW ASSEMBLY
Worcester part no. 87186807280
3   SCREW KB35 X 22/10
Worcester part no. 8716117246		 £2.95
4 Part number 87122010070, CABLE STRAIN RELIEF CABLE STRAIN RELIEF
Worcester part no. 87122010070		 £3.08
5   SUPPORT CHASSIS STRAIN RELIEF
Worcester part no. 87186879070		 £1.30
6   CODE_PLUG 30RI COMPACT LPG
Worcester part no. 8716117706		 £10.85
7 Part number 29142113060, SCREW THREAD ROLLING B4,0 X 18-ST-H SCREW THREAD ROLLING B4,0 X 18-ST-H
Worcester part no. 29142113060		 £1.92
8   BACK PANEL ASSY
Worcester part no. 87186879080		 £5.63
9   COVER TOP SCREW ASSEMBLY
Worcester part no. 87186807500		 £3.86
11   KNOB CONTROL REGULAR ASSEMBLY
Worcester part no. 87186878630		 £0.71
12   SCREEN
Worcester part no. 87186876570		 £2.39
13   SPRING
Worcester part no. 87186869680		 £0.86
14   CLIP SPRING
Worcester part no. 87186872870		 £0.97
15   SCREW RETAINED
Worcester part no. 87186861090		 £2.80

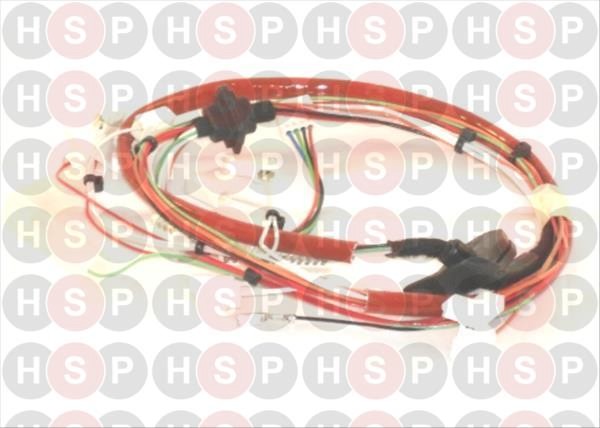

16 Part number 8716117691, HARNESS LV RI HARNESS LV RI
Worcester part no. 8716117691		 £30.63
17 Part number 87186867240, CABLE MAINS CABLE MAINS
Worcester part no. 87186867240		 £9.17
18   HARNESS HV RI
Worcester part no. 8716117693		 £30.02
19   PANEL INSTALLER ACCESS
Worcester part no. 87186807190		 £2.07
21   CONNECTING TERMINAL 2-POL ORANGE (5X)
Worcester part no. 87444040880		 £41.22
22   CONNECTING TERMINAL 2-POL BLUE (5X)
Worcester part no. 87444040890		 £41.22
23 Part number 87144044080, CONNECTING TERMINAL 3-POL N/L GREEN CONNECTING TERMINAL 3-POL N/L GREEN
Worcester part no. 87144044080		 £41.22
24   HOUSING ASSEMBLY
Worcester part no. 87186879090		 £11.69
25 Part number 8716116900, FUSE 5X20mm FAST ACTING (PK5) FUSE 5X20MM FAST ACTING (PK5)
Worcester part no. 8716116900		 £8.08
