WORCESTER
GREENSTAR 30 CDI CLASSIC SYSTEM ERP - (Heat Exchanger / Burner)
Appliance Code: 41-406-37

Appliance Diagram


Heat Exchanger / Burner diagram for Worcester Greenstar 30 CDI Classic System ErPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 8716119315, HEAT EXCHANGER BASIC BLOCK C/W SUMP HEAT EXCHANGER BASIC BLOCK C/W SUMP
Worcester part no. 8716119315
£654.52
1 Part number 87377017930, NOW USE 8716119315 HEAT EXCHANGER BASIC BLOCK NOW USE 8716119315 HEAT EXCHANGER BASIC BLOCK
Worcester part no. 87377017930

2 Part number 87133011960, NUT NUT
Worcester part no. 87133011960
£1.19
3 Part number 87229638580, TEMPERATURE LIMITER BEFORE FD886 TEMPERATURE LIMITER BEFORE FD886
Worcester part no. 87229638580
£30.48
4 Part number 87110002620, COVER COVER
Worcester part no. 87110002620
£66.31
5 Part number 87101031530, SEALING SEALING
Worcester part no. 87101031530
£9.51
6 Part number 87180038360, SHIELD SHIELD
Worcester part no. 87180038360
£5.45
7 Part number 87186643010, NOW USE 8716121817 SET OF ELECTRODES NOW USE 8716121817 SET OF ELECTRODES
Worcester part no. 87186643010

7 Part number 8716121817, SET OF ELECTRODES SET OF ELECTRODES
Worcester part no. 8716121817
£49.58
8 Part number 87145000870, TEMPERATURE SENSOR TEMPERATURE SENSOR
Worcester part no. 87145000870
£27.12
9 Part number 87180066580, BURNER BURNER
Worcester part no. 87180066580
£261.76

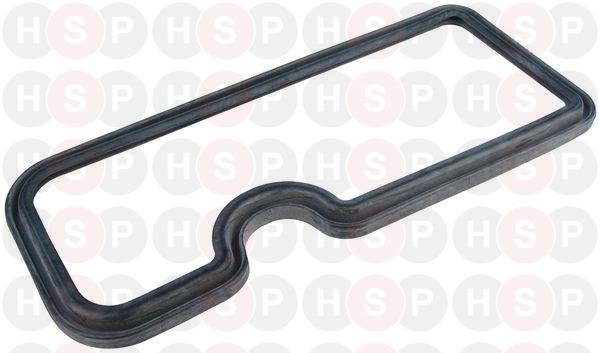

10 Part number 87110041680, BURNER SEALING BURNER SEALING
Worcester part no. 87110041680
£18.70
11 Part number 87103052970, FIXING BOLT FIXING BOLT
Worcester part no. 87103052970
£10.85
12 Part number 87154069780, COVER COVER
Worcester part no. 87154069780
£158.40
13 Part number 87155058830, BEARING PLATE BEARING PLATE
Worcester part no. 87155058830
£12.41
14 Part number 87290001830, WASHER WASHER
Worcester part no. 87290001830
£8.59
15 Part number 87103052960, FIXING SET FIXING SET
Worcester part no. 87103052960
£42.83
16 Part number 87101001900, CLIP (10X) CLIP (10X)
Worcester part no. 87101001900
£2.84
18 Part number 8716119319, FLUE GAS COLLECTOR FLUE GAS COLLECTOR
Worcester part no. 8716119319
£26.86
18 Part number 87187067490, NOW USE 8716119319 FLUE GAS COLLECTOR NOW USE 8716119319 FLUE GAS COLLECTOR
Worcester part no. 87187067490

19 Part number 87101031550, WASHER WASHER
Worcester part no. 87101031550
£5.68
20 Part number 87101032060, SET OF WASHERS SET OF WASHERS
Worcester part no. 87101032060
£1.29
22 Part number 87105062670, TEMPERATURE LIMITER ASSY AFTER FD887 TEMPERATURE LIMITER ASSY AFTER FD887
Worcester part no. 87105062670
£40.94
