WORCESTER
GREENSTAR 30 CDI CLASSIC REGULAR ERP LPG - (Heat Exchanger / Burner)
Appliance Code: 41-406-34

Appliance Diagram

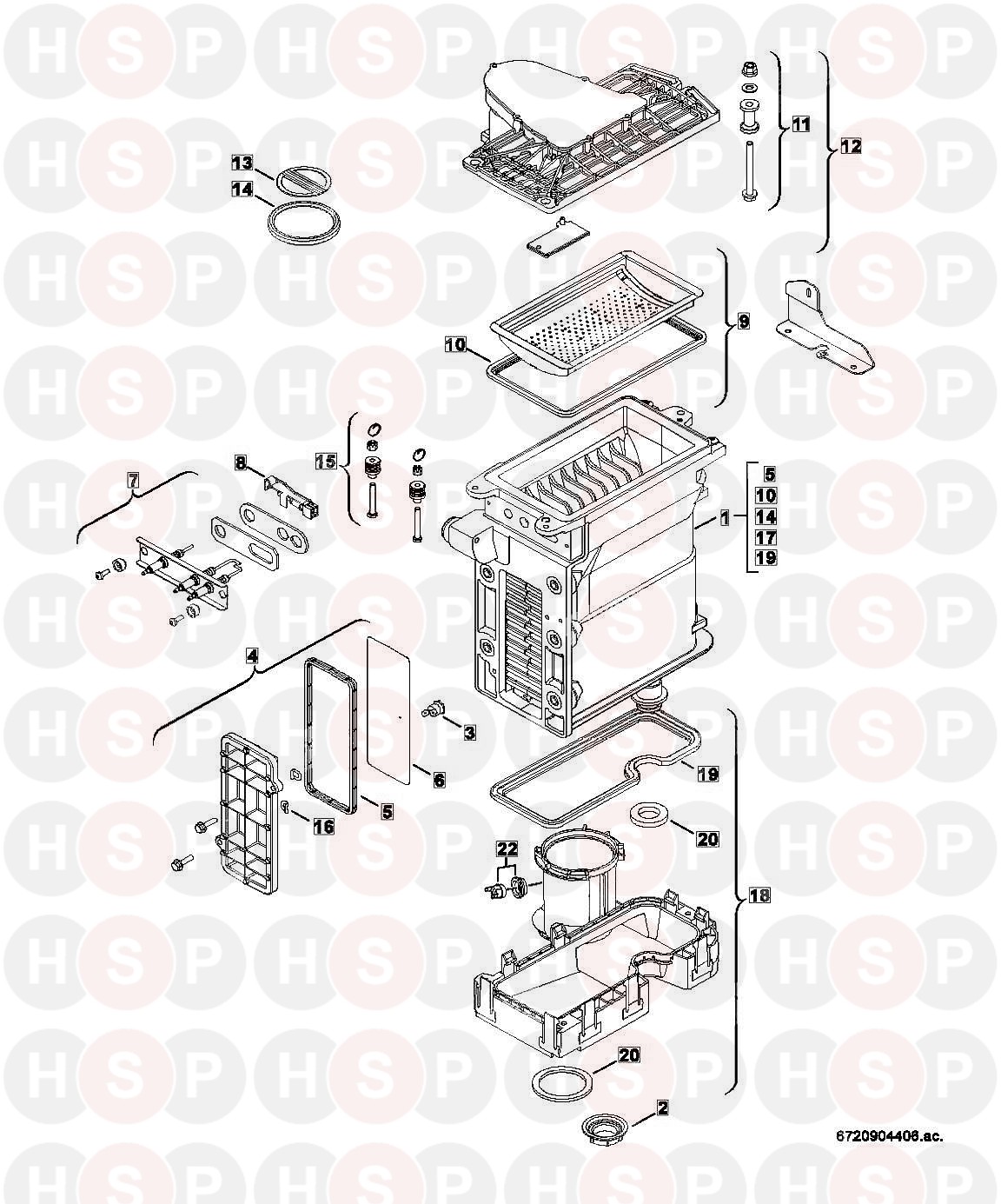

Heat Exchanger / Burner diagram for Worcester Greenstar 30 CDI Classic Regular ErP LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87377017930, NOW USE 8716119315 HEAT EXCHANGER BASIC BLOCK NOW USE 8716119315 HEAT EXCHANGER BASIC BLOCK
Worcester part no. 87377017930

1 Part number 8716119315, HEAT EXCHANGER BASIC BLOCK C/W SUMP HEAT EXCHANGER BASIC BLOCK C/W SUMP
Worcester part no. 8716119315
£654.52
2 Part number 87133011960, NUT NUT
Worcester part no. 87133011960
£1.19
3 Part number 87229638580, TEMPERATURE LIMITER BEFORE FD886 TEMPERATURE LIMITER BEFORE FD886
Worcester part no. 87229638580
£30.48
4 Part number 87110002620, COVER COVER
Worcester part no. 87110002620
£66.31
5 Part number 87101031530, SEALING SEALING
Worcester part no. 87101031530
£9.51
6 Part number 87180038360, SHIELD SHIELD
Worcester part no. 87180038360
£5.45
7 Part number 87186643010, NOW USE 8716121817 SET OF ELECTRODES NOW USE 8716121817 SET OF ELECTRODES
Worcester part no. 87186643010

7 Part number 8716121817, SET OF ELECTRODES SET OF ELECTRODES
Worcester part no. 8716121817
£49.58
8 Part number 87145000870, TEMPERATURE SENSOR TEMPERATURE SENSOR
Worcester part no. 87145000870
£27.12
9 Part number 87180066580, BURNER BURNER
Worcester part no. 87180066580
£261.76
10 Part number 87110041680, BURNER SEALING BURNER SEALING
Worcester part no. 87110041680
£18.70
11 Part number 87103052970, FIXING BOLT FIXING BOLT
Worcester part no. 87103052970
£10.85
12 Part number 87154069780, COVER COVER
Worcester part no. 87154069780
£158.40
13 Part number 87155058830, BEARING PLATE BEARING PLATE
Worcester part no. 87155058830
£12.41
14 Part number 87290001830, WASHER WASHER
Worcester part no. 87290001830
£8.59
15 Part number 87103052960, FIXING SET FIXING SET
Worcester part no. 87103052960
£42.83
16 Part number 87101001900, CLIP (10X) CLIP (10X)
Worcester part no. 87101001900
£2.84
18 Part number 87187067490, NOW USE 8716119319 FLUE GAS COLLECTOR NOW USE 8716119319 FLUE GAS COLLECTOR
Worcester part no. 87187067490

18 Part number 8716119319, FLUE GAS COLLECTOR FLUE GAS COLLECTOR
Worcester part no. 8716119319
£26.86
19 Part number 87101031550, WASHER WASHER
Worcester part no. 87101031550
£5.68
20 Part number 87101032060, SET OF WASHERS SET OF WASHERS
Worcester part no. 87101032060
£1.29
22 Part number 87105062670, TEMPERATURE LIMITER ASSY AFTER FD887 TEMPERATURE LIMITER ASSY AFTER FD887
Worcester part no. 87105062670
£40.94
