WORCESTER
DELGO 3 OF - (Electrical Cover & Facia)
Appliance Code: 41-311-26

Appliance Diagram


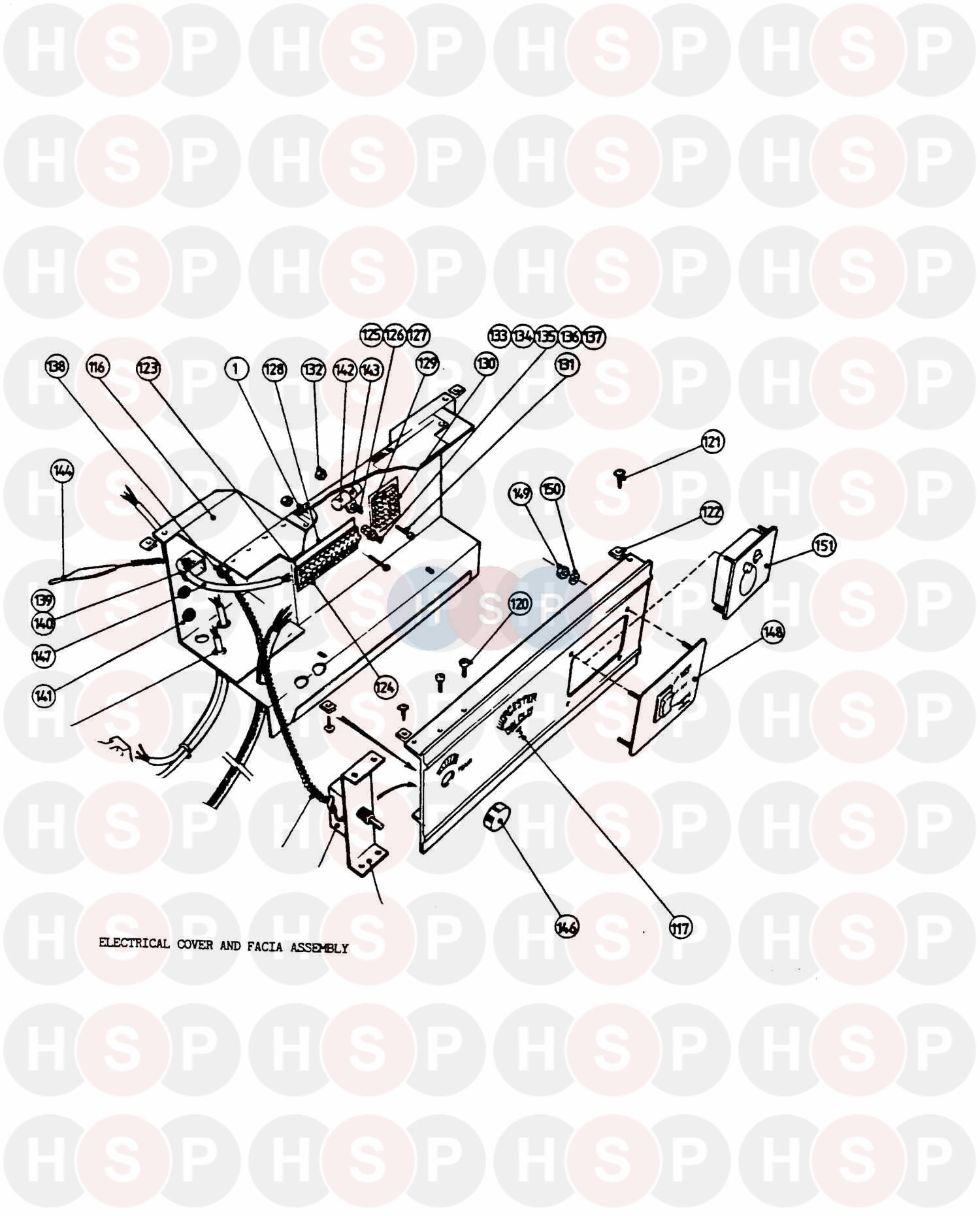

Electrical Cover & Facia diagram for Worcester Delgo 3 OfClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   OBSOLETE HEAT EXCHANGER
Worcester part no. 87161204330
3   OBSOLETE BOLT J TYPE M4X172LG ZINC PLT
Worcester part no. ZGBLT012
3   OBSOLETE HEAT EXCHANGER
Worcester part no. 87161204320
4   OBSOLETE BAFFLE - REAR SKIRT
Worcester part no. SMP002118
5   NOW USE 29101011520 SCREW M5X10MM SLOTTED P/H M/S
Worcester part no. ZGSCR080
6 Part number ZCCMP018, NOW USE 87161480110 CAP NUT 22MM NOW USE 87161480110 CAP NUT 22MM
Worcester part no. ZCCMP018
6 Part number 87161480110, CAP NUT 22MM CAP NUT 22MM
Worcester part no. 87161480110		 £1.18
8   OBSOLETE MACHINE SCREW M5 X 25 SLOTTED PAN HEAD
Worcester part no. ZGSCR085
10   OBSOLETE ROPE SEAL 9 DIA X 690MM LONG - THERMOSEAL TYP
Worcester part no. ZEROP004
12   NOW USE 29151911040 WING NUT
Worcester part no. ZGNUT036
12   NUT M4 MS WING ZN PL TABLE 1
Worcester part no. 29151911040
14   OBSOLETE HEAT SHIELD - REAR
Worcester part no. SD023BOIL2189
17   OBSOLETE FULL NUT M5 HEXAGON STEEL GRADE 8 BS3692
Worcester part no. 123400
19   OBSOLETE HEAT SHIELD - BOILER FRONT COVER
Worcester part no. SD023BOIL2132
20   OBSOLETE SCREW M5X35MM HEX/SLOTTED HEAD
Worcester part no. ZGSCR087
20   OBSOLETE SCREW M5X35MM HEX/SLOTTED HEAD
Worcester part no. 29111311680
22   OBSOLETE SIGHT GLASS
Worcester part no. 87161562040
22   OBSOLETE SIGHT GLASS
Worcester part no. ZBUNC013
23   CAPILLARY COVER C/W GASKET
Worcester part no. 87161005570
24   OBSOLETE MACHINE SCREW M3 X 5 SLOTTED CHEESE HEAD
Worcester part no. ZGSCR065
25   OBSOLETE BURNER-FURIGAS SBH 7017/3/30
Worcester part no. 87161426330
26   OBSOLETE LINT FILTER - FURIGAS 518 001 001
Worcester part no. ZFGAS002
27   OBSOLETE END PLATE - FURIGAS 001 413 002
Worcester part no. ZFGAS003
28   OBSOLETE GASKET-END PLT FUR 538.300.002
Worcester part no. 87161407320
29   OBSOLETE BURNER SECTION C/W PILOT BRACKET
Worcester part no. ZFGAS004
30   INJECTOR 1/8 120DEG X 3MM DIA
Worcester part no. 87161563440
32 Part number 87161408210, O-RING 3.53 X 25.8 I/D H-NITRILE O-RING 3.53 X 25.8 I/D H-NITRILE
Worcester part no. 87161408210
33   OBSOLETE PRECISION SCREW M5 X 16 HEXAGON/SLOTTED HEAD
Worcester part no. S2652
35   OBSOLETE GAS VALVE 1/2BSP COMPACT SOFTLITE
Worcester part no. 68250902
37   OBSOLETE
Worcester part no. ZDELE082
38   OBSOLETE CABLE 800MM LONG 3 CORE PVC INSULATED - MAINS
Worcester part no. ZDELE043
42 Part number 87161423430, OBSOLETE T/stat ranco l5-p1042 OBSOLETE T/STAT RANCO L5-P1042
Worcester part no. 87161423430
45 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
46   OBSOLETE LEAD ASSY 0.7 PTFE CABLEX500MM
Worcester part no. 87161466430
52 Part number 87161426350, Pilot burner q359a1041 PILOT BURNER Q359A1041
Worcester part no. 87161426350
53 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
54   OBSOLETE
Worcester part no. 87161563290
55   OBSOLETE
Worcester part no. ZFGAS005
56   OBSOLETE THERMOCOUPLE 600MM LONG - HONEYWELL Q309A2739
Worcester part no. 35009315
57   OBSOLETE
Worcester part no. ZGSCR070
58   OBSOLETE CAPILLARY COVER
Worcester part no. SD023BOIL2220
59   OBSOLETE CAPILLARY PAD SPONGE RUBBER STRIP
Worcester part no. SD023BOIL2221
63   OBSOLETE MACHINE SCREW M5 X 16 SLOTTED PAN HEAD
Worcester part no. 2003400
78   OBSOLETE
Worcester part no. 87161209110
80   OBSOLETE
Worcester part no. ZGNUT025
96   OBSOLETE PUMP 130MM - SMC COMET 2
Worcester part no. ZAMAJ033
97   OBSOLETE VALVE 22MM X 1-1/2 [SMC]
Worcester part no. 87161424710
98   PUMP GASKET 1-1/4
Worcester part no. 87161409040		 £5.72
99   OBSOLETE VALVE DIVERTER 22MM V4044C1288
Worcester part no. 87161424850
102 Part number ZCCMP019, NOW USE 87161402960 RING-COMPRESSION 22MM NOW USE 87161402960 RING-COMPRESSION 22MM
Worcester part no. ZCCMP019
102 Part number 87161402960, RING-COMPRESSION 22MM RING-COMPRESSION 22MM
Worcester part no. 87161402960		 £4.31
120   OBSOLETE TAPPING SCREW ISO NO8AB X 9.5 RECESSED PAN HE
Worcester part no. ZGSCR008
121   OBSOLETE TAPPING SCREW ISO NO8AB X 16 RECESSED FLANGE
Worcester part no. ZGSCR009
122 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
123   T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. 87161462230		 £18.44
123   NOW USE 87161462230 T/BLOCK 12WAY 5AMP (TENBY 715)
Worcester part no. ZDELE025
126   OBSOLETE
Worcester part no. ZGNUT035
127   OBSOLETE BRIGHT WASHER M3 FORM A (3.2 X 7 X 0.5)
Worcester part no. ZGWSH015
129   OBSOLETE
Worcester part no. ZDELE026
130   OBSOLETE INSULATING STRIP - PAXOLIN
Worcester part no. ZDELE020
131   OBSOLETE MACHINE SCREW M2 X 12 SLOTTED CHEESE HEAD
Worcester part no. ZGSCR064
132   OBSOLETE FULL NUT M2 HEXAGON - STEEL GRADE 8 BS3692
Worcester part no. ZGNUT038
133   OBSOLETE MACHINE SCREW M4 X 20 SLOTTED PAN HEAD
Worcester part no. ZGSCR071
135   OBSOLETE FULL NUT M4 HEXAGON - BRASS BS3692 SELF COLOU
Worcester part no. ZGNUT037
137   OBSOLETE BRIGHT WASHER M4 FORM A (4.3 X 9 X 0.8)
Worcester part no. ZGWSH027
139 Part number ZDELE071, NOW USE 87161411010 CLAMP CABLE NOW USE 87161411010 CLAMP CABLE
Worcester part no. ZDELE071
139 Part number 87161411010, CLAMP CABLE TYPE KB2 INSULOID CLAMP CABLE TYPE KB2 INSULOID
Worcester part no. 87161411010		 £17.44
141 Part number 87161411030, PLUG HOLE HEYCO DP500 PLUG HOLE HEYCO DP500
Worcester part no. 87161411030		 £3.88
142   OBSOLETE FILTER SUPPRESSOR
Worcester part no. 87161462490
143   OBSOLETE
Worcester part no. 87161411630
144 Part number 87161423440, OBSOLETE T/STAT RANCO CL6-P0128 OBSOLETE T/STAT RANCO CL6-P0128
Worcester part no. 87161423440
145   OBSOLETE THERMOSTAT
Worcester part no. 87161423470
150   OBSOLETE BRIGHT WASHER M4 FORM A - 4.3 X 9 X 0.8
Worcester part no. 163300
151   OBSOLETE PROGRAMMER ASSEMBLY - HORSTMANN DIAMOND 424
Worcester part no. ZAMAJ028
153   OBSOLETE STRAIGHT-THRU STRAIN RELIEF BUSHING BLACK NYL
Worcester part no. 68201112
159 Part number 87161405120, STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991 STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991
Worcester part no. 87161405120		 £3.03
179   OBSOLETE WOOD SCREW NO8 X 1IN SLOTTED ROUND HEAD
Worcester part no. GC409015
181   OBSOLETE LABEL - ELECTRICAL WARNING - SELF ADHESIVE
Worcester part no. ZKLAB061
182   OBSOLETE LABEL - SELF ADHESIVE - HEATING DRAIN
Worcester part no. ZKLAB077
184   OBSOLETE LABEL - PRIMARY FEED - SELF ADHESIVE
Worcester part no. ZKLAB030
185   OBSOLETE LABEL - PRIMARY EXPANSION - SELF ADHESIVE
Worcester part no. ZKLAB029
186   OBSOLETE LABEL - CENTRAL HEATING FLOW - SELF ADHESIVE
Worcester part no. ZKLAB027
188   OBSOLETE LABEL - DOMESTIC HOT WATER OUTLET - SELF ADHE
Worcester part no. ZKLAB028
189   OBSOLETE LABEL - COLD MAINS WATER IN - SELF ADHESIVE
Worcester part no. ZKLAB031
