WORCESTER
DANESMOOR UTILITY 32/50 ERP 7731600073 - (Manifold)
Appliance Code: 7731600073

Appliance Diagram

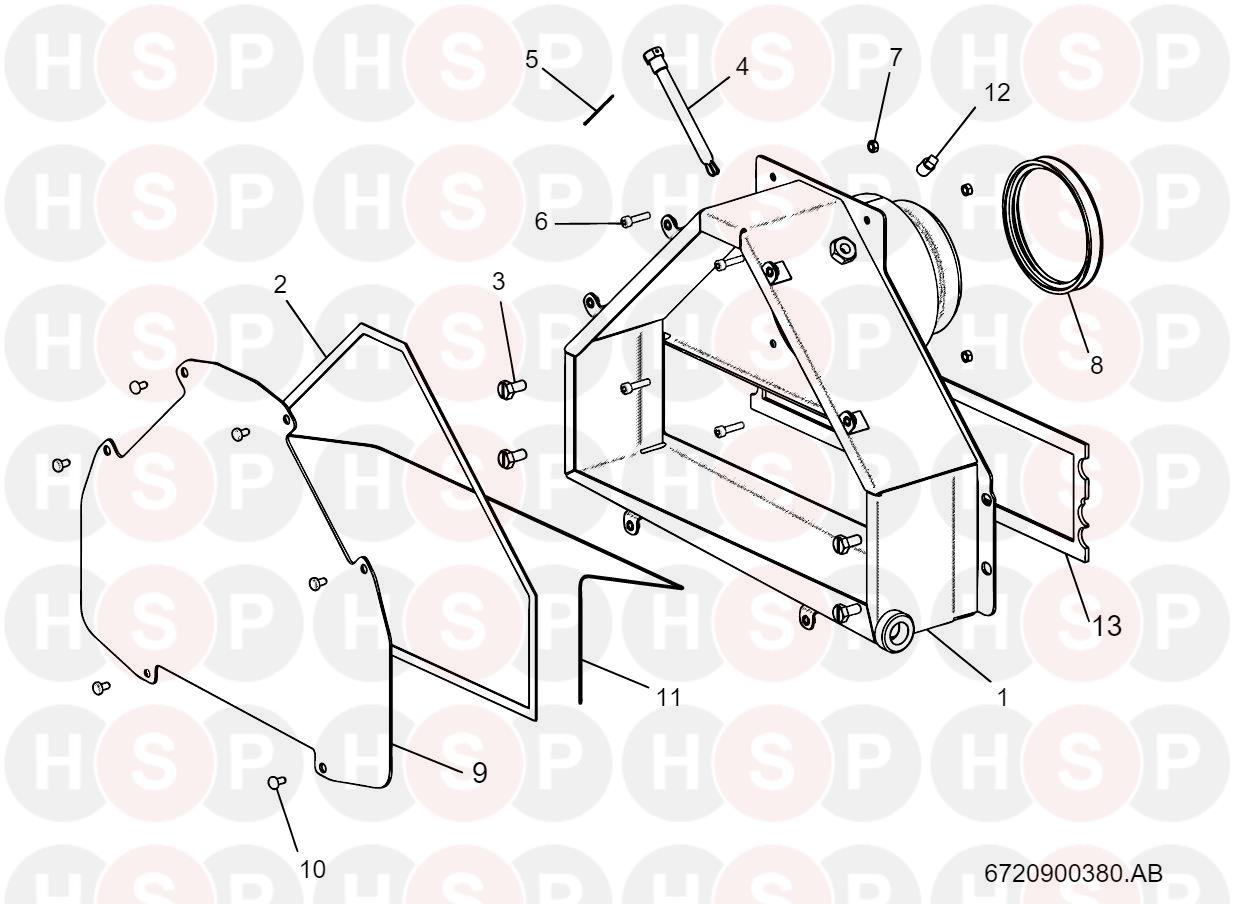

Manifold diagram for Worcester Danesmoor Utility 32/50 ERP 7731600073Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  WASHER CONDENSATE PIPE
Worcester part no. 87161101740
£9.43
  CONDENSATE PIPE
Worcester part no. 8716118396
£9.36
Part number 87186828300, TRAP CONDENSATE ASSEMBLY AFTER FD992 TRAP CONDENSATE ASSEMBLY AFTER FD992
Worcester part no. 87186828300
£17.56
1   MANIFOLD ASSY
Worcester part no. 87186801520
£907.37
2   SEAL FLUE COWL
Worcester part no. 87186803150
£54.52
3   SCREW HEX SLOT M8X20 8.8ZP
Worcester part no. 29111312420
£3.76
4 Part number 87161076970, THERMOSTAT POCKET ASSEMBLY THERMOSTAT POCKET ASSEMBLY
Worcester part no. 87161076970
£41.50
5 Part number 87161550470, STEEL SPLIT PIN 45mm X 1.5mm STEEL SPLIT PIN 45MM X 1.5MM
Worcester part no. 87161550470
£2.95
6   SCREW M5 X 20 CAP S/S
Worcester part no. 29180701620
£3.03
7 Part number 29150110060, NUT M5 NUT M5
Worcester part no. 29150110060
£2.56

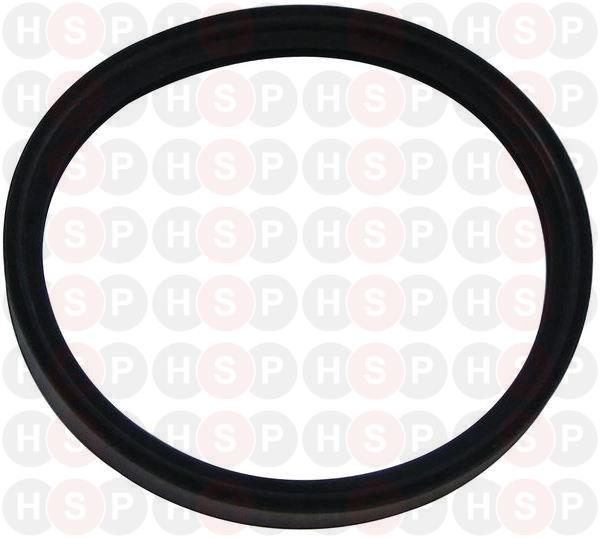

8 Part number 87161098010, FLUE SEAL MANIFOLD FLUE SEAL MANIFOLD
Worcester part no. 87161098010
£7.07
9   MANIFOLD DOOR
Worcester part no. 87186802240
£147.57
10 Part number 29123011520, NOW USE 29124511520 SCREW M5 X 10 POZI PAN HD CLEAR PASS NOW USE 29124511520 SCREW M5 X 10 POZI PAN HD CLEAR PASS
Worcester part no. 29123011520

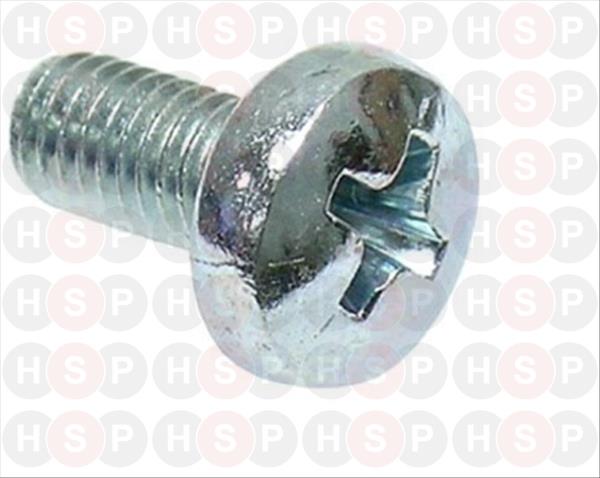

10 Part number 29124511520, SCREW M5 X 10 PAN HEAD POZI ZP BEFORE FD005 SCREW M5 X 10 PAN HEAD POZI ZP BEFORE FD005
Worcester part no. 29124511520
£2.63
11   SPRING BAFFLE
Worcester part no. 87161095260
£28.49
12   PLUG 1/8"
Worcester part no. 87161081080
£13.20
13 Part number 77470098290, SEAL SHE 25 TUBES FKM50 SEAL SHE 25 TUBES FKM50
Worcester part no. 77470098290
£115.43
