WORCESTER
CAMRAY 5 COMBI 70 7716110014 - (Heat Exchanger)
Appliance Code: 7716110014

Appliance Diagram


Heat Exchanger diagram for Worcester Camray 5 Combi 70 7716110014Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161153120, OIL HOSE HNBR 900MM OIL HOSE HNBR 900MM
Worcester part no. 87161153120		 £21.86
0   TANK INSULATION
Worcester part no. 87161100610		 £17.35
1   HEAT EXCHANGER
Worcester part no. 87161100710
2   C5C90E INSULATION SET
Worcester part no. 87161100600		 £19.46
3   RIELLO BURNER COMPLETE C5C90
Worcester part no. 87161089100
4 Part number 87161080510, BURNER FLANGE BURNER FLANGE
Worcester part no. 87161080510		 £20.88
5 Part number 87161072420, GASKET G2,3,5 FLANGE GASKET G2,3,5 FLANGE
Worcester part no. 87161072420		 £7.95
6   COMBUSTION CHAMBER BASE INSULATION
Worcester part no. 87161072310		 £12.21
7   HEAT SHIELD
Worcester part no. 87161071590		 £2.54
8   C5C90E INSULATION SET
Worcester part no. 87161100600		 £19.46
9 Part number 87161407330, ROPE-THERMOSEAL TYPE6 19MM DIA ROPE-THERMOSEAL TYPE6 19MM DIA
Worcester part no. 87161407330		 £25.92
10   INSPECTION COVER INSULATION (CERABOARD)
Worcester part no. 87161071490		 £5.19
11 Part number 87161072440, BURNER AIR DUCT BURNER AIR DUCT
Worcester part no. 87161072440		 £19.30

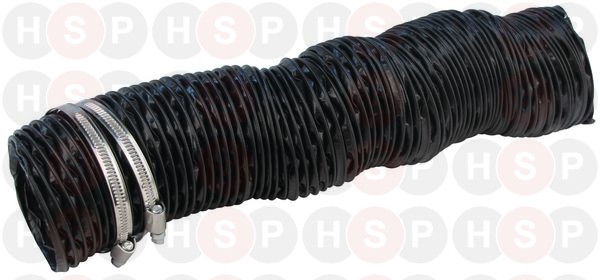

12 Part number 87161082800, HOSE CLIP 60MM-80MM HOSE CLIP 60MM-80MM
Worcester part no. 87161082800		 £4.41
13   SCREW M5 X 35 CHEESE HD
Worcester part no. 29100111680		 £3.78
14   WASHER 3/16 X 1" STEEL
Worcester part no. 87161072990		 £3.78
15   SET SCREW M10 X 16
Worcester part no. 29110607550		 £3.78
16 Part number 29150110090, NUT M8 FULL HEX M/S ZC PL NUT M8 FULL HEX M/S ZC PL
Worcester part no. 29150110090		 £4.08
17 Part number 29124511580, SCREW M5 X 16MM POZI PAN HEAD SCREW M5 X 16MM POZI PAN HEAD
Worcester part no. 29124511580		 £2.00
18 Part number 29110612440, BOLT M8 X 25 HEX HEAD BOLT M8 X 25 HEX HEAD
Worcester part no. 29110612440		 £3.78
19 Part number 87161080530, NUT BURNER LOCATION NUT BURNER LOCATION
Worcester part no. 87161080530		 £3.78
20 Part number 29160110150, WASHER M8 FORM A MS ZINC PLATE WASHER M8 FORM A MS ZINC PLATE
Worcester part no. 29160110150		 £1.99
21   BASE TRAY
Worcester part no. 87161084250		 £20.37
22 Part number 29150110100, NUT M10 NUT M10
Worcester part no. 29150110100		 £2.95
23 Part number 87161084850, 1/2" DRAIN COCK 1/2" DRAIN COCK
Worcester part no. 87161084850		 £11.37
