WORCESTER
CAMRAY 25/32 SYSTEM (AUG 2007 ONWARDS) 7716100123 - (Secondary Heat Exchanger)
Appliance Code: 7716100123

Appliance Diagram

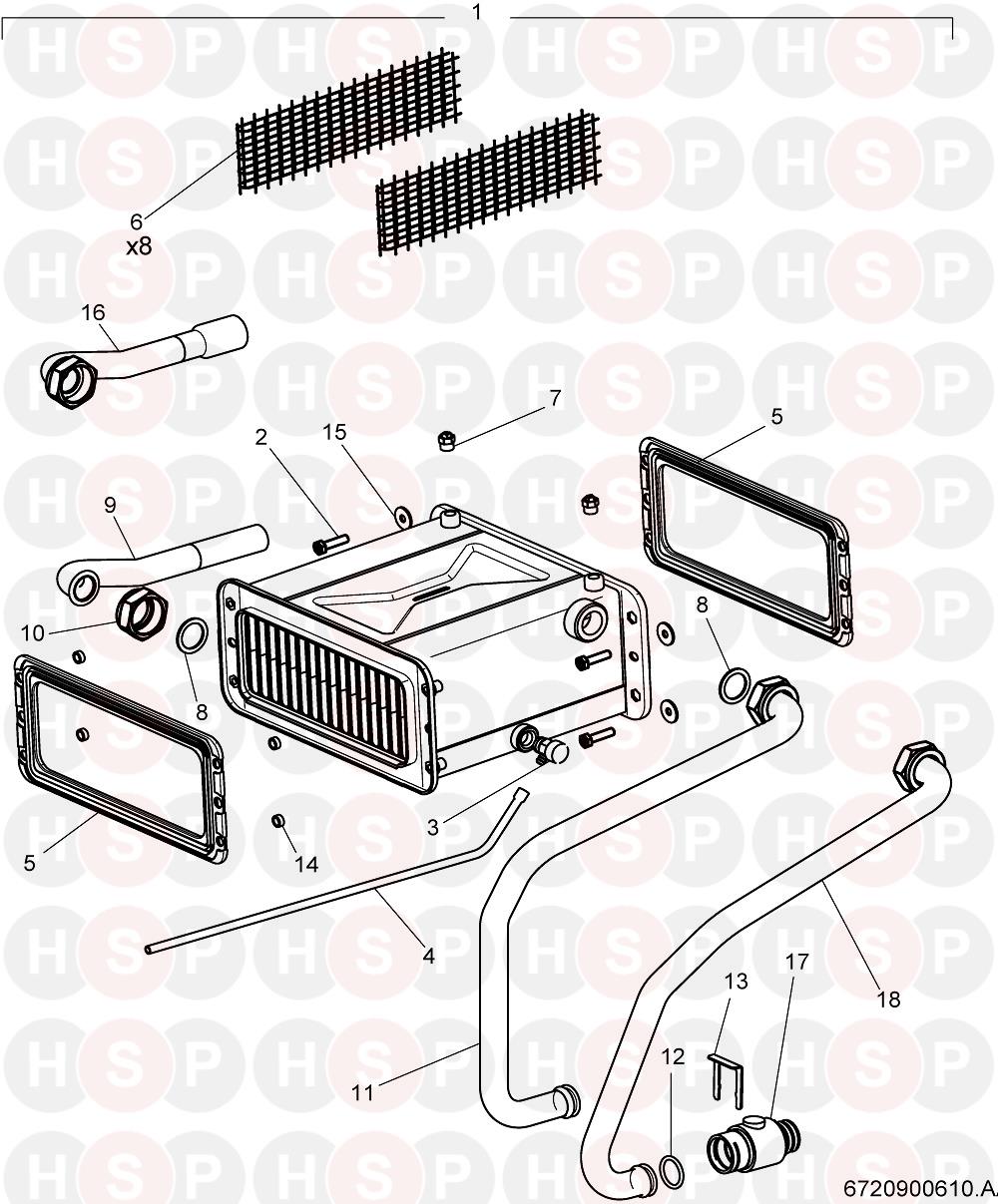

Secondary Heat Exchanger diagram for Worcester Camray 25/32 System (Aug 2007 Onwards) 7716100123Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   SECONDARY HEAT EXCHANGER FINAL ASSEMBLY AFTER FD783
Worcester part no. 87161124300
£1,099.23
2 Part number 87161130660, SCREW HEX Z M6 X 25 8.8 ZP AFTER FD783 SCREW HEX Z M6 X 25 8.8 ZP AFTER FD783
Worcester part no. 87161130660
£3.00
3 Part number 87161405160, AIR VENT MANUAL 1/4 BSP AIR VENT MANUAL 1/4 BSP
Worcester part no. 87161405160
£10.20
4 Part number 87161412190, BOILER DRAIN TUBE BOILER DRAIN TUBE
Worcester part no. 87161412190
£6.54
5 Part number 87161129540, SEAL SHE 16 TUBES AFTER FD783 SEAL SHE 16 TUBES AFTER FD783
Worcester part no. 87161129540
£76.24
6 Part number 87161081050, BAFFLE DOUBLE SECONDARY HEAT EXCHANGER BAFFLE DOUBLE SECONDARY HEAT EXCHANGER
Worcester part no. 87161081050
£22.91
7 Part number 87161402380, AIR VENT 1/8 BSP AIR VENT 1/8 BSP
Worcester part no. 87161402380
£17.04
8 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200
£2.79
11   PIPE - SECONDARY TO PRIMARY
Worcester part no. 87161128110
£35.16
12 Part number 87161408260, O-RING 3.0 SEC X 21.5 I/D E.P. O-RING 3.0 SEC X 21.5 I/D E.P.
Worcester part no. 87161408260
£2.80
13 Part number 87161483220, CLIP - RETAINING CLIP - RETAINING
Worcester part no. 87161483220
£3.03
14 Part number 87161134500, COWL SPACER COWL SPACER
Worcester part no. 87161134500
£10.00
15 Part number 29160118840, WASHER 1/4" X 3/4" X 16 GAUGE WASHER 1/4" X 3/4" X 16 GAUGE
Worcester part no. 29160118840
£1.25
16   PIPE CENTRAL HEATING RETURN EXPANDED
Worcester part no. 87161128660
£28.06
