WORCESTER
9.24 OF ELECTRONIC - (Assembly 2)
Appliance Code: 47-311-04

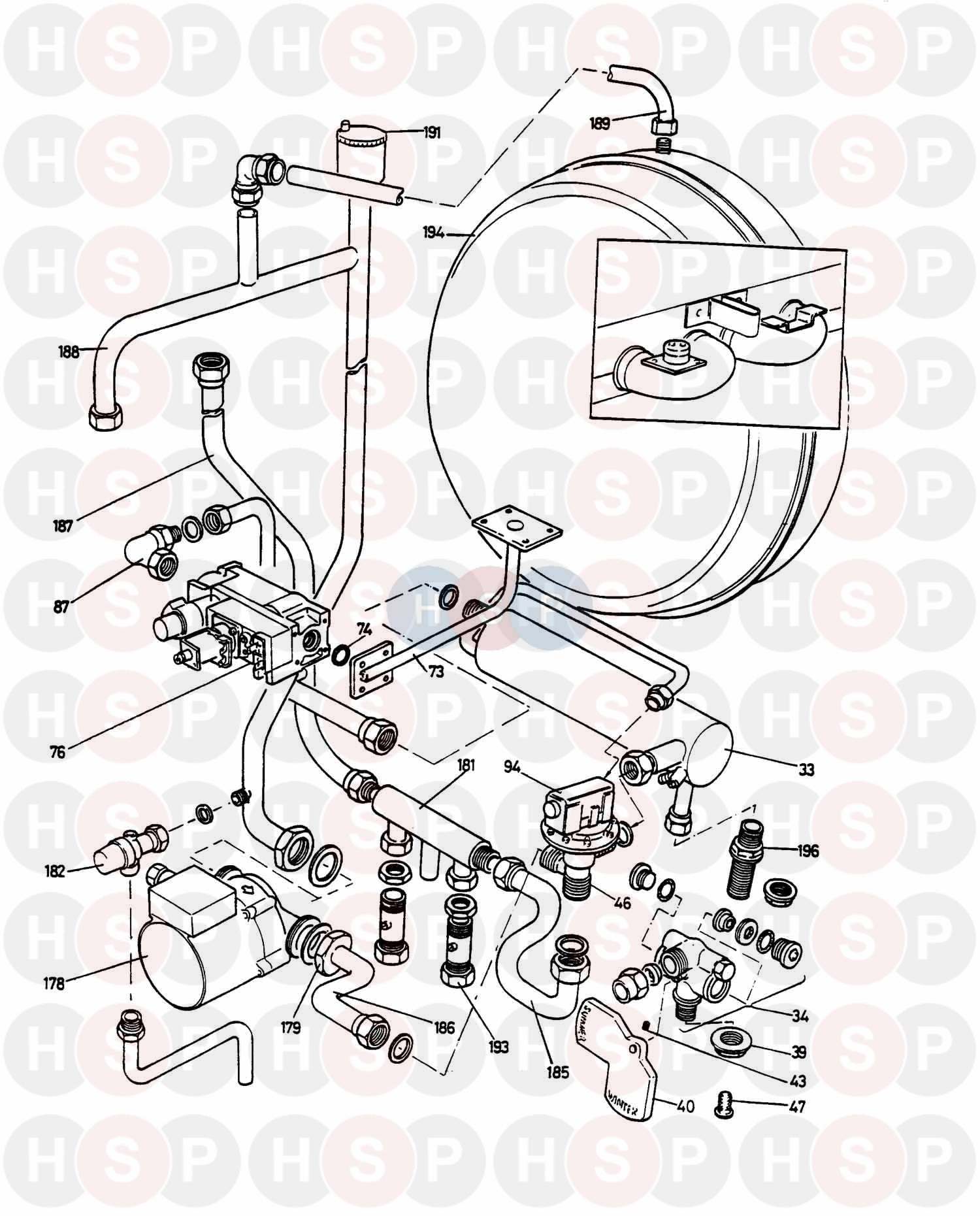

Appliance Diagram


Assembly 2 diagram for Worcester 9.24 Of ElectronicClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200		 £2.79
0   OBSOLETE PIPE - GAS INLET 031
Worcester part no. 87161214000
0   OBSOLETE HARNESS CH SENSOR OF/BF ELEC +
Worcester part no. 87161208820
1   OBSOLETE
Worcester part no. ZKLAB425
2   OBSOLETE
Worcester part no. SSA7835/9
6   OBSOLETE
Worcester part no. 87161011090
10   OBSOLETE FRONT PANEL
Worcester part no. 87161205570
11   OBSOLETE
Worcester part no. 87161411540
13   OBSOLETE
Worcester part no. SMP5060/10
18   NOW USE 29101011520 SCREW M5X10MM SLOTTED P/H M/S
Worcester part no. ZGSCR080
33   OBSOLETE DOMESTIC HEAT EX ASSY 9.24 MK2
Worcester part no. 87161206470
40   OBSOLETE KNOB
Worcester part no. 87161411170
43   OBSOLETE
Worcester part no. ZGSCR239
46   OBSOLETE DIVERTER VALVE REF:- D2044
Worcester part no. 87161424500
47 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
58   OBSOLETE
Worcester part no. SMP3280/20
59 Part number 87161428090, OBSOLETE HEAT EXCHANGER PR 25/243 OBSOLETE HEAT EXCHANGER PR 25/243
Worcester part no. 87161428090
60   OBSOLETE
Worcester part no. 87161205560
61   J BOLT ZINC PLT O-F 924 4X93
Worcester part no. 87161405410
63   OBSOLETE SCREW M3 X 6 TAPTITE RECESSED PAN HEAD
Worcester part no. 99021102
64   OBSOLETE
Worcester part no. ZGSCR197
65   OBSOLETE MACHINE SCREW M5 X 16 SLOTTED PAN HEAD
Worcester part no. 2003400
66   OBSOLETE PRECISION SCREW M5 X 10 HEXAGON/SLOTTED HEAD
Worcester part no. S26520
67   NUT M4 MS WING ZN PL TABLE 1
Worcester part no. 29151911040
68   OBSOLETE FULL NUT M5 HEXAGON STEEL GRADE 8 BS3692
Worcester part no. 123400
69   OBSOLETE BRIGHT WASHER M4 FORM A - 4.3 X 9 X 0.8
Worcester part no. 163300
70   OBSOLETE BRIGHT WASHER M5 FORM A - 5.3 X 10 X 1 THICK
Worcester part no. 163400
73   GAS MANIFOLD - VALVE TO BURNER
Worcester part no. 87161430060
73   OBSOLETE
Worcester part no. 87161430360
74 Part number 87161408210, O-RING 3.53 X 25.8 I/D H-NITRILE O-RING 3.53 X 25.8 I/D H-NITRILE
Worcester part no. 87161408210
75 Part number 87161408360, O-RING 12 X 4 I/D HIGH NITRILE O-RING 12 X 4 I/D HIGH NITRILE
Worcester part no. 87161408360
76 Part number 87161567370, OBSOLETE GAS VALVE OBSOLETE GAS VALVE
Worcester part no. 87161567370
76   OBSOLETE VALVE-GAS V8600N2015
Worcester part no. 87161567180
77   OBSOLETE PILOT FEED TUBE ASSEMBLY
Worcester part no. 87161205550
79   OBSOLETE PILOT SHIELD 9.24
Worcester part no. 87161005330
81   NOW USE Q309A2747 THERMOCOUPLE - HONEYWELL
Worcester part no. 450010479
82 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
86 Part number 87161426350, Pilot burner q359a1041 PILOT BURNER Q359A1041
Worcester part no. 87161426350
88 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
90   SCREW SPECIAL 3-3345 M5 X 24LG
Worcester part no. 87161550100
94 Part number 87161208330, MICRO SWITCH & HARNESS MICRO SWITCH & HARNESS
Worcester part no. 87161208330
103   OBSOLETE
Worcester part no. SMP5347/0
104   OBSOLETE
Worcester part no. SMP5022/10
109   OBSOLETE
Worcester part no. 87161213950
116 Part number 87161209090, HARNESS POTENTIOMETER HARNESS POTENTIOMETER
Worcester part no. 87161209090		 £13.88
117 Part number 87161410680, POTENTIOMETER ADJUSTER - NYLON POTENTIOMETER ADJUSTER - NYLON
Worcester part no. 87161410680		 £2.91
118 Part number 87161410860, KNOB CONTROL KNOB CONTROL
Worcester part no. 87161410860
120   OBSOLETE FACIA STOP - RUBBER
Worcester part no. 87161407170
122 Part number 87161463040, OBSOLETE MOTHER DRIVER BOARD W4115B1226 OBSOLETE MOTHER DRIVER BOARD W4115B1226
Worcester part no. 87161463040
122   OBSOLETE DRIVER/ELECTRONIC W9335B1039
Worcester part no. 87161463240
125 Part number 87161212110, Interrupter lead (924 of/bf) INTERRUPTER LEAD (924 OF/BF)
Worcester part no. 87161212110
125 Part number 87161208120, STAT OVERHEAT C/W LEADS (LONG) STAT OVERHEAT C/W LEADS (LONG)
Worcester part no. 87161208120
126   OBSOLETE SENSOR-REF: T7335A2002
Worcester part no. 87161423420
128 Part number 87161461060, SWITCH ARROW200400E839 AA 3POS SWITCH ARROW200400E839 AA 3POS
Worcester part no. 87161461060		 £13.95
129 Part number 87161423620, T/STAT T/DISC 60T13500103 T/STAT T/DISC 60T13500103
Worcester part no. 87161423620
140   HARNESS GAS VALVE OF/BF/RSFE (E+)
Worcester part no. 87161208760
145 Part number 87161411010, CLAMP CABLE TYPE KB2 INSULOID CLAMP CABLE TYPE KB2 INSULOID
Worcester part no. 87161411010		 £17.44
146 Part number 87161410600, PCB BLACK NYLON PILLARS AFTER FD989 PCB BLACK NYLON PILLARS AFTER FD989
Worcester part no. 87161410600		 £2.63
147   OBSOLETE STRAIGHT-THRU STRAIN RELIEF BUSHING BLACK NYL
Worcester part no. 68201112
148 Part number 87161411030, PLUG HOLE HEYCO DP500 PLUG HOLE HEYCO DP500
Worcester part no. 87161411030		 £3.88
149   STRAIN RELIEF BUSH 300-1141
Worcester part no. 87161411040		 £2.79
150   OBSOLETE
Worcester part no. ZDELE400
152   OBSOLETE
Worcester part no. 87161550280
156   OBSOLETE
Worcester part no. ZGSCR186
157 Part number 29124212250, SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X) SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X)
Worcester part no. 29124212250		 £2.45
158   OBSOLETE SCREW M4 X 10 TAPTITE RECESSED PAN HEAD
Worcester part no. 766290
159   OBSOLETE SCREW M4 X 8 TAPTITE RECESSED PAN HEAD
Worcester part no. 766280
160 Part number 87161550220, NUT SPIRE SNU3374 NUT SPIRE SNU3374
Worcester part no. 87161550220
161   OBSOLETE NUT
Worcester part no. ZGNUT022
163   OBSOLETE FULL NUT 4BA HEXAGON - BRASS BS57 SELF COLOUR
Worcester part no. 1000004100
164   OBSOLETE
Worcester part no. ZGNUT080
167   OBSOLETE WASHER 4BA FLAT BRASS
Worcester part no. 87161550030
169 Part number 77161920080, ELECTRONIC TIMER-S230E7 ELECTRONIC TIMER-S230E7
Worcester part no. 77161920080
170   T/BLOCK 12 WAY M WHITE
Worcester part no. 87161462510		 £5.80
171   OBSOLETE 240 280 350 PROG MANUAL (ROUND BUTTON)
Worcester part no. 87161450950
178 Part number 87161431060, PUMP PUMP
Worcester part no. 87161431060
179   CAP NUT - 1 1/2" BSP ( PUMP NUT )
Worcester part no. 87161405150		 £7.95
182   OBSOLETE
Worcester part no. 87161563180
183 Part number 87161483290, CIRCLIP ANDERTON 1300-17 CIRCLIP ANDERTON 1300-17
Worcester part no. 87161483290
184 Part number 87161408080, O-RING 2.40 X 7.60 ID NITRILE O-RING 2.40 X 7.60 ID NITRILE
Worcester part no. 87161408080		 £2.56
186   OBSOLETE PIPE - PUMP TO DIV. VALVE 0301
Worcester part no. 87161205870
187   OBSOLETE PIPE - HEAT EX. TO MANIFOLD 0311
Worcester part no. 87161210310
188   OBSOLETE PIPE - PUMP TO HEAT EXCH. 0310
Worcester part no. 87161205650
189   OBSOLETE PIPE - EXPANSION TANK TO J
Worcester part no. 87161205640
191 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
192 Part number 87161424160, VALVE PR.REL.1/2 X15mm X 1/8 VALVE PR.REL.1/2 X15MM X 1/8
Worcester part no. 87161424160		 £13.20
193 Part number 87161424350, OBSOLETE VALVE 22mm BULKHEAD (BALL TYPE) OBSOLETE VALVE 22MM BULKHEAD (BALL TYPE)
Worcester part no. 87161424350
194 Part number 87161425130, OBSOLETE Vessel-expansion-10lt(387x120) OBSOLETE VESSEL-EXPANSION-10LT(387X120)
Worcester part no. 87161425130
195 Part number 87161423260, PRESSURE GAUGE & WASHER PRESSURE GAUGE & WASHER
Worcester part no. 87161423260
196   OBSOLETE
Worcester part no. 87161405300
198   OBSOLETE
Worcester part no. ZGSCR159
199   OBSOLETE
Worcester part no. ZGRAW001
200   OBSOLETE VALVE 15MM X 1/2F SWIVEL
Worcester part no. 87161424270
201   OBSOLETE
Worcester part no. ZBUNC195
206   OBSOLETE
Worcester part no. ZKLAB525
207   OBSOLETE LABEL
Worcester part no. ZKLAB024
208   OBSOLETE LABEL TIE ON - FITTING MAINS PLUG
Worcester part no. 87161441160
209   OBSOLETE
Worcester part no. ZKLIT525
210   OBSOLETE
Worcester part no. ZKLIT590
