WORCESTER
9.24 ELECTRONIC RSF ECONOMY - (Assembly 3)
Appliance Code: 47-311-07

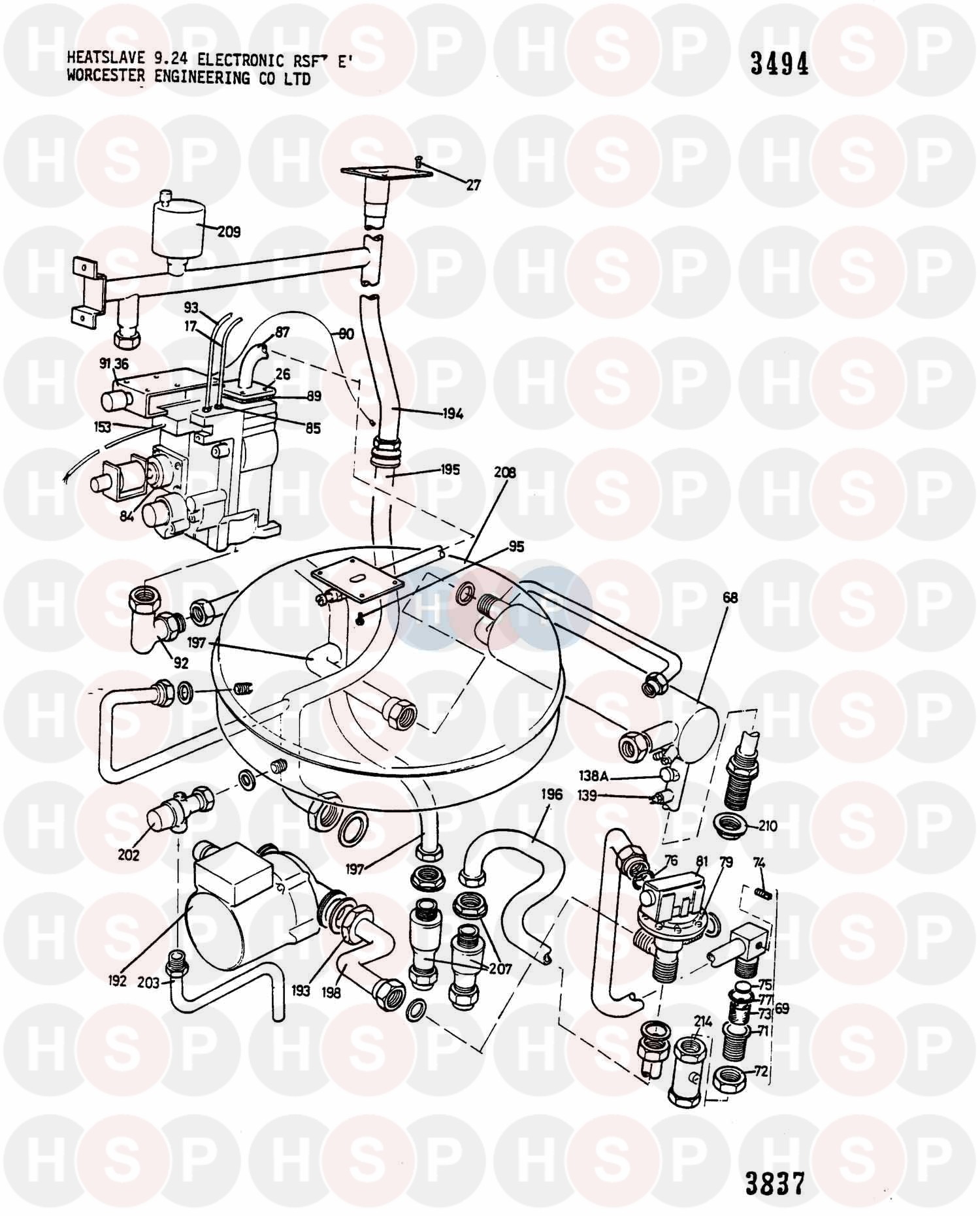

Appliance Diagram


Assembly 3 diagram for Worcester 9.24 Electronic RSF EconomyClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE
Worcester part no. ZKLAB425
10   OBSOLETE GASKET-SIL.SP.120X120MMX3MM
Worcester part no. 87161407440
11   OBSOLETE
Worcester part no. 87161213890
13   OBSOLETE
Worcester part no. SMP3605/30
14   OBSOLETE TUBE-SIL.RUB3MMIDX1.75MMWALLTH
Worcester part no. 87161407110
14 Part number 87161010790, WHITE SILICONE TUBING 5M LONG WHITE SILICONE TUBING 5M LONG
Worcester part no. 87161010790
15   OBSOLETE TUBE-SIL.RUB3MMODX1MMWALLORNGE
Worcester part no. 87161407660
19   OBSOLETE FAN ASSEMBLY
Worcester part no. 87161213900
19   OBSOLETE FAN
Worcester part no. ZAMAJ049
22   OBSOLETE INJECTOR 1/8 X 60DEG X 4.3D
Worcester part no. 87161563420
23 Part number 87161563000, INJECTOR(PILOT) INJECTOR(PILOT)
Worcester part no. 87161563000		 £3.20
24 Part number 87161421240, ELECTRODE 60974 ELECTRODE 60974
Worcester part no. 87161421240
25   STRAIN RELIEF BUSH 300-1141
Worcester part no. 87161411040		 £2.79
26   OBSOLETE
Worcester part no. ZGSCR070
27   OBSOLETE SCREW M4 X 10 TAPTITE RECESSED PAN HEAD
Worcester part no. 766290
28   OBSOLETE PRECISION SCREW M5 X 10 HEXAGON/SLOTTED HEAD
Worcester part no. S26520
29   NOW USE 29101011520 SCREW M5X10MM SLOTTED P/H M/S
Worcester part no. ZGSCR080
30   OBSOLETE MACHINE SCREW M5 X 16 SLOTTED PAN HEAD
Worcester part no. 2003400
31 Part number ZGSCR015, NOW USE 29100911970 SCREW MACHINE M6X16MM SLOTTED NOW USE 29100911970 SCREW MACHINE M6X16MM SLOTTED
Worcester part no. ZGSCR015
35   NUT M4 MS WING ZN PL TABLE 1
Worcester part no. 29151911040
36   OBSOLETE
Worcester part no. ZGNUT025
40 Part number 87161407650, D SECT-SIL.SPONGE 13MM X 7MM RED D SECT-SIL.SPONGE 13MM X 7MM RED
Worcester part no. 87161407650
46   M5 X 200 CH HD SLOT MACH SCS ZP
Worcester part no. ZGSCR190
57   OBSOLETE FULL NUT M5 HEXAGON STEEL GRADE 8 BS3692
Worcester part no. 123400
59   OBSOLETE FULL NUT M6 HEXAGON STEEL GRADE 8 BS3692
Worcester part no. 123500
60 Part number ZGWSH014, NOW USE 29160110140 WASHER 6MM ID FLAT Z/P M/S NOW USE 29160110140 WASHER 6MM ID FLAT Z/P M/S
Worcester part no. ZGWSH014
62   OBSOLETE
Worcester part no. SPK0085
68   OBSOLETE DOMESTIC HEAT EX ASSY 9.24 MK2
Worcester part no. 87161206470
73 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
75 Part number 87161410540, FLOW REGULATOR TYPE E-W 8 LITRE WHITE FLOW REGULATOR TYPE E-W 8 LITRE WHITE
Worcester part no. 87161410540		 £6.39
76 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
79   OBSOLETE DIVERTER VALVE REF:- D2044
Worcester part no. 87161424500
81   OBSOLETE MICRO-SWITCH ASSY(V32VLV)
Worcester part no. 87161461120
81 Part number 87161208330, MICRO SWITCH & HARNESS MICRO SWITCH & HARNESS
Worcester part no. 87161208330
84   OBSOLETE VALVE-GAS V8600N2015
Worcester part no. 87161567180
84 Part number 87161567120, OBSOLETE Gas valve 240v vr4920m2037 OBSOLETE GAS VALVE 240V VR4920M2037
Worcester part no. 87161567120
86   OBSOLETE
Worcester part no. ZBUNC092
87   OBSOLETE
Worcester part no. 87161430270
88 Part number 87161408360, O-RING 12 X 4 I/D HIGH NITRILE O-RING 12 X 4 I/D HIGH NITRILE
Worcester part no. 87161408360
89 Part number 87161408210, O-RING 3.53 X 25.8 I/D H-NITRILE O-RING 3.53 X 25.8 I/D H-NITRILE
Worcester part no. 87161408210
91 Part number 87161421260, SPARK IGNITOR SPARK IGNITOR
Worcester part no. 87161421260
93   NOW USE Q309A2747 THERMOCOUPLE - HONEYWELL
Worcester part no. 450010479
94   SCREW SPECIAL 3-3345 M5 X 24LG
Worcester part no. 87161550100
96 Part number 87161426340, OBSOLETE PILOT BURNER Q389A1006 OBSOLETE PILOT BURNER Q389A1006
Worcester part no. 87161426340
96 Part number 87161426350, Pilot burner q359a1041 PILOT BURNER Q359A1041
Worcester part no. 87161426350
109 Part number 29124212100, SCREW ISO NO 6B X 9.5 RECESSED SCREW ISO NO 6B X 9.5 RECESSED
Worcester part no. 29124212100		 £2.56
110   OBSOLETE 2.8MM HSS JOBBER DRILL
Worcester part no. 7181WO00330
112   OBSOLETE
Worcester part no. SMP5347/0
114   OBSOLETE
Worcester part no. 87161213950
115   OBSOLETE
Worcester part no. 87161411540
126 Part number 87161209090, HARNESS POTENTIOMETER HARNESS POTENTIOMETER
Worcester part no. 87161209090		 £13.88
127 Part number 87161410860, KNOB CONTROL KNOB CONTROL
Worcester part no. 87161410860
132 Part number 87161410680, POTENTIOMETER ADJUSTER - NYLON POTENTIOMETER ADJUSTER - NYLON
Worcester part no. 87161410680		 £2.91
134 Part number 87161423260, PRESSURE GAUGE & WASHER PRESSURE GAUGE & WASHER
Worcester part no. 87161423260
135 Part number 87161463040, OBSOLETE MOTHER DRIVER BOARD W4115B1226 OBSOLETE MOTHER DRIVER BOARD W4115B1226
Worcester part no. 87161463040
135   OBSOLETE DRIVER/ELECTRONIC W9335B1039
Worcester part no. 87161463240
138 Part number 87161423430, OBSOLETE T/stat ranco l5-p1042 OBSOLETE T/STAT RANCO L5-P1042
Worcester part no. 87161423430
139   OBSOLETE SENSOR-REF: T7335A2002
Worcester part no. 87161423420
142 Part number 87161461060, SWITCH ARROW200400E839 AA 3POS SWITCH ARROW200400E839 AA 3POS
Worcester part no. 87161461060		 £13.95
150 Part number 87161463130, OBSOLETE Fan speed cont board OBSOLETE FAN SPEED CONT BOARD
Worcester part no. 87161463130
153   HARNESS GAS VALVE OF/BF/RSFE (E+)
Worcester part no. 87161208760
154 Part number 87161423620, T/STAT T/DISC 60T13500103 T/STAT T/DISC 60T13500103
Worcester part no. 87161423620
155 Part number 87161461380, DIFFERENTIAL PRESSURE SWITCH DIFFERENTIAL PRESSURE SWITCH
Worcester part no. 87161461380
159 Part number 87161411010, CLAMP CABLE TYPE KB2 INSULOID CLAMP CABLE TYPE KB2 INSULOID
Worcester part no. 87161411010		 £17.44
160 Part number 87161410600, PCB BLACK NYLON PILLARS AFTER FD989 PCB BLACK NYLON PILLARS AFTER FD989
Worcester part no. 87161410600		 £2.63
161   OBSOLETE STRAIGHT-THRU STRAIN RELIEF BUSHING BLACK NYL
Worcester part no. 68201112
162 Part number 87161411030, PLUG HOLE HEYCO DP500 PLUG HOLE HEYCO DP500
Worcester part no. 87161411030		 £3.88
163   OBSOLETE
Worcester part no. ZDELE400
168 Part number 87161410500, GROMMET NYLON OPEN-CLOSE GROMMET NYLON OPEN-CLOSE
Worcester part no. 87161410500		 £6.39
171   OBSOLETE FACIA STOP - RUBBER
Worcester part no. 87161407170
172   OBSOLETE
Worcester part no. 87161550280
173   OBSOLETE MACHINE SCREW M3 X 16 RECESSED PAN HEAD
Worcester part no. 732310
177 Part number 29124212250, SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X) SCREW NO.8X1/2 F/H TYPE B SELF TAP (10X)
Worcester part no. 29124212250		 £2.45
179   OBSOLETE SCREW M4 X 8 TAPTITE RECESSED PAN HEAD
Worcester part no. 766280
180 Part number 87161550220, NUT SPIRE SNU3374 NUT SPIRE SNU3374
Worcester part no. 87161550220
183   OBSOLETE FULL NUT 4BA HEXAGON - BRASS BS57 SELF COLOUR
Worcester part no. 1000004100
184   OBSOLETE
Worcester part no. ZGNUT080
187   OBSOLETE WASHER 4BA FLAT BRASS
Worcester part no. 87161550030
188   OBSOLETE BRIGHT WASHER M5 FORM A - 5.3 X 10 X 1 THICK
Worcester part no. 163400
189   OBSOLETE PROGRAMMER SINGLE CHANNEL - WORCESTER HEAT SY
Worcester part no. 77161920150
190   T/BLOCK 12 WAY M WHITE
Worcester part no. 87161462510		 £5.80
191   OBSOLETE 240 280 350 PROG MANUAL (ROUND BUTTON)
Worcester part no. 87161450950
192 Part number 87161431060, PUMP PUMP
Worcester part no. 87161431060
193   CAP NUT - 1 1/2 BSP ( PUMP NUT )
Worcester part no. 87161405150		 £7.95
194   OBSOLETE
Worcester part no. SSA5143/10
197 Part number 87161205540, PIPE - HEAT EXCHANGER TO MANIFOLD 030 PIPE - HEAT EXCHANGER TO MANIFOLD 030
Worcester part no. 87161205540
198   OBSOLETE PIPE - PUMP TO DIV. VALVE 0301
Worcester part no. 87161205870
202 Part number 87161424160, VALVE PR.REL.1/2 X15MM X 1/8 VALVE PR.REL.1/2 X15MM X 1/8
Worcester part no. 87161424160		 £13.20
207 Part number 87161424350, OBSOLETE VALVE 22MM BULKHEAD (BALL TYPE) OBSOLETE VALVE 22MM BULKHEAD (BALL TYPE)
Worcester part no. 87161424350
208 Part number 87161425090, OBSOLETE Vessel-expansion-10lt(324x140) (ss kit) OBSOLETE VESSEL-EXPANSION-10LT(324X140) (SS KIT)
Worcester part no. 87161425090
209 Part number 87161405000, AIR-VENT AUTOMATIC 3/8 (SS KIT) AIR-VENT AUTOMATIC 3/8 (SS KIT)
Worcester part no. 87161405000		 £11.25
210   OBSOLETE
Worcester part no. ZCCMP070
212   OBSOLETE
Worcester part no. ZGSCR159
213   OBSOLETE
Worcester part no. ZGRAW001
217   OBSOLETE
Worcester part no. ZKLAB205
218   OBSOLETE
Worcester part no. ZKLAB460
220   OBSOLETE
Worcester part no. ZKLAB191
221   OBSOLETE
Worcester part no. ZKLAB605
222   OBSOLETE
Worcester part no. ZKLAB525
223   OBSOLETE LABEL
Worcester part no. ZKLAB024
224   OBSOLETE LABEL TIE ON - FITTING MAINS PLUG
Worcester part no. 87161441160
225   OBSOLETE
Worcester part no. ZKLIT525
226   OBSOLETE 9.24 RSF'E MK2 SERV & INST MANUAL
Worcester part no. 87161450960
