WORCESTER
26 CDI XTRA LPG - (Electrical)
Appliance Code: 47-311-42

Appliance Diagram


Electrical diagram for Worcester 26 CDI Xtra LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 77161922060, CDI-FUSE PACK CDI-FUSE PACK
Worcester part no. 77161922060		 £5.69
Part number 87161212600, HARNESS EARTH CDI & I RANGE HARNESS EARTH CDI & I RANGE
Worcester part no. 87161212600		 £12.80

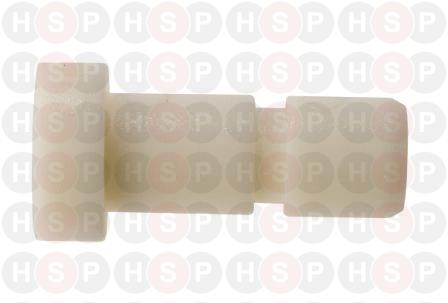

  PCB SUPPORT PILLAR TCBS-8-01
Worcester part no. 87161410760		 £2.50
Part number 87161560000, FUSE 2A SLOW BLOW 20 X 5MM FUSE 2A SLOW BLOW 20 X 5MM
Worcester part no. 87161560000		 £3.20
Part number 87161560010, FUSE 1.25A 20MM ANTI-SURGE FUSE 1.25A 20MM ANTI-SURGE
Worcester part no. 87161560010		 £2.80
Part number 87434061450, SEALING SCREW SEALING SCREW
Worcester part no. 87434061450		 £3.36
1 Part number 87483003130, P.C.B. HEATRONIC II P.C.B. HEATRONIC II
Worcester part no. 87483003130		 £189.83
2 Part number 87161423000, PRESSURE GAUGE 4 BAR DARK GREY PRESSURE GAUGE 4 BAR DARK GREY
Worcester part no. 87161423000		 £28.04
3 Part number 87161410120, FACIA MAIN BODY FACIA MAIN BODY
Worcester part no. 87161410120

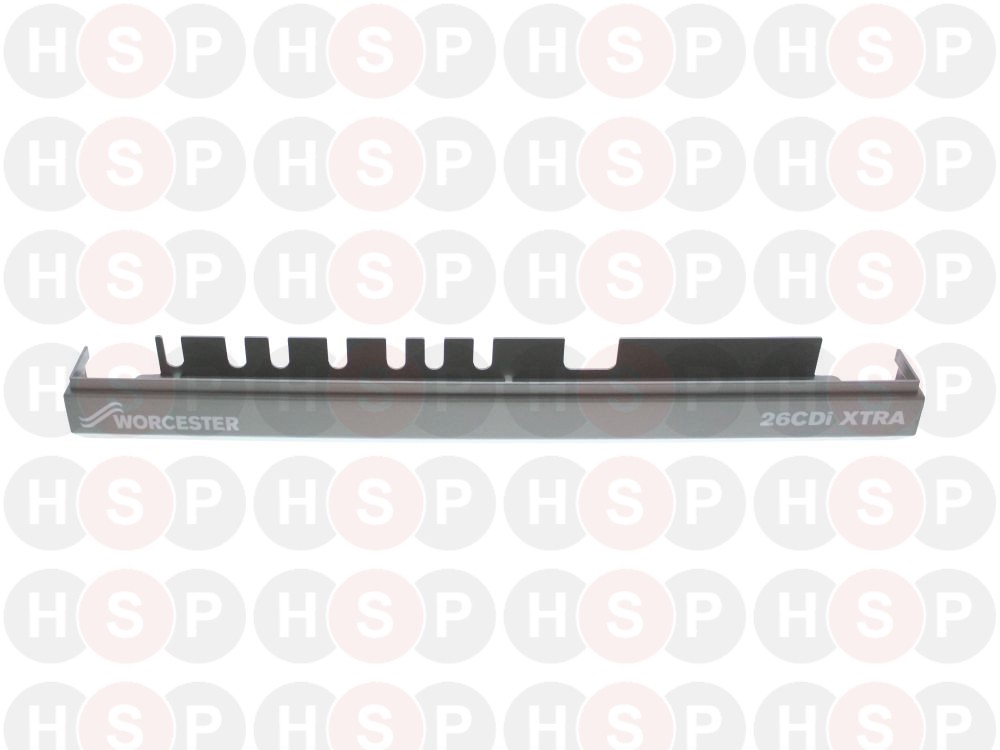

4 Part number 87161411740, FACIA PANEL BOTTOM 26CDI XTRA FACIA PANEL BOTTOM 26CDI XTRA
Worcester part no. 87161411740		 £37.63
5 Part number 87161410080, FACIA INSET PLATE FACIA INSET PLATE
Worcester part no. 87161410080		 £31.98
6 Part number 87161410440, CONTROL KNOB CONTROL KNOB
Worcester part no. 87161410440		 £4.92
7 Part number 87161410210, SELECTOR KNOB SELECTOR KNOB
Worcester part no. 87161410210		 £4.69
8 Part number 87161410190, RESET BUTTON RESET BUTTON
Worcester part no. 87161410190		 £3.04
9 Part number 87161410110, FACIA LIGHT INSERT FACIA LIGHT INSERT
Worcester part no. 87161410110		 £3.13
10 Part number 87161408070, O-RING 1.60 X 7.10 ID EP O-RING 1.60 X 7.10 ID EP
Worcester part no. 87161408070		 £2.62
11 Part number 29124212100, SCREW ISO NO 6B X 9.5 RECESSED SCREW ISO NO 6B X 9.5 RECESSED
Worcester part no. 29124212100		 £2.56
12 Part number 87161202290, HARNESS IGNITION ASSEMBLY HARNESS IGNITION ASSEMBLY
Worcester part no. 87161202290		 £16.67
13 Part number 87472012480, TRANSFORMER - BV066-0188.0 TRANSFORMER - BV066-0188.0
Worcester part no. 87472012480		 £35.47
14 Part number 87161410070, FACIA HINGE PIN FACIA HINGE PIN
Worcester part no. 87161410070		 £2.95
15 Part number 87161410670, ELECTRICAL BOX COVER ELECTRICAL BOX COVER
Worcester part no. 87161410670		 £14.74
16   PANEL FASTENER
Worcester part no. 87161410450		 £2.79
17 Part number 87161411510, POTENTIOMETER ADJUSTER - BLACK POTENTIOMETER ADJUSTER - BLACK
Worcester part no. 87161411510		 £4.08
18 Part number 87161203460, FACIA PLATE ASSEMBLY FACIA PLATE ASSEMBLY
Worcester part no. 87161203460		 £22.32
19 Part number 87161200480, HARNESS - MAIN OF/RSF HARNESS - MAIN OF/RSF
Worcester part no. 87161200480
