WORCESTER
24I RSF - (Pump 1B Hydraulics)
Appliance Code: 47-311-37

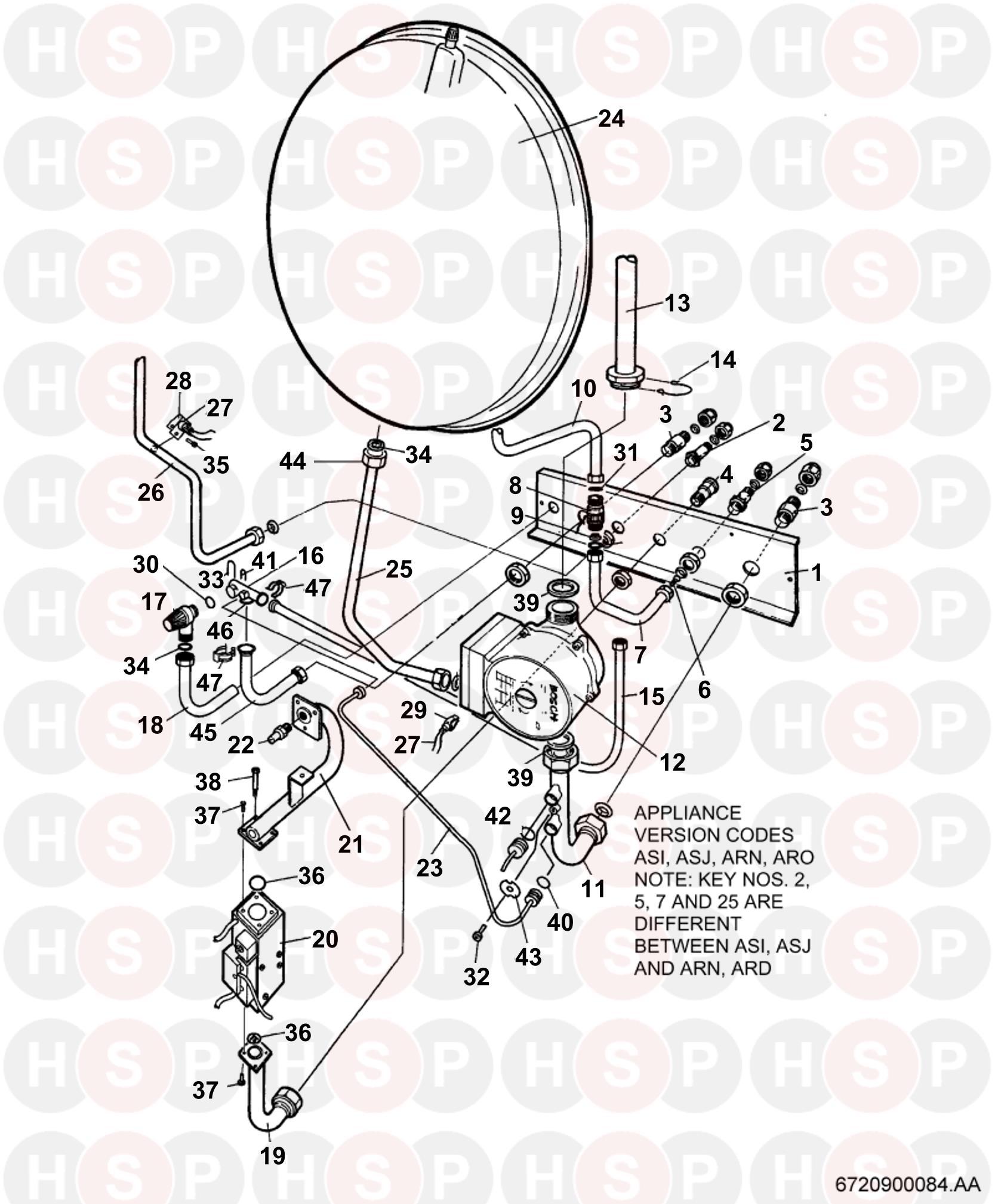

Appliance Diagram


Pump 1B Hydraulics diagram for Worcester 24i RSFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  G3/8 X G1/4 UNION
Worcester part no. 87161023400		 £5.57
Part number 87161201770, HARNESS-GAS VALVE HARNESS-GAS VALVE
Worcester part no. 87161201770		 £15.94
Part number 87161407050, SEAL-18mm TUBE SEAL-18MM TUBE
Worcester part no. 87161407050		 £6.91
1 Part number 87161002660, SERVICE CONNECTION PLATE SERVICE CONNECTION PLATE
Worcester part no. 87161002660		 £5.45
2   BLKHD UNION 15MM X 15MM
Worcester part no. 87161023500
3 Part number 87161424100, 18-22mm ISOLATING VALVE 18-22MM ISOLATING VALVE
Worcester part no. 87161424100		 £30.19
4 Part number 87161424240, GAS COCK 1/2" BSPT & G5/8 MA GAS COCK 1/2" BSPT & G5/8 MA
Worcester part no. 87161424240		 £14.90
5 Part number 87161023490, ISOLATOR VALVE 15mm ISOLATOR VALVE 15MM
Worcester part no. 87161023490		 £24.21
6 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
7 Part number 87161009640, PIPE - FLOW SWITCH INLET PIPE - FLOW SWITCH INLET
Worcester part no. 87161009640		 £15.18
7 Part number 87161023780, PIPE - FLOW SWITCH INLET PIPE - FLOW SWITCH INLET
Worcester part no. 87161023780		 £9.98
8 Part number 87161209710, HARNESS & FLOW SWITCH ASSEMBLY HARNESS & FLOW SWITCH ASSEMBLY
Worcester part no. 87161209710
9 Part number 87161410520, FLOW REG TYPE E-W 8L WHITE WITH ADAPTER FLOW REG TYPE E-W 8L WHITE WITH ADAPTER
Worcester part no. 87161410520		 £6.04
10 Part number 87161212230, PIPE - FLOW SWITCH OUTLET ASSY PIPE - FLOW SWITCH OUTLET ASSY
Worcester part no. 87161212230		 £13.87
11 Part number 87161215730, PRIMARY RETURN ASSEMBLY PRIMARY RETURN ASSEMBLY
Worcester part no. 87161215730
12 Part number 87161431070, NOW USE 8719119832 PUMP GRUNDFOS 59506606 NOW USE 8719119832 PUMP GRUNDFOS 59506606
Worcester part no. 87161431070
12   PUMP GRUNDFOS 59506606
Worcester part no. 8716119832
13 Part number 87161209680, PIPE - PUMP OUTLET ASSEMBLY PIPE - PUMP OUTLET ASSEMBLY
Worcester part no. 87161209680		 £22.46
14   CLIP - PUMP BULKHEAD
Worcester part no. 87161483160		 £4.15
15   PIPE - PRIMARY FLOW
Worcester part no. 87161215660		 £15.49
16 Part number 87161412210, PRIMARY FLOW MANIFOLD PRIMARY FLOW MANIFOLD
Worcester part no. 87161412210
17 Part number 87161424040, PRESSURE RELIEF VALVE 312438 PRESSURE RELIEF VALVE 312438
Worcester part no. 87161424040		 £16.89
18 Part number 87161013190, PIPE - PRESSURE RELIEF PIPE - PRESSURE RELIEF
Worcester part no. 87161013190		 £5.35
19 Part number 87161209660, PIPE - GAS INLET ASSEMBLY PIPE - GAS INLET ASSEMBLY
Worcester part no. 87161209660		 £20.18
20 Part number 87161424130, GAS VALVE - NG GAS VALVE - NG
Worcester part no. 87161424130		 £187.86
20 Part number 87161424300, GAS VALVE - 24I LPG GAS VALVE - 24I LPG
Worcester part no. 87161424300		 £165.94
21   BURNER MANIFOLD
Worcester part no. 87161430010		 £36.32
22 Part number 87161402090, MAIN BURNER INJECTOR - LPG MAIN BURNER INJECTOR - LPG
Worcester part no. 87161402090		 £6.75
22 Part number 87161402240, MAIN BURNER INJECTOR 4.3 DIA. MAIN BURNER INJECTOR 4.3 DIA.
Worcester part no. 87161402240		 £5.87
23 Part number 87161215780, BYPASS ASSEMBLY BYPASS ASSEMBLY
Worcester part no. 87161215780
24 Part number 87161425020, EXPANSION VESSEL EXPANSION VESSEL
Worcester part no. 87161425020		 £85.54
25 Part number 87161023800, PIPE - EXPANSION VESSEL PIPE - EXPANSION VESSEL
Worcester part no. 87161023800		 £15.18
26   PIPE - DOM HOT WATER OUT ASSY
Worcester part no. 87161023600		 £13.69
27 Part number 87161423840, CENTRAL HEATING SENSOR (PPS) CENTRAL HEATING SENSOR (PPS)
Worcester part no. 87161423840		 £8.96
28 Part number 87161483130, CLIP - DOMESTIC H.W. THERMISTOR CLIP - DOMESTIC H.W. THERMISTOR
Worcester part no. 87161483130		 £3.81
29 Part number 87161483030, PRIMARY H.W. THERMISTOR CLIP PRIMARY H.W. THERMISTOR CLIP
Worcester part no. 87161483030		 £2.11
30 Part number 87161156750, O-RING 16X2 (X1) O-RING 16X2 (X1)
Worcester part no. 87161156750		 £2.79
30 Part number 87161408140, O-RING 2.0 X 16.00 ID EP (10X) O-RING 2.0 X 16.00 ID EP (10X)
Worcester part no. 87161408140		 £2.79
31 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
31 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
32   SCREW M5X10MM HEX/SLOTTED HEAD
Worcester part no. 29111311520
33 Part number 87161483100, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483100		 £2.95
34 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
34 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
35 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
36 Part number 87161408270, O-RING 2.62X22.23 ID H-NITRILE O-RING 2.62X22.23 ID H-NITRILE
Worcester part no. 87161408270		 £2.79
37 Part number 29110511180, SCREW M4X8mm HEX HD SCR ZINC PLATED SCREW M4X8MM HEX HD SCR ZINC PLATED
Worcester part no. 29110511180		 £2.56
38 Part number 29110511340, SCREW M4 X 29 LG ZP HEX HEAD SCREW M4 X 29 LG ZP HEX HEAD
Worcester part no. 29110511340		 £2.73
39 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200		 £2.79
40 Part number 87161408170, O-RING 7X2,5 O-RING 7X2,5
Worcester part no. 87161408170		 £2.63
41 Part number 87161483230, CLIP - SMALL WIRE CLIP - SMALL WIRE
Worcester part no. 87161483230		 £2.84
42 Part number 87161408080, O-RING 2.40 X 7.60 ID NITRILE O-RING 2.40 X 7.60 ID NITRILE
Worcester part no. 87161408080		 £2.56
43   PIPE - RETAINER
Worcester part no. 87161013160		 £2.79
44 Part number 87161402840, NUT CAP 15mm NUT CAP 15MM
Worcester part no. 87161402840		 £2.96
45 Part number 87161013180, PRIMARY FLOW ELBOW PRIMARY FLOW ELBOW
Worcester part no. 87161013180
46 Part number 87161408200, O-RING 17.6 ID X 2.4 EP (10X) O-RING 17.6 ID X 2.4 EP (10X)
Worcester part no. 87161408200		 £2.79
47 Part number 87161483170, CLAMP SPRING CLAMP SPRING
Worcester part no. 87161483170		 £5.80
