WORCESTER
24I RSF - (Pump 1A Hydraulics)
Appliance Code: 47-311-37

Appliance Diagram


Pump 1A Hydraulics diagram for Worcester 24i RSFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 87161201770, HARNESS-GAS VALVE HARNESS-GAS VALVE
Worcester part no. 87161201770		 £15.94
Part number 87161407050, SEAL-18MM TUBE SEAL-18MM TUBE
Worcester part no. 87161407050		 £6.91
Part number 87161563710, G 3/8 X G 1/4 CONNECTOR G 3/8 X G 1/4 CONNECTOR
Worcester part no. 87161563710		 £7.48
1 Part number 87161002660, SERVICE CONNECTION PLATE SERVICE CONNECTION PLATE
Worcester part no. 87161002660		 £5.45
2 Part number 87161424280, BLKHD VALVE-15MM X 15MM BLKHD VALVE-15MM X 15MM
Worcester part no. 87161424280		 £8.79
3 Part number 87161424100, 18-22MM ISOLATING VALVE 18-22MM ISOLATING VALVE
Worcester part no. 87161424100		 £30.19
4 Part number 87161424240, GAS COCK 1/2 BSPT & G5/8 MA GAS COCK 1/2 BSPT & G5/8 MA
Worcester part no. 87161424240		 £14.90
5 Part number 87161424180, ISOLATOR VALVE 15MM-ONE C/NUT ISOLATOR VALVE 15MM-ONE C/NUT
Worcester part no. 87161424180		 £20.54
6 Part number 87161484010, GAUZE FILTER GAUZE FILTER
Worcester part no. 87161484010		 £4.31
7 Part number 87161009640, PIPE - FLOW SWITCH INLET PIPE - FLOW SWITCH INLET
Worcester part no. 87161009640		 £15.18
8 Part number 87161209710, HARNESS & FLOW SWITCH ASSEMBLY HARNESS & FLOW SWITCH ASSEMBLY
Worcester part no. 87161209710
9 Part number 87161410520, FLOW REG TYPE E-W 8L WHITE WITH ADAPTER FLOW REG TYPE E-W 8L WHITE WITH ADAPTER
Worcester part no. 87161410520		 £6.04
11   PIPE - PUMP INLET ASSEMBLY
Worcester part no. 87161209650
12 Part number 87161431070, NOW USE 8719119832 PUMP GRUNDFOS 59506606 NOW USE 8719119832 PUMP GRUNDFOS 59506606
Worcester part no. 87161431070
12   PUMP GRUNDFOS 59506606
Worcester part no. 8716119832
13 Part number 87161209680, PIPE - PUMP OUTLET ASSEMBLY PIPE - PUMP OUTLET ASSEMBLY
Worcester part no. 87161209680		 £22.46
14   CLIP - PUMP BULKHEAD
Worcester part no. 87161483160		 £4.15

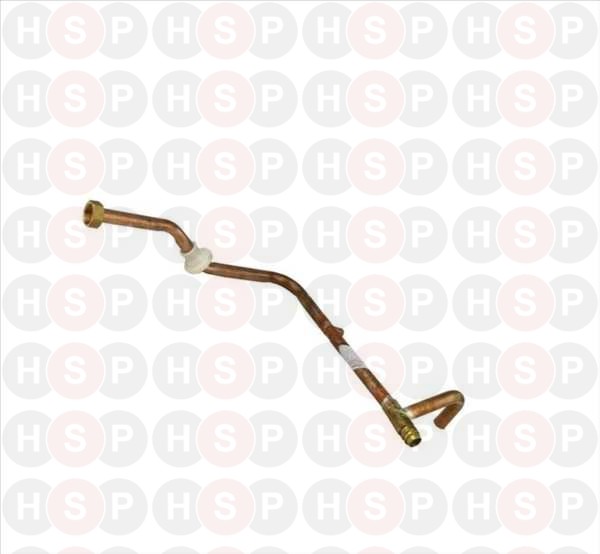

15 Part number 87161209670, PIPE - PRIMARY FLOW PIPE - PRIMARY FLOW
Worcester part no. 87161209670		 £59.23
16 Part number 87161410530, PRESSURE RELIEF CONNECTOR PRESSURE RELIEF CONNECTOR
Worcester part no. 87161410530		 £6.20
17 Part number 87161424040, PRESSURE RELIEF VALVE 312438 PRESSURE RELIEF VALVE 312438
Worcester part no. 87161424040		 £16.89
18 Part number 87161002590, PIPE - PRESSURE RELIEF PIPE - PRESSURE RELIEF
Worcester part no. 87161002590		 £5.79
19 Part number 87161209660, PIPE - GAS INLET ASSEMBLY PIPE - GAS INLET ASSEMBLY
Worcester part no. 87161209660		 £20.18
20 Part number 87161424130, GAS VALVE - NG GAS VALVE - NG
Worcester part no. 87161424130		 £187.86
20 Part number 87161424300, GAS VALVE - 24I LPG GAS VALVE - 24I LPG
Worcester part no. 87161424300		 £165.94
21   BURNER MANIFOLD
Worcester part no. 87161430010		 £36.32
22 Part number 87161402090, MAIN BURNER INJECTOR - LPG MAIN BURNER INJECTOR - LPG
Worcester part no. 87161402090		 £6.75
22 Part number 87161402240, MAIN BURNER INJECTOR 4.3 DIA. MAIN BURNER INJECTOR 4.3 DIA.
Worcester part no. 87161402240		 £5.87
23   PIPE - BY PASS ASSEMBLY
Worcester part no. 87161209730		 £12.91
24 Part number 87161425020, EXPANSION VESSEL EXPANSION VESSEL
Worcester part no. 87161425020		 £85.54
27 Part number 87161423840, CENTRAL HEATING SENSOR (PPS) CENTRAL HEATING SENSOR (PPS)
Worcester part no. 87161423840		 £8.96
28 Part number 87161483130, CLIP - DOMESTIC H.W. THERMISTOR CLIP - DOMESTIC H.W. THERMISTOR
Worcester part no. 87161483130		 £3.81
29 Part number 87161483030, PRIMARY H.W. THERMISTOR CLIP PRIMARY H.W. THERMISTOR CLIP
Worcester part no. 87161483030		 £2.11
30 Part number 87161156750, O-RING 16X2 (X1) O-RING 16X2 (X1)
Worcester part no. 87161156750		 £2.79
30 Part number 87161408140, O-RING 2.0 X 16.00 ID EP (10X) O-RING 2.0 X 16.00 ID EP (10X)
Worcester part no. 87161408140		 £2.79
31 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
31 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
32 Part number 87161408060, O-RING 2.62 X 17.86 AFTER FD992 O-RING 2.62 X 17.86 AFTER FD992
Worcester part no. 87161408060		 £2.79
33 Part number 87161483100, WIREFORM SPRING WIREFORM SPRING
Worcester part no. 87161483100		 £2.95
34 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
34 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
35 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
36 Part number 87161408270, O-RING 2.62X22.23 ID H-NITRILE O-RING 2.62X22.23 ID H-NITRILE
Worcester part no. 87161408270		 £2.79
37 Part number 29110511180, SCREW M4X8MM HEX HD SCR ZINC PLATED SCREW M4X8MM HEX HD SCR ZINC PLATED
Worcester part no. 29110511180		 £2.56
38 Part number 29110511340, SCREW M4 X 29 LG ZP HEX HEAD SCREW M4 X 29 LG ZP HEX HEAD
Worcester part no. 29110511340		 £2.73
39 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200		 £2.79
40 Part number 87161408380, O-RING 2.4X5.6 I/D EPDM O-RING 2.4X5.6 I/D EPDM
Worcester part no. 87161408380		 £2.60
41 Part number 87161483230, CLIP - SMALL WIRE CLIP - SMALL WIRE
Worcester part no. 87161483230		 £2.84
42 Part number 87161408080, O-RING 2.40 X 7.60 ID NITRILE O-RING 2.40 X 7.60 ID NITRILE
Worcester part no. 87161408080		 £2.56
43 Part number 87161483010, CLIP CLIP
Worcester part no. 87161483010		 £2.80
44 Part number 87161402840, NUT CAP 15MM NUT CAP 15MM
Worcester part no. 87161402840		 £2.96
