15/19-OSO-GB OIL SYS (FEB 1998 ONWARDS) 7716100030 - (Casing)
Appliance Code: 7716100030

Appliance Diagram

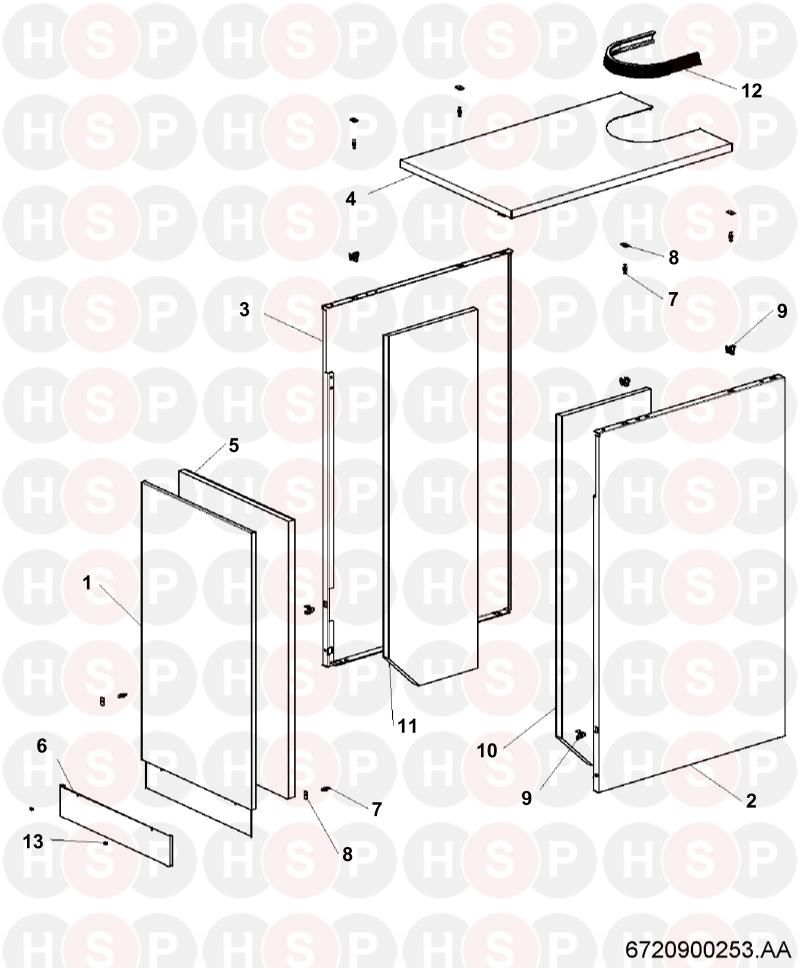

Casing diagram for Worcester 15/19-Oso-GB Oil Sys (Feb 1998 Onwards) 7716100030Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   TOP PANEL BLANKING PLATE ASSY
Worcester part no. 87161206790
£32.20
1   CABINET FRONT PANEL ASSEMBLY
Worcester part no. 87161203870
£91.44
2 Part number 87161202580, CABINET SIDE PANEL ASSEMBLY RH CABINET SIDE PANEL ASSEMBLY RH
Worcester part no. 87161202580
£67.62
3   CABINET SIDE PANEL ASSEMBLY LH
Worcester part no. 87161204580
£61.98
4 Part number 87161207220, TOP PANEL ASSEMBLY (PJSB 20-25) TOP PANEL ASSEMBLY (PJSB 20-25)
Worcester part no. 87161207220
£66.88
5   FRONT PANEL INSULATION
Worcester part no. 87161004460
£9.43
6   KICKSTRIP
Worcester part no. 87161002080
£17.44
7 Part number 87161405120, STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991 STUD 2BA BRASS BALL NEW DESIGN BEFORE FD991
Worcester part no. 87161405120
£3.03
8 Part number 87161550020, NUT 2BA FLAT BLACK M/S BEFORE FD991 NUT 2BA FLAT BLACK M/S BEFORE FD991
Worcester part no. 87161550020
£2.57
9 Part number 87161405130, CLIP - SPRING REF MFO319 SOFT (5 PACK) BEFORE FD991 CLIP - SPRING REF MFO319 SOFT (5 PACK) BEFORE FD991
Worcester part no. 87161405130
£9.24
10   SIDE PANEL INSULATION-RH
Worcester part no. 87161003270
£9.51
11 Part number 87161010870, SIDE PANEL INSULATION-LH SIDE PANEL INSULATION-LH
Worcester part no. 87161010870

12   EMBELLISHMENT - FLUE (422MM)
Worcester part no. 87161481060
£16.37
13 Part number 87161550390, BLACK NYLON SNAP RIVET BLACK NYLON SNAP RIVET
Worcester part no. 87161550390
£14.23
