WORCESTER
12/14-OSO-GB OIL SYS (FEB 1998 - JAN 2002) 7716100026 - (Electrical)
Appliance Code: 7716100026

Appliance Diagram

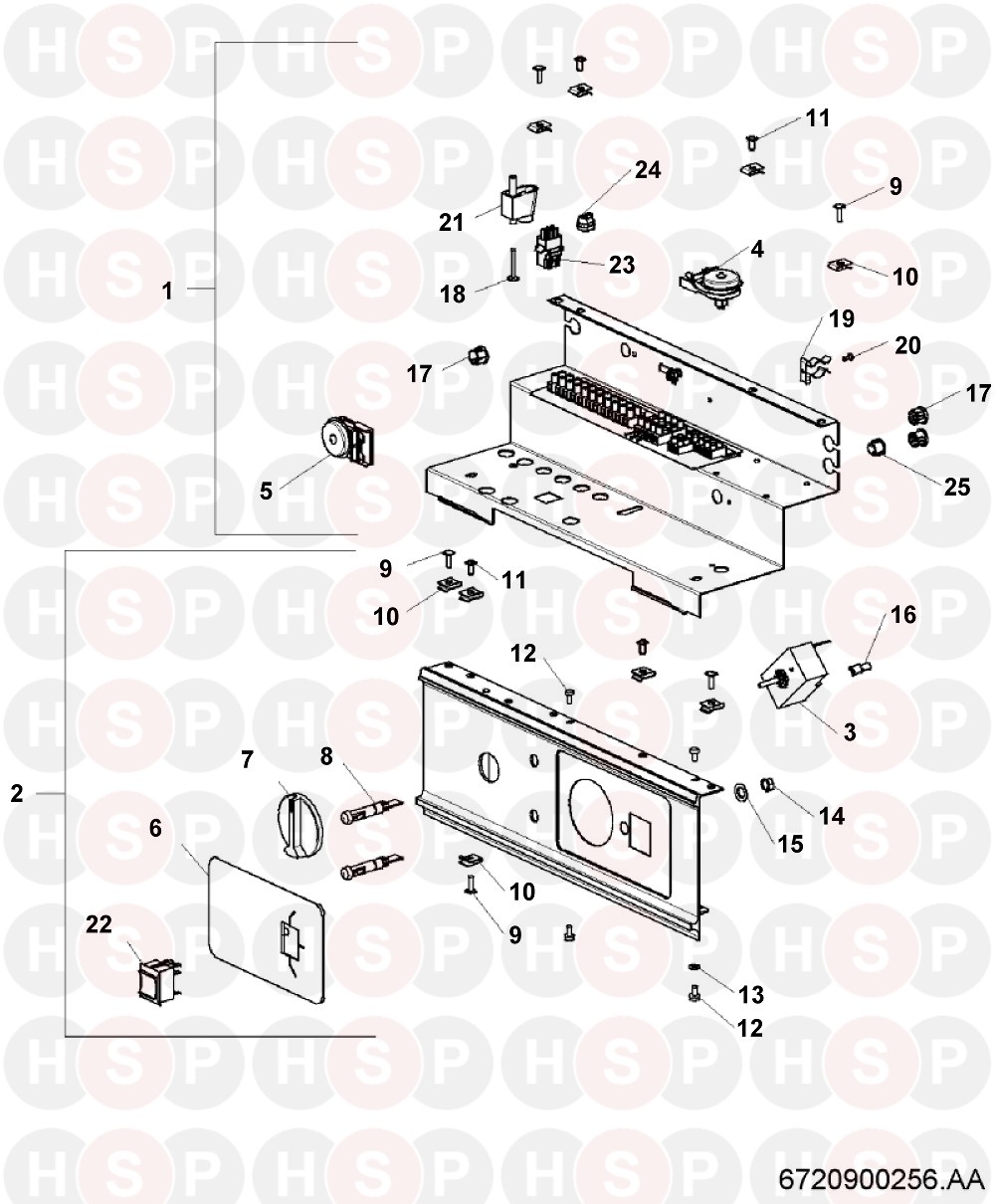

Electrical diagram for Worcester 12/14-Oso-GB Oil Sys (Feb 1998 - Jan 2002) 7716100026Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number 87161052710, HARNESS 6 WAY HARNESS 6 WAY
Worcester part no. 87161052710		 £54.01
0 Part number 87161209100, HARNESS 3WAY SWITCH HARNESS 3WAY SWITCH
Worcester part no. 87161209100		 £17.10
0 Part number 87161463080, POST PURGE UNIT POST PURGE UNIT
Worcester part no. 87161463080		 £106.24
1   CONTROL BOX ASSEMBLY
Worcester part no. 87161203530		 £135.18
2   FACIA ASSEMBLY 12/14
Worcester part no. 87161213460		 £107.50
3 Part number 87161423090, FLOW THERMOSTAT FLOW THERMOSTAT
Worcester part no. 87161423090		 £29.03
4 Part number 87161423920, THERMOSTAT MANUAL RESET 900mm CAPILLARY THERMOSTAT MANUAL RESET 900MM CAPILLARY
Worcester part no. 87161423920		 £28.93
5 Part number 87161423110, T/STAT HIGH LIMIT L07-P1022 T/STAT HIGH LIMIT L07-P1022
Worcester part no. 87161423110		 £42.88
7 Part number 87161410870, KNOB CONTROL GREEN-GREY KNOB CONTROL GREEN-GREY
Worcester part no. 87161410870		 £2.77
8 Part number 87161460000, NEON INDICATOR RED NEON INDICATOR RED
Worcester part no. 87161460000		 £10.99
10 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
11   SCREW NO.8 X 3/8" B POZI F/HD S/TA
Worcester part no. 29124212240		 £2.63
12 Part number 29144114120, SCREW M4X8 (3X) AFTER FD992 AND BEFORE FD111 SCREW M4X8 (3X) AFTER FD992 AND BEFORE FD111
Worcester part no. 29144114120		 £2.68
13 Part number 29160110100, WASHER M4 FLAT Z/P M/S WASHER M4 FLAT Z/P M/S
Worcester part no. 29160110100		 £2.63
14 Part number 29150110070, NUT M6 FULL HEX Z/P M/S NUT M6 FULL HEX Z/P M/S
Worcester part no. 29150110070		 £2.68
15   WASHER 5/16" X 1.2MM THK
Worcester part no. 87161405090		 £17.58
17 Part number 87161410500, GROMMET NYLON OPEN-CLOSE GROMMET NYLON OPEN-CLOSE
Worcester part no. 87161410500		 £6.39
18   SCREW NO.6X1" TYPE B ZP P/H ST SC
Worcester part no. 29124212150		 £17.31
19 Part number 87161550380, CLIP - TOOL 1/2" CLIP - TOOL 1/2"
Worcester part no. 87161550380		 £17.31
20 Part number 29144114110, SCREW M3X6mm ZC PL P/H TAPTITE AFTER FD992 SCREW M3X6MM ZC PL P/H TAPTITE AFTER FD992
Worcester part no. 29144114110		 £2.79
21 Part number 87161411010, CLAMP CABLE TYPE KB2 INSULOID CLAMP CABLE TYPE KB2 INSULOID
Worcester part no. 87161411010		 £17.44
22 Part number 87161461060, SWITCH ARROW200400E839 AA 3POS SWITCH ARROW200400E839 AA 3POS
Worcester part no. 87161461060		 £13.95
23   HARNESS-RECEPT. TO INDICATORS
Worcester part no. 87161202100		 £29.45
24   CORD STRAIN RELIEF BUSH
Worcester part no. 87161411020		 £4.51
