VOKERA
VISION PLUS 35C REV 4 (03/2022) - (Burner)
Appliance Code: 47-364-54 REV 4

Appliance Diagram

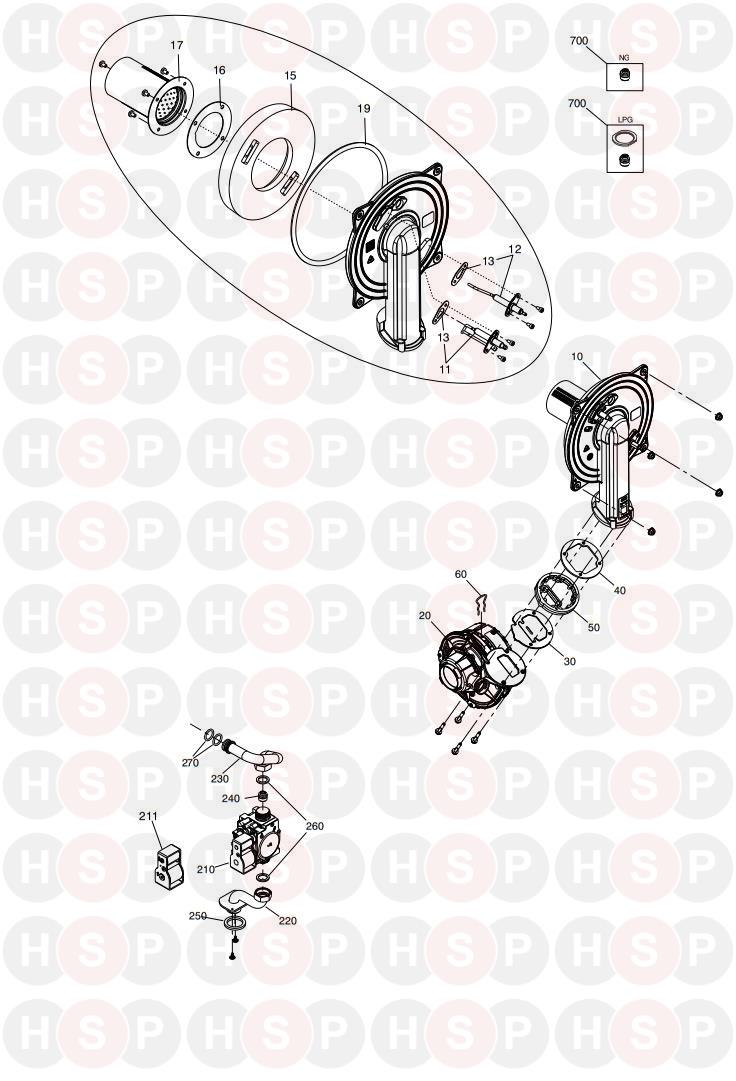

Burner diagram for Vokera Vision Plus 35c Rev 4 (03/2022)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

10   AIR GAS CONVEYOR (UP TO SERIAL NO, 20174728PR41P007103)
Vokera part no. 20136074
£158.76
10   AIR/GAS CONVEYOR (FROM SERIAL NO 20174728PR41P007104)
Vokera part no. 20177651
£153.59
11   IGNITION ELECTRODE
Vokera part no. 20135946
£38.44
12   FLAME DETECTION ELECTRODE
Vokera part no. 20135947
£33.31
13   ELECTRODE GASKET
Vokera part no. 20157191
£6.69
15   INSULATION PANEL
Vokera part no. 20177648
£46.69
16   BURNER SEAL
Vokera part no. 20135949
£6.69
17   PREMIX BURNER
Vokera part no. 20136089
£57.44
19   COVER SEAL/FIBRE GASKET
Vokera part no. 20135951
£27.75
20   FAN
Vokera part no. 20136075
£145.36
30   NON RETURN VALVE
Vokera part no. 20169395
£12.53
40   SEAL
Vokera part no. 20135952
£3.39
50   SPACER
Vokera part no. 20177790
£6.36
60 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062
£2.26
210 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202
£170.04
211 Part number 20040675, Gas Valve Solenoid (Fits 20039202/20035533) GAS VALVE SOLENOID (FITS 20039202/20035533)
Vokera part no. 20040675
£79.58
220   PIPE
Vokera part no. 20161547
£27.70
230   PIPE
Vokera part no. 20161546
£16.81
240   INJECTOR (5.7)
Vokera part no. 10029209
£4.30
250   GASKET
Vokera part no. 20123159
£2.07
260 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
270 Part number 20024869, O RING O RING
Vokera part no. 20024869
£0.72
700   NG TO LPG CONVERSION KIT
Vokera part no. 20080711
£7.76
700   CONVERSTION KIT MTN
Vokera part no. 20167315
£5.47
