VOKERA
UNICA 32 HE,
UNICA 32 HE REV 13 (03/2013),
UNICA 32 HE REV 13 (03/2013) LPG - (Heat Exchanger)
Appliance Code: 47-094-85

Appliance Diagram

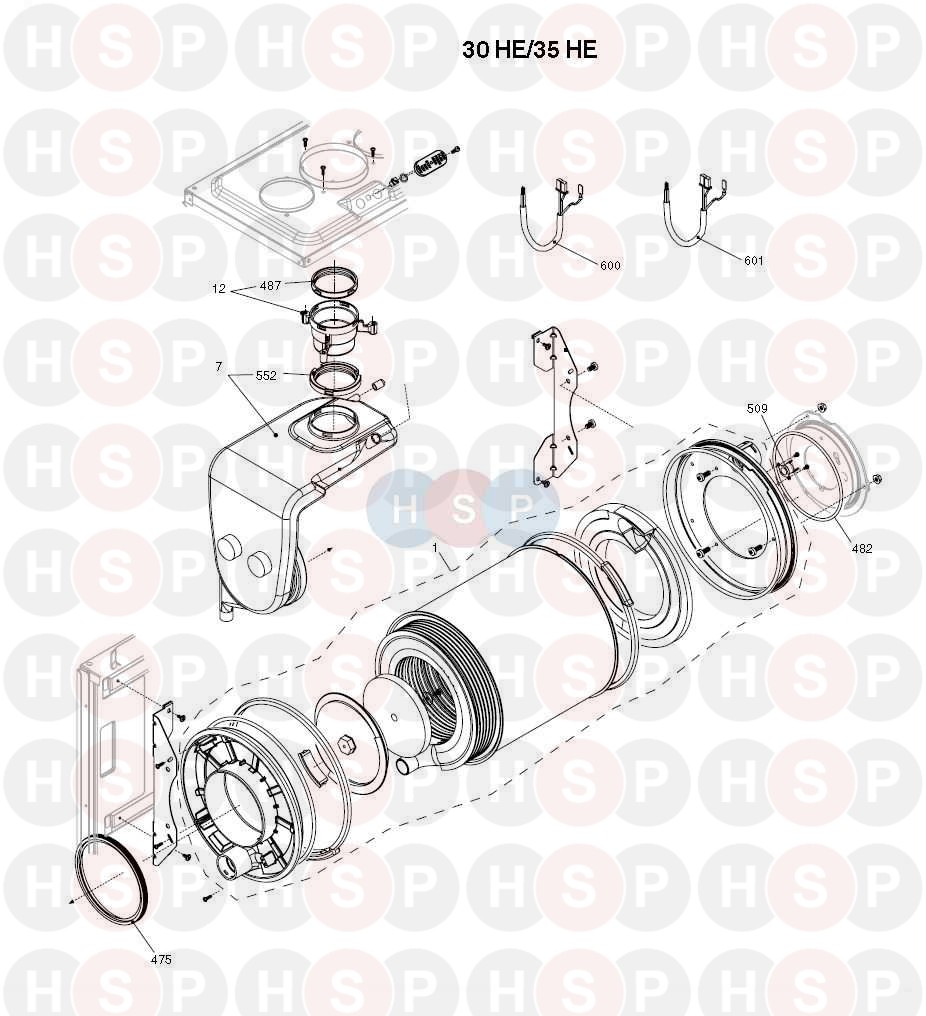

Heat Exchanger diagram for Vokera Unica 32 HE Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	DOMESTIC HEAT EXCHANGER Vokera part n^o. 1957	£147.49
1	EXPANSION VESSEL REP 106333 10 LITRE Vokera part n^o. 2573	£104.11
1	OBSOLETE LPG CONVERSION KIT Vokera part n^o. 1005446
1	CONDENSING EXCHANGER ASSEMBLY Vokera part n^o. 01005366	£422.29
2	NOW USE 10024640 CONNECTION Vokera part n^o. 10030114
2	ROOMSEALED CHAMBER SIDE Vokera part n^o. 10026231	£33.11
2	FLEXIBLE PIPE FOR EXPANSION VESSEL Vokera part n^o. 10025188	£15.43
2	CONNECTION Vokera part n^o. 10024640	£11.50
3	NOW USE 20185332 PUMP Vokera part n^o. 10027571
3	FAN (UP TO SERIAL N.<20065834J1959999) Vokera part n^o. 10028456	£309.51
3	NOW USE 20003181 WATER PRESSURE SWITCH Vokera part n^o. 10028141
3	WATER PRESSURE SWITCH - REPLACED 10028141 Vokera part n^o. 20003181	£9.83
3	ERP PUMP - REPLACED 10027571 10027258 20039926 & 20005582 Vokera part n^o. 20185332	£202.10
4	BURNER Vokera part n^o. 10028642	£144.30
4	NON RETURN VALVE Vokera part n^o. 10025056	£5.11
4	WIRING CN5 TO PUMP & 3 WAY MOTOR Vokera part n^o. 10028633	£36.76
5	SPARK/IGNITION ELECTRODE Vokera part n^o. 10027864	£30.24
6	SENSING ELECTRODE Vokera part n^o. 10026316	£12.30
6	PIPE Vokera part n^o. 10026264	£19.52
6	BY-PASS CASING Vokera part n^o. 10024641	£14.95
7	HEATING BYPASS VALVE Vokera part n^o. 2047	£6.21
7	NOW USE 10026267 PIPE Vokera part n^o. 10027317
7	PIPE (REP 10027317) Vokera part n^o. 10026267	£28.75
7	NOW USE 20007053 CONVEYOR Vokera part n^o. 10028623
7	CONVEYOR Vokera part n^o. 20007053	£62.60
9	FLOW PIPE ASSEMBLY (REP 10029457) Vokera part n^o. 20019769	£76.93
9	NOW USE 20019769 PIPE Vokera part n^o. 10028263
9	HTG MANIFOLD & CARTRIDGE (3 P V KIT) 1ST VERSION Vokera part n^o. 10026508	£77.17
10	3 WAY VALVE CARTRIDGE (1ST VERSION) Vokera part n^o. 10025305	£67.91
10	PIPE Vokera part n^o. 10028643	£30.77
11	ACTUATOR/MOTORISED VALVE (1ST VERSION) Vokera part n^o. 10025304	£65.02
12	FIXING FORK WRENCH Vokera part n^o. 10025450	£15.13
12	PRESSURE GAUGE Vokera part n^o. 2564	£34.67
12	FLUE DRAIN CONNECTION REPLACED 10026311 Vokera part n^o. 10028421	£9.58
12	GAS PIPE Vokera part n^o. 10026318	£16.45
13	NOW USE 20039202 GAS VALVE Vokera part n^o. 10028538
13	GAS VALVE REP 10028538 & 10027187 & 20025752 Vokera part n^o. 20039202	£170.04
13	CURVED LOCKING PIN (1ST VERSION) Vokera part n^o. 10025449	£2.39
15	GAS COCK Vokera part n^o. 10020897	£26.04
16	ROOMSEALED CHAMBER COVER Vokera part n^o. 10026230	£43.50
17	AUTO AIR VENT (BRASS) REPLACED 100618 Vokera part n^o. 10029306	£19.88
17	NOW USE 10029306 AUTO AIR VENT Vokera part n^o. 10026275
18	COVER ASSEMBLY Vokera part n^o. 10028554	£26.22
19	GLASS ASSEMBLY Vokera part n^o. 10026328	£8.31
20	MAIN PRINTED CIRCUIT BOARD Vokera part n^o. 20008307	£205.78
20	NOW USE 20008307 PCB Vokera part n^o. 10028558
21	LED LIGHT GUIDE Vokera part n^o. 10028557	£4.03
22	NOW USE 20044364 SAFETY VALVE TP Vokera part n^o. 10025055
22	SAFETY VALVE REP 10025055 & 20034917 & 20043820 Vokera part n^o. 20044364	£22.49
24	FLOW GOVERNOR 12 LITRES PER MINUTE (RED) Vokera part n^o. 10025080	£6.44
24	FLOW GOVERNOR 13 LITRES PER MINUTE (OLIVE GREEN) Vokera part n^o. 10026041	£6.11
25	PIPE Vokera part n^o. 10025839	£17.46
25	SIPHON Vokera part n^o. 10028405	£53.85
26	PIPE Vokera part n^o. 10027191	£7.56
26	DHW ACTUATOR REPLACES 10020330 Vokera part n^o. 10022349	£33.95
26	INSTRUMENT PANEL Vokera part n^o. 10028632	£35.02
27	KNOB ASSEMBLY Vokera part n^o. 10028559	£5.73
27	FLEXIBLE PIPE Vokera part n^o. 10027192	£6.85
27	METAL AIR BOX HOLE CAP Vokera part n^o. 10023805	£8.93
28	CONNECTION REP 088128 Vokera part n^o. 1790	£15.87
30	C-WATER INLET VALVE/STOP COCK - SCREWS INTO NON RETURN VALVE Vokera part n^o. 10023567	£32.55
31	NOW USE 20019250 CASING - UNICA32HE & 36HE Vokera part n^o. 10028451
31	CASING - UNICA 32HE & 36HE Vokera part n^o. 20019250	£155.20
34	HEATING FLOW COCK/SERVICE VALVE Vokera part n^o. 10023566	£33.01
35	FLEXIBLE PIPE/FILLING LOOP Vokera part n^o. 10023570	£24.49
35	AIR GAS CONVEYOR Vokera part n^o. 10028420	£49.54
37	PIPE Vokera part n^o. 10025840	£12.94
39	PIPE Vokera part n^o. 10028204	£106.22
40	DOOR FLAP Vokera part n^o. 10030136	£4.57
40	NOW USE 10030136 DOOR PANEL Vokera part n^o. 10028553
46	LPG TO NG JET (6.7) Vokera part n^o. 10027161	£7.97
47	COVER FOR BY-PASS ASSEMBLY Vokera part n^o. 10024643	£10.94
48	DISCHARGE VALVE WITH O RING (10025064) & WASHER (10025066) Vokera part n^o. 10024646	£7.85
61	NON-RETURN/DOUBLE-CHECK VALVE Vokera part n^o. 10023569	£22.61
62	SUPPLY INLET VALVE Vokera part n^o. 10023568	£22.94
63	PIPE Vokera part n^o. 10026228	£20.16
66	FLEXIBLE PIPE Vokera part n^o. 10026272	£8.31
67	WASHER Vokera part n^o. 10026322	£21.67
69	NOW USE 20046836 TRYTON Vokera part n^o. 10028425
69	TRYTON WITH 3 SCREWS Vokera part n^o. 20046836	£13.56
71	AIR BLEEDING CONNECTION PIPE (REP 10028516 & 10028515) Vokera part n^o. 20019766	£12.57
71	NOW USE 20019766 PIPE Vokera part n^o. 10028516
72	VENTING PLUGS KIT Vokera part n^o. 01005137	£9.76
72	MIXER REPLACED 10024295 Vokera part n^o. 20015932	£40.32
72	NOW USE 20015932 MIXER Vokera part n^o. 10024295
73	COCK (UP TO SERIAL NO, 20099226O0950120) Vokera part n^o. 10028431	£9.55
78	HINGE ASSEMBLY Vokera part n^o. 01005442	£5.92
79	FLAME DETECTION ELECTRODE Vokera part n^o. 10028422	£21.15
90	3 AMP FUSE (INDIVIDUAL) Vokera part n^o. 3478	£2.05
200	3/4" FIBRE WASHER Vokera part n^o. 5023	£0.43
201	1/2" FIBRE WASHER Vokera part n^o. 5026	£0.39
226	EDGE CLIP Vokera part n^o. 5128	£0.21
265	WASHER Vokera part n^o. 5236	£0.69
266	WASHER 28MM Vokera part n^o. 5237	£0.88
287	HIGH LIMIT THERMOSTAT Vokera part n^o. 2258	£8.97
288	O RING Vokera part n^o. 6898	£1.03
290	NOW USE 10027757 LOCKING PIN Vokera part n^o. 2165
290	LOCKING PIN Vokera part n^o. 10027757	£0.77
300	X2 TO M4 TO OPEN THERM PLUS CONNECTION & EXTERNAL SENSOR WIRING Vokera part n^o. 10028593	£22.28
301	WIRING CN1 TO M5 ROOM THERMOSTAT & M3 TERMINAL BLOCK Vokera part n^o. 10028596	£46.37
302	WIRING X16 TO WATER PRESSURE SWITCH, DHW FLOW SWITCH & DHW TEMP THERMISTOR Vokera part n^o. 10028634	£24.52
328	CLIP Vokera part n^o. 1890	£0.80
351	NUT (SMALL) Vokera part n^o. 1823	£1.60
353	NUT (LARGE) Vokera part n^o. 1824	£1.60
366	CLIP Vokera part n^o. 1820	£0.94
372	CLIP Vokera part n^o. 2588	£0.83
432	LOCKING PIN Vokera part n^o. 10024958	£0.98
433	LOCKING PIN Vokera part n^o. 10024986	£0.98
434	NIPPLE Vokera part n^o. 10024985	£11.88
435	CONNECTION Vokera part n^o. 10025059	£11.53
436	LOCKING PIN Vokera part n^o. 10025062	£2.26
438	O RING Vokera part n^o. 10024988	£0.81
439	O RING Vokera part n^o. 10025067	£2.61
441	LOCKING PIN Vokera part n^o. 10025063	£0.98
442	O RING Vokera part n^o. 10025065	£1.91
443	O RING Vokera part n^o. 10025064	£5.30
444	WASHER Vokera part n^o. 10025066	£3.27
475	WASHER Vokera part n^o. 10026323	£12.98
476	O RING Vokera part n^o. 10026324	£2.85
477	CLIP Vokera part n^o. 10026269	£0.98
478	NOW USE 20081926 NTC Vokera part n^o. 10026273
478	THERMISTOR/NTC REPLACED 20003819 AND 20004365 Vokera part n^o. 20081926	£16.76
479	IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563 Vokera part n^o. 20002969	£42.16
479	NOW USE 20002969 TRANSFORMER Vokera part n^o. 10026237
482	WASHER Vokera part n^o. 10026366	£5.41
486	O RING Vokera part n^o. 10026325	£2.52
487	WASHER Vokera part n^o. 10026345	£7.00
497	FAN GASKET Vokera part n^o. 10026796	£7.18
500	WIRING CN3 TO GAS VALVE & SOLENOIDS Vokera part n^o. 10028599	£22.39
501	CN1 TO FAN POWER SUPPLY, CN2 TO IGN TRANSFORMER Vokera part n^o. 10028626	£39.97
502	TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING Vokera part n^o. 10026558	£10.79
509	LIMIT STAT Vokera part n^o. 10026982	£9.67
512	WASHER Vokera part n^o. 10027193	£1.11
521	THERMISTOR/NTC SENSOR Vokera part n^o. 10027351	£7.96
552	WASHER Vokera part n^o. 10028426	£8.58
600	X9 TO M3A TERMINAL STRIP, RETURN NTC & FLOW Vokera part n^o. 10028601	£54.65
600	NG TO LPG CONVERSION KIT (4.7) Vokera part n^o. 01005447	£17.73
601	J12 LINK WIRE BETWEEN HEAT EXCHANGER THERMOSTAT & FLOW OVERHEAT STAT Vokera part n^o. 10027360	£3.74
