VOKERA
SYNTESI 35 REV 6 (09/07) - (Combustion Chamber)
Appliance Code: 47-094-50 REV 6

Appliance Diagram

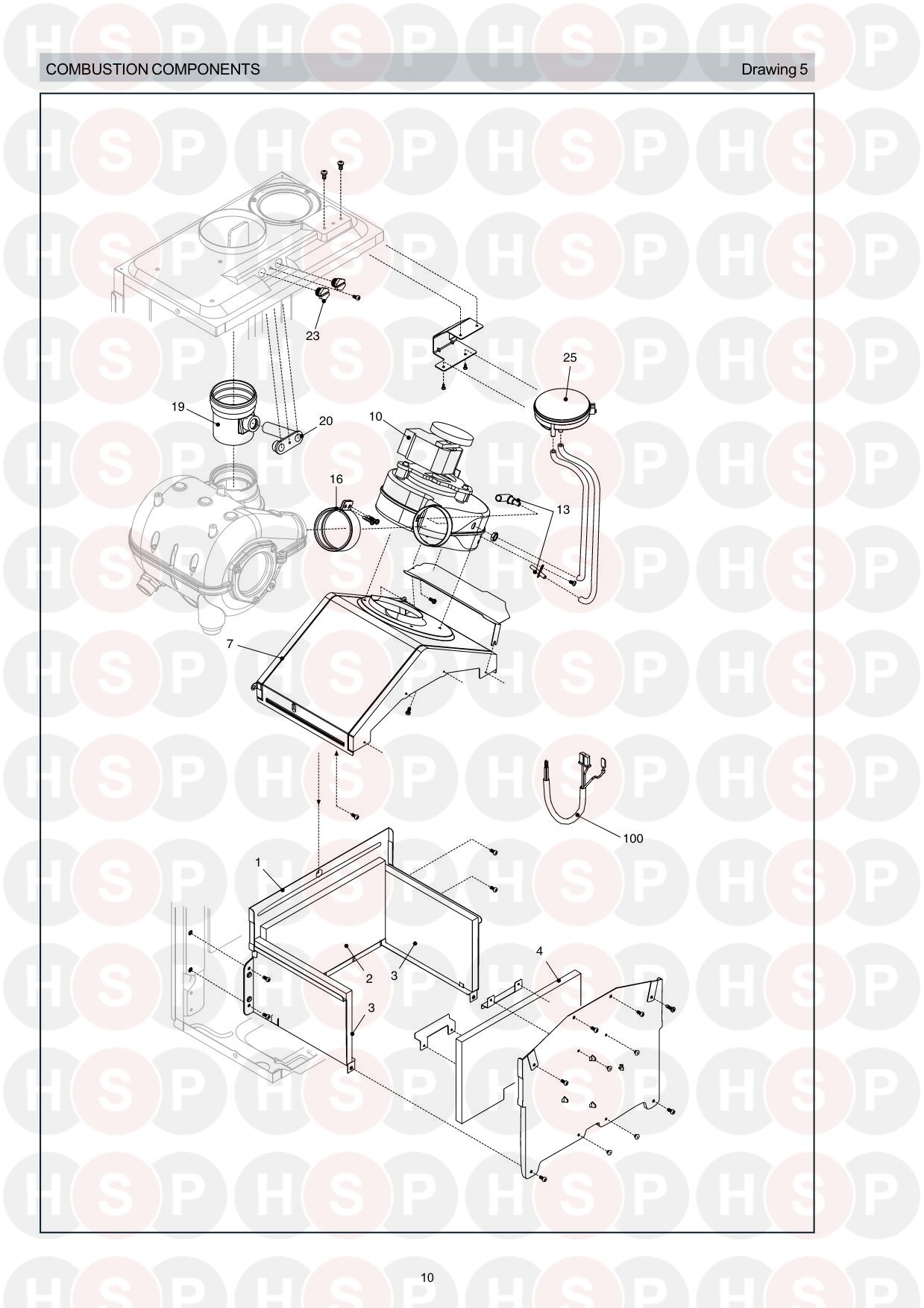

Combustion Chamber diagram for Vokera Syntesi 35 Rev 6 (09/07)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 10020514, Combustion Chamber Assembly COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 10020514
£24.52
2 Part number 10020518, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 10020518
£15.98
3 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271
£9.55
4 Part number 10020517, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 10020517
£15.98
7   HOOD ASSEMBLY
Vokera part no. 10024473
£36.08
10 Part number 10024035, Fan FAN
Vokera part no. 10024035
£175.79
13 Part number 01005405, NOW USE 20030209 Venturi/pressure tube kit NOW USE 20030209 VENTURI/PRESSURE TUBE KIT
Vokera part no. 01005405

13 Part number 20030209, Venturi kit (Repl 01005405) VENTURI KIT (REPL 01005405)
Vokera part no. 20030209
£23.42
16 Part number 10024126, Clamp CLAMP
Vokera part no. 10024126
£18.84
19 Part number 10024137, Fan flue connection FAN FLUE CONNECTION
Vokera part no. 10024137
£37.94
20 Part number 10026933, Block with combustion analysis check BLOCK WITH COMBUSTION ANALYSIS CHECK
Vokera part no. 10026933
£9.45
23 Part number 8086, Brass Cap BRASS CAP
Vokera part no. 8086
£2.51
25 Part number 2677, Air Pressure Switch AIR PRESSURE SWITCH
Vokera part no. 2677
£66.32
100   M12 TO FAN, M1 TO CONDENSE SENSOR, M3 TO PD SWITCH, HIGH LIMIT, BURNER STAT, PRIMARY NTC
Vokera part no. 10024522
£57.83
