VOKERA
SYNTESI 25 REV 6 (09/07) LPG - (Casing Electrics)
Appliance Code: 47-094-46 REV 6 LPG

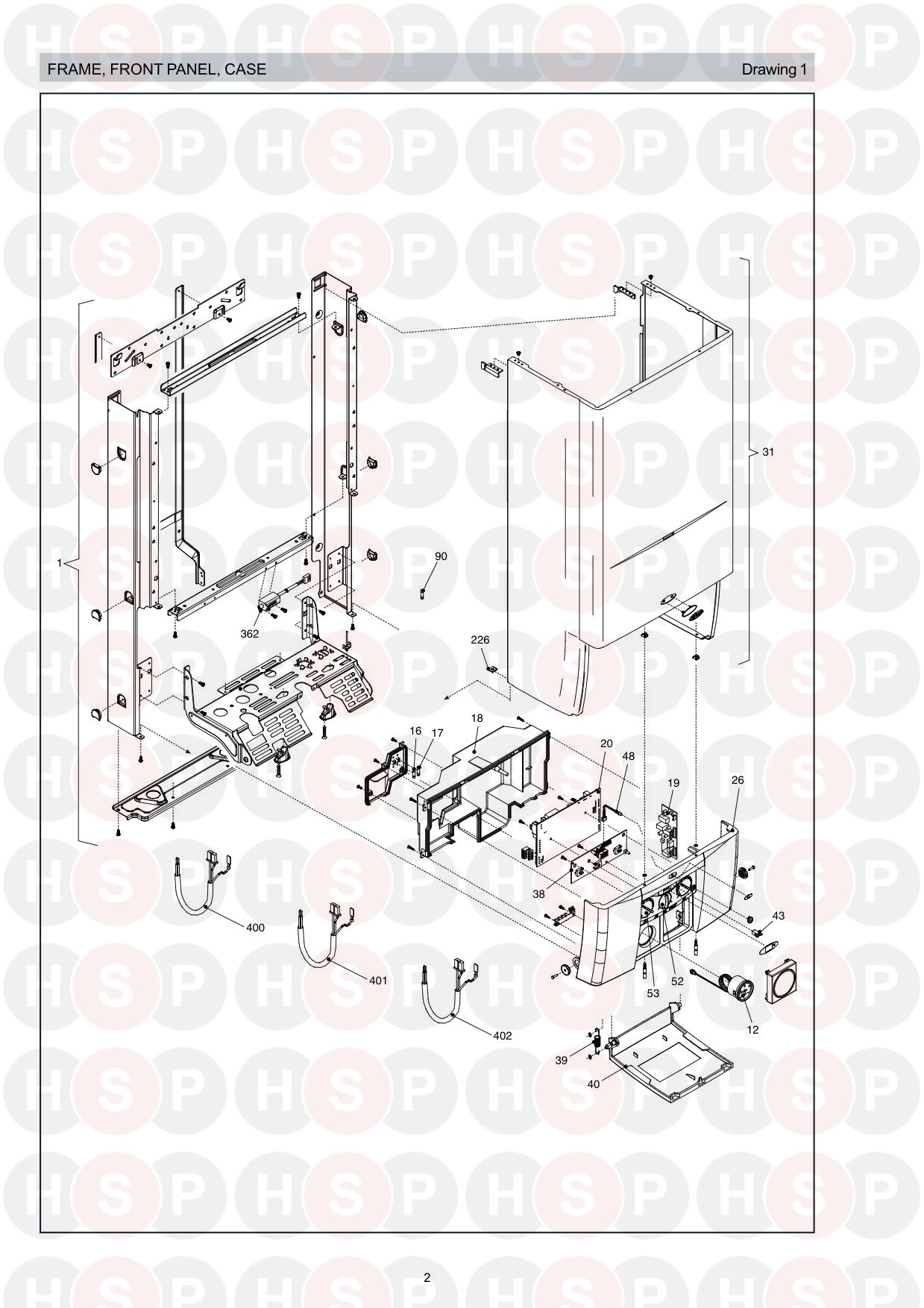

Appliance Diagram


Casing Electrics diagram for Vokera Syntesi 25 Rev 6 (09/07) LPGClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRAME
Vokera part no. 01005288
12 Part number 1857, Pressure Gauge PRESSURE GAUGE
Vokera part no. 1857
£18.38
16 Part number 8968, Fuse (Individual) 2 AMP FUSE (INDIVIDUAL) 2 AMP
Vokera part no. 8968
£0.98
17 Part number 1947, 1AM Fuse (Individual) 1AM FUSE (INDIVIDUAL)
Vokera part no. 1947
£1.35
18 Part number 10021849, PCB Cover Rep 1855 PCB COVER REP 1855
Vokera part no. 10021849
£20.16
19 Part number 10028891, Ignition module (Rep 10021848) IGNITION MODULE (REP 10021848)
Vokera part no. 10028891
£106.11
20 Part number 10024390, Main Printed Circuit Board MAIN PRINTED CIRCUIT BOARD
Vokera part no. 10024390
£294.06
26 Part number 10021951, Instrument Panel INSTRUMENT PANEL
Vokera part no. 10021951
£48.28
31 Part number 1880, Case CASE
Vokera part no. 1880

38 Part number 10024558, Control Printed circuit board - rep 10020477 CONTROL PRINTED CIRCUIT BOARD - REP 10020477
Vokera part no. 10024558
£82.08
39 Part number 1862, Spring SPRING
Vokera part no. 1862
£2.20
40 Part number 10024508, Door panel rep 10024530 DOOR PANEL REP 10024530
Vokera part no. 10024508
£16.98
43 Part number 1864, Clip CLIP
Vokera part no. 1864
£5.95
48 Part number 1858, Green to Red LED GREEN TO RED LED
Vokera part no. 1858
£8.36
52 Part number 01005073, NOW USE 1859 KNOB NOW USE 1859 KNOB
Vokera part no. 01005073

52 Part number 1859, temp control knob htg&dhw TEMP CONTROL KNOB HTG&DHW
Vokera part no. 1859
£3.86
53 Part number 01005072, NOW USE 1860 KNOB NOW USE 1860 KNOB
Vokera part no. 01005072

53 Part number 1860, dhw/htg Mode selector switch DHW/HTG MODE SELECTOR SWITCH
Vokera part no. 1860
£3.86
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
226 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128
£0.21
362 Part number 10022659, Ignition Transformer rep 10021991 IGNITION TRANSFORMER REP 10021991
Vokera part no. 10022659
£22.15
400 Part number 10021117, M9 to M2 ribbon cable from the main PCB to display PCB M9 TO M2 RIBBON CABLE FROM THE MAIN PCB TO DISPLAY PCB
Vokera part no. 10021117
£8.70
401 Part number 1780, Internal clock wire INTERNAL CLOCK WIRE
Vokera part no. 1780
£19.10
402   CLOCK WIRE
Vokera part no. 1980
£9.13
