VOKERA
PLUS 18V REV 0 (06/2018),
PLUS 18V REV 0 (09/2017) - (Wiring)
Appliance Code: 41-364-05

Appliance Diagram

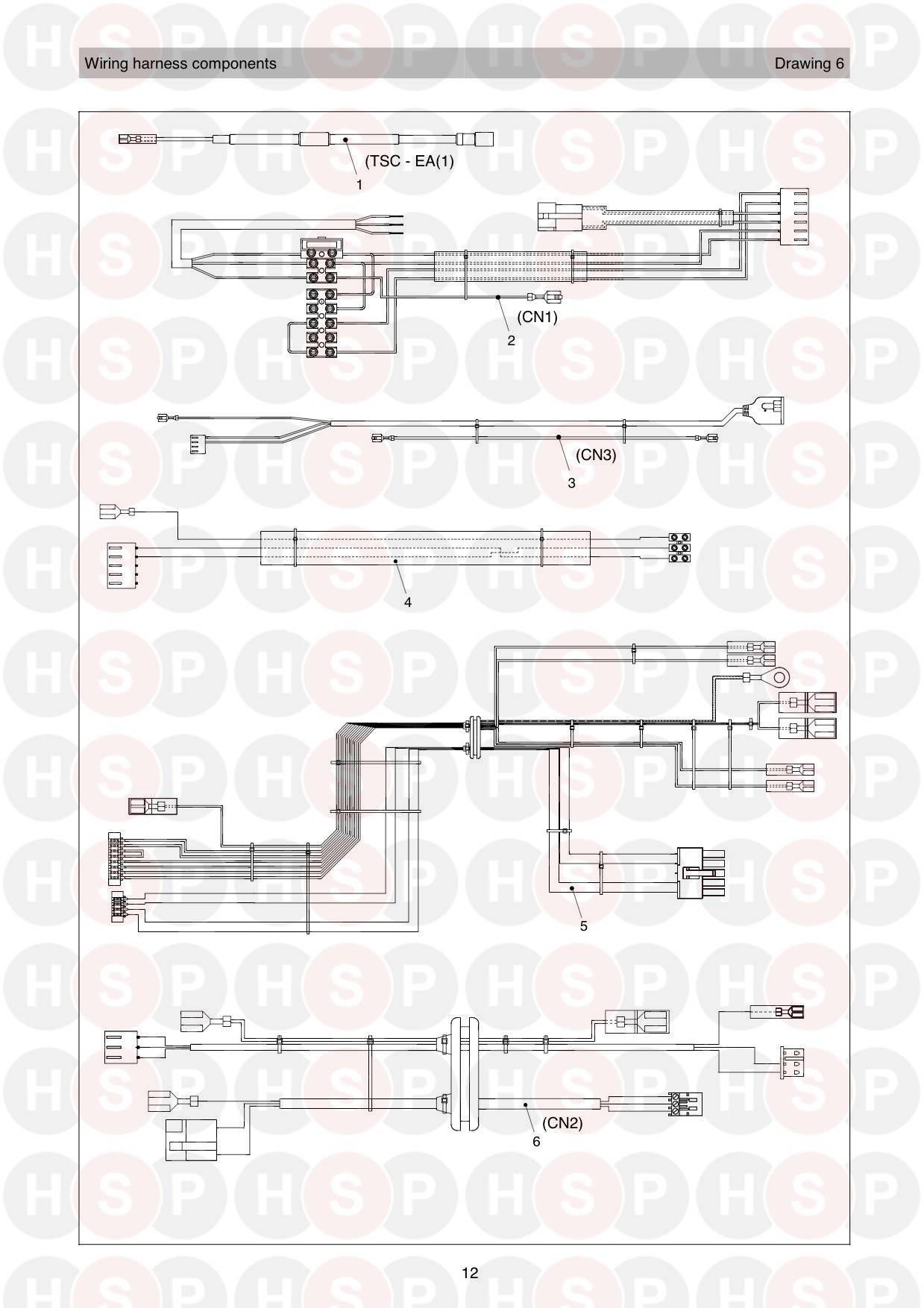

Wiring diagram for Vokera Plus 18V Rev 0 (09/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 10026558, TSC1 (ignition transformer) to Spark electrode Wiring TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING
Vokera part no. 10026558		 £10.79
2 Part number 10028596, Wiring CN1 to M5 room thermostat & M3 terminal block WIRING CN1 TO M5 ROOM THERMOSTAT & M3 TERMINAL BLOCK
Vokera part no. 10028596		 £46.37
3 Part number 10028599, Wiring CN3 to Gas valve & solenoids WIRING CN3 TO GAS VALVE & SOLENOIDS
Vokera part no. 10028599		 £22.39
4   WIRING HARNESS
Vokera part no. 10029722		 £9.02
5   COMBUSTION CABLE
Vokera part no. 10029723		 £44.04
6   IGNITION CABLE
Vokera part no. 20001560		 £24.09
