VOKERA
MYNUTE I20 ERP REV 4 (02/2017) - (Wiring)
Appliance Code: 41-094-88 REV 4

Appliance Diagram


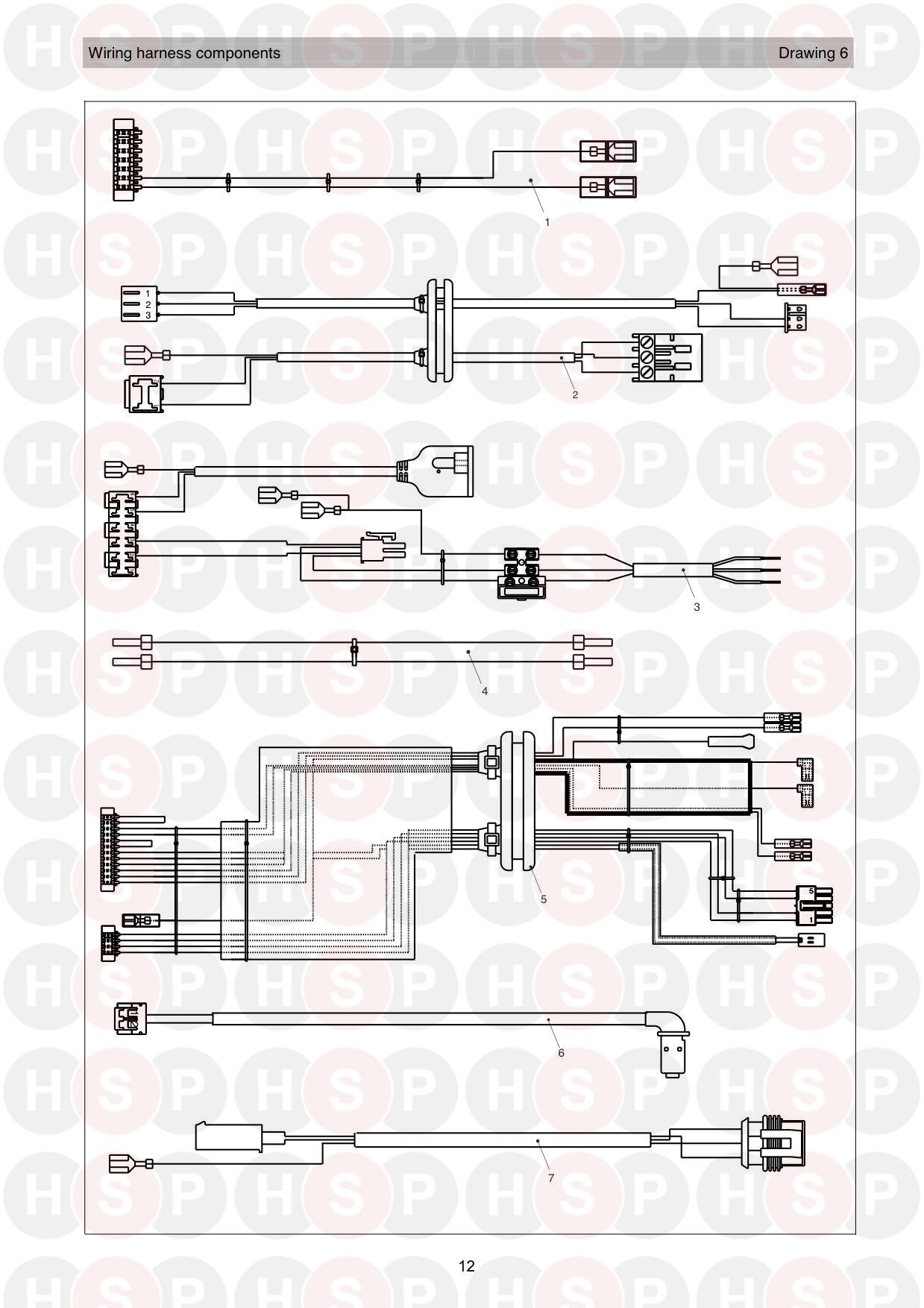

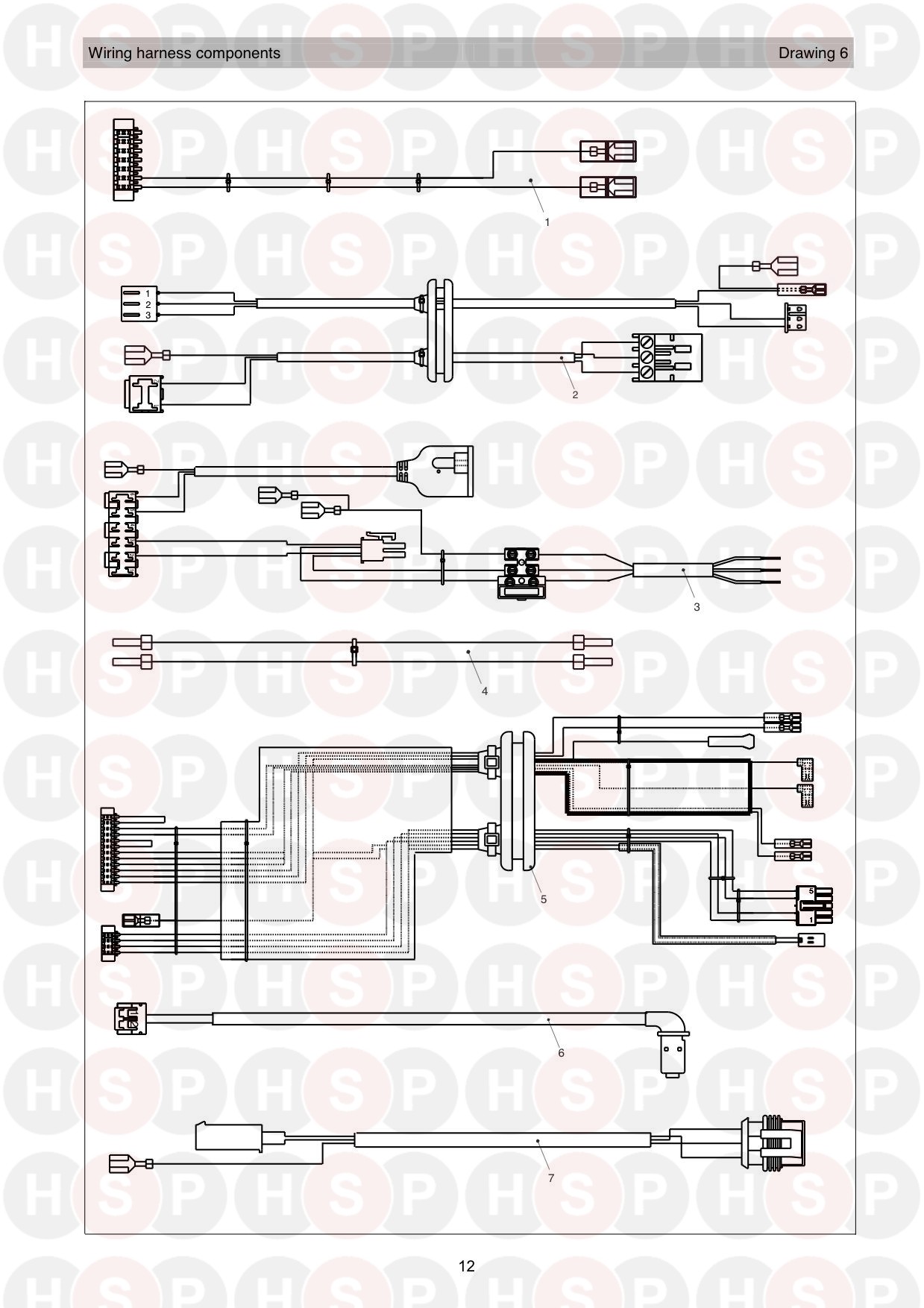

Wiring diagram for Vokera Mynute i20 ErP Rev 4 (02/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CN9 TO WATER PRESSURE SWITCH
Vokera part no. 20035502
£19.84
2   CN1 TO IGN TRANSFORMER, CN3 TO FAN.
Vokera part no. 20057874
£27.70
3   WIRING HARNESS
Vokera part no. 20069549
£51.99
4   CN5 TO RELAY BOARD
Vokera part no. 20076437
£2.46
5   COMBUSTION CABLE (UP TO SERIAL NO. 20101253N1450192)
Vokera part no. 20076890
£57.51
6   PWM PUMP CABLE
Vokera part no. 20100812
£12.44
7   PUMP CAPLE
Vokera part no. 20104984
£12.14
