VOKERA
MYNUTE 28SE - (Assembly 6)
Appliance Code: 41-094-14

Appliance Diagram

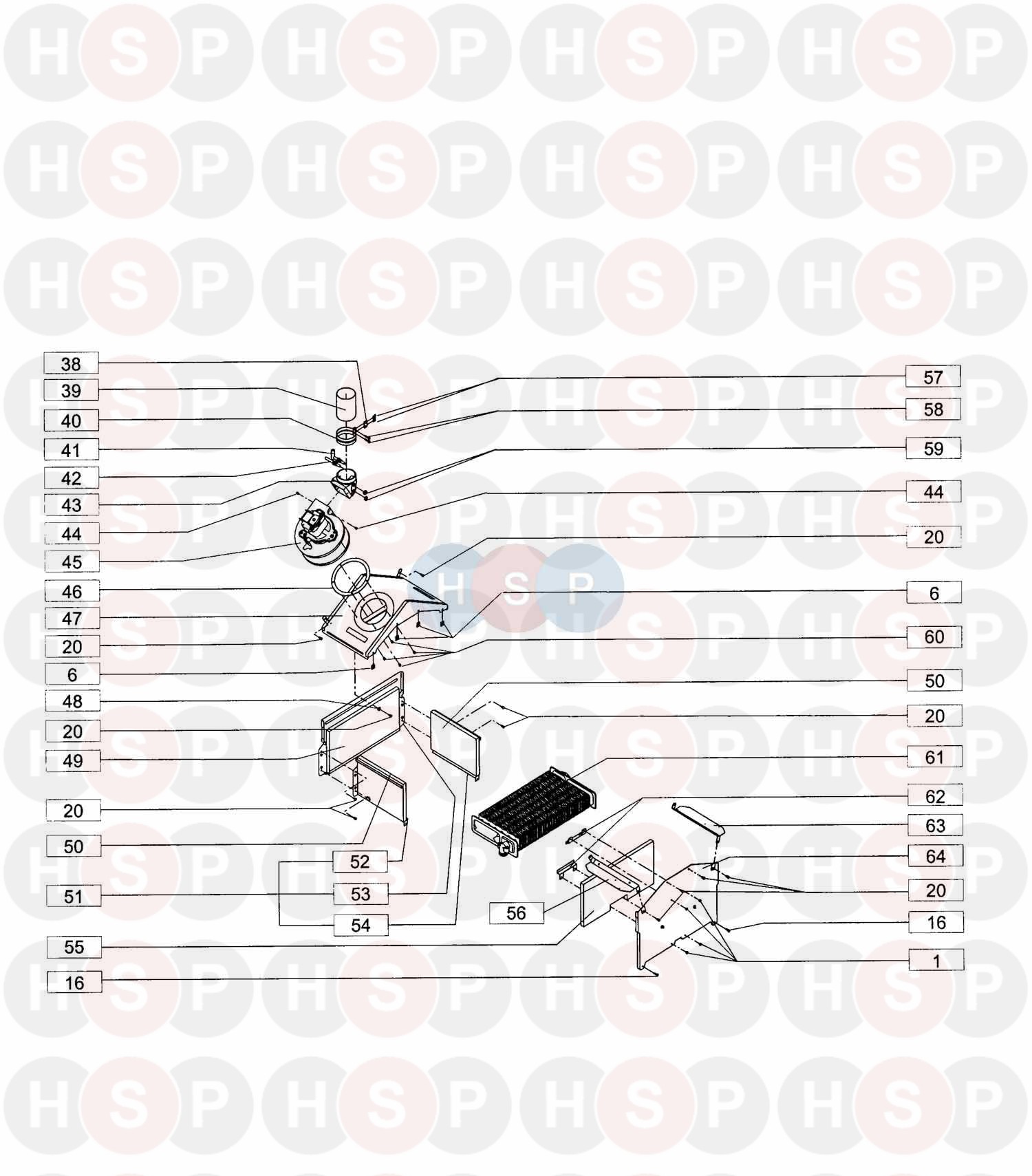

Assembly 6 diagram for Vokera Mynute 28SEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   RIVET
Vokera part no. 5093
2   OBSOLETE CASE LOCATING CLIP L/H
Vokera part no. 5581
3   WHITE OUTER CASING
Vokera part no. 7920
4   CLIP SPECIAL
Vokera part no. 5588
5   OBSOLETE CASE LOCATING CLIP R/H
Vokera part no. 5580
6 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
7 Part number 7204, Expansion vessel 8L EXPANSION VESSEL 8L
Vokera part no. 7204		 £107.16
8   FRAME
Vokera part no. 2804		 £71.28
9   BAR
Vokera part no. 5589
10   SELF TAPPING HEX HEAD 3.9 X L0MM LONG STEEL
Vokera part no. 5180
11   CABLE CLAMP
Vokera part no. 5371
12   SCREW
Vokera part no. 5171
13 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
14   SIDE PANEL
Vokera part no. 7701
15   FRONT PANEL
Vokera part no. 5904
16   SCREW
Vokera part no. 5080		 £0.21
17 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
18 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
19 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
20 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
21 Part number 8084, Air Box Hole Cap AIR BOX HOLE CAP
Vokera part no. 8084		 £4.08
22   AIR FLANGE
Vokera part no. 5922
23   OBSOLETE AIR CHAMBER
Vokera part no. 8603
24   SEAL
Vokera part no. 5927		 £4.47
25   OBSOLETE SCREW 3.5M/M X 7
Vokera part no. 5145
27 Part number 10026933, Block with combustion analysis check BLOCK WITH COMBUSTION ANALYSIS CHECK
Vokera part no. 10026933		 £9.45
27 Part number 8085, NOW USE 10026933 Combustion analysis check NOW USE 10026933 COMBUSTION ANALYSIS CHECK
Vokera part no. 8085
28 Part number 8086, Brass Cap BRASS CAP
Vokera part no. 8086		 £2.51
29   AIR DEFLECTOR
Vokera part no. 5923
30   RIVET
Vokera part no. 5094
31 Part number 5944, NOW USE 1457 Silicone Tube NOW USE 1457 SILICONE TUBE
Vokera part no. 5944
31 Part number 1457, Silicone tube (1 Metre) SILICONE TUBE (1 METRE)
Vokera part no. 1457		 £2.12
33 Part number 01005272, Air Pressure Switch Rep 7070/8195/9232 AIR PRESSURE SWITCH REP 7070/8195/9232
Vokera part no. 01005272		 £58.89
33 Part number 9232, NOW USE 01005272 PRESSURE SWITCH NOW USE 01005272 PRESSURE SWITCH
Vokera part no. 9232
34 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
35 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
36 Part number 7100, 3/4" Flow/Return Valve 90 Deg 3/4" FLOW/RETURN VALVE 90 DEG
Vokera part no. 7100		 £27.65
37 Part number 7098, Gas Cock GAS COCK
Vokera part no. 7098		 £25.56
38 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
38 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
39 Part number 8083, Fan Flue Tube FAN FLUE TUBE
Vokera part no. 8083		 £11.84
40 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
40 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
41 Part number 6984, NOW USE 7948 VENTURI NOW USE 7948 VENTURI
Vokera part no. 6984
41 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948		 £10.75
42 Part number 6985, Venturi (Positive) VENTURI (POSITIVE)
Vokera part no. 6985		 £4.88
43   FAN TO FLUE CONNECTOR (WITHOUT VENTURI'S)
Vokera part no. 7280		 £31.02
44   SCREW
Vokera part no. 5176		 £0.30
45 Part number 5911, Fan Assembly FAN ASSEMBLY
Vokera part no. 5911		 £127.40
46 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
47   HOOD ASSEMBLY
Vokera part no. 5907		 £36.82
48   FIBRE WASHER - SPECIAL
Vokera part no. 5067
49 Part number 5316, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5316		 £15.98
50 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
51 Part number 6028, Combustion Chamber COMBUSTION CHAMBER
Vokera part no. 6028		 £22.81
52 Part number 5300, Metal Side Panel (L/H) METAL SIDE PANEL (L/H)
Vokera part no. 5300		 £5.64
53   BACK SIDE OF COMB CHAMBER
Vokera part no. 5312		 £7.42
54   METAL SIDE PANEL R/H
Vokera part no. 5299
55 Part number 5315, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5315		 £15.04
56   AIR BAFFLE
Vokera part no. 5951
57 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
58   SCREW
Vokera part no. 5081		 £0.24
59 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
60   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
61 Part number 5356, Heat Exchanger HEAT EXCHANGER
Vokera part no. 5356		 £264.20
62 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
63   AIR BAFFLE
Vokera part no. 5950
64 Part number 5909, Combustion Chamber Front (Metal) COMBUSTION CHAMBER FRONT (METAL)
Vokera part no. 5909		 £10.93
65   MAIN BURNER
Vokera part no. 7096
67 Part number 8301, Sensing Electrode with Lead SENSING ELECTRODE WITH LEAD
Vokera part no. 8301		 £18.04
68   SELF TAPPING SCREW
Vokera part no. 5169
69 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105		 £0.93
70   GAS VALVE TO BURNER PIPE
Vokera part no. 7714
71 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863		 £0.63
72 Part number 5172, Burner Plate BURNER PLATE
Vokera part no. 5172		 £0.29
73 Part number 8478, Spark Electrode with Lead SPARK ELECTRODE WITH LEAD
Vokera part no. 8478		 £17.09
74   L.P.G BAFFLE (96E)
Vokera part no. 7724
75   OBSOLETE TUBE
Vokera part no. 8097
76 Part number 9800, Ignition Box IGNITION BOX
Vokera part no. 9800		 £187.80
77   SCREW
Vokera part no. 8361
78 Part number 9842, Gas Valve GAS VALVE
Vokera part no. 9842		 £170.19
79   GAS VALVE SUPPORT BRACKET
Vokera part no. 7840
80 Part number 5322, Screw M5x45 SCREW M5X45
Vokera part no. 5322		 £1.45
81 Part number 5323, Washer WASHER
Vokera part no. 5323		 £0.39
82 Part number 5930, Pipe PIPE
Vokera part no. 5930
83 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
84 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
85   RETURN PIPE
Vokera part no. 7845
86 Part number 6897, Pump Washer PUMP WASHER
Vokera part no. 6897		 £0.72
87   PIPE
Vokera part no. 7843		 £14.85
88 Part number 2258, High Limit Thermostat HIGH LIMIT THERMOSTAT
Vokera part no. 2258		 £8.97
88 Part number 8367, NOW USE 2258 HIGH LIMIT THERMOSTAT NOW USE 2258 HIGH LIMIT THERMOSTAT
Vokera part no. 8367
89   SCREW
Vokera part no. 5077		 £0.15
90   PIPE
Vokera part no. 2805
91 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
92 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
93   SCREW
Vokera part no. 5219
94   PLASTIC COVER
Vokera part no. 8673
95   OBSOLETE SCREW
Vokera part no. 5075
96   OBSOLETE LOCKING WASHER
Vokera part no. 5173
97   CLIP
Vokera part no. 3412		 £0.96
98 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
99 Part number 5592, Mode Selector Switch MODE SELECTOR SWITCH
Vokera part no. 5592		 £3.20
100   BRACKET
Vokera part no. 7788
101   CONTROL PANEL
Vokera part no. 8607
102 Part number 6466, Reset Button RESET BUTTON
Vokera part no. 6466		 £7.76
103   OBSOLETE SCREW C/S PHILLIPS 4MM X 12MML
Vokera part no. 5199
104   SCREW M4 X 8
Vokera part no. 5086
105   OBSOLETE TERMINAL BLOCK COVER PLATE
Vokera part no. 7918
109   R/H CONTROL PANEL HINGE
Vokera part no. 7787
111 Part number 8654, Clock Blanking Plate CLOCK BLANKING PLATE
Vokera part no. 8654		 £2.25
112   PRESSURE GAUGE
Vokera part no. 8355		 £16.45
115   KNOB
Vokera part no. 9599
116 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
117 Part number 6025, NOW USE 20192664 15/50 excel complete pump assy NOW USE 20192664 15/50 EXCEL COMPLETE PUMP ASSY
Vokera part no. 6025
117   ERP PUMP - REPLACED 6025
Vokera part no. 20192664		 £227.37
118   PUMP WIRE
Vokera part no. 7842
119   SCREW
Vokera part no. 5124		 £0.30
120 Part number 7621, Heating Manifold HEATING MANIFOLD
Vokera part no. 7621		 £207.97
121 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
122 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203		 £0.21
123   BY- PASS BOBBIN
Vokera part no. 0666
124 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
125 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
126 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
128 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
129 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
130   OBSOLETE NUT
Vokera part no. 0599
