VOKERA
MYNUTE 28-96 SE - (Assembly 6)
Appliance Code: 41-094-08

Appliance Diagram


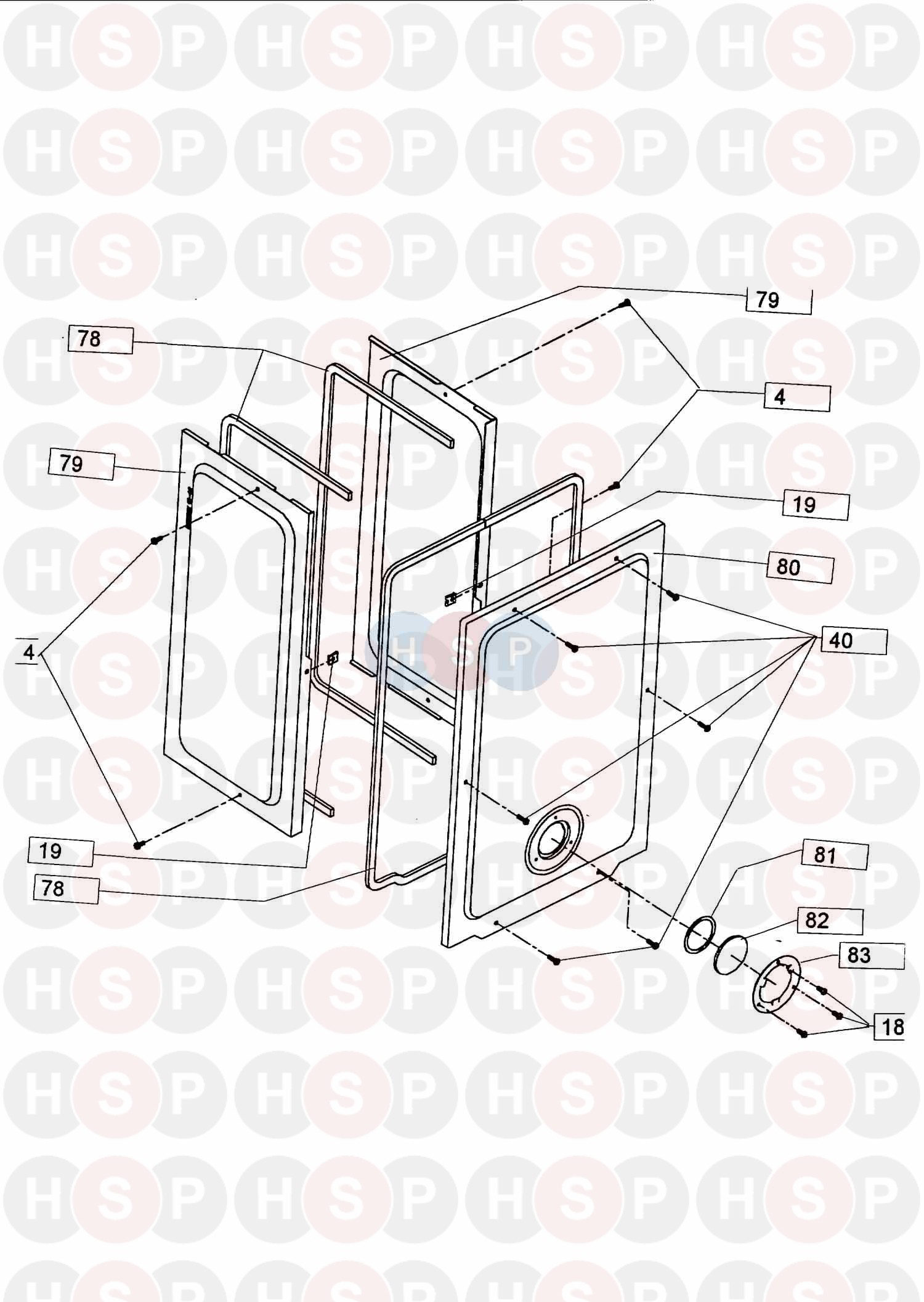

Assembly 6 diagram for Vokera Mynute 28-96 SEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 7204, Expansion vessel 8L EXPANSION VESSEL 8L
Vokera part no. 7204		 £107.16
2   MAIN FRAME
Vokera part no. 7905
3   BAR
Vokera part no. 5589
4   SELF TAPPING HEX HEAD 3.9 X L0MM LONG STEEL
Vokera part no. 5180
5   CABLE CLAMP
Vokera part no. 5371
6   SCREW
Vokera part no. 5171
7   SCREW
Vokera part no. 5124		 £0.30
8 Part number 7621, Heating Manifold HEATING MANIFOLD
Vokera part no. 7621		 £207.97
9 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
10 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203		 £0.21
11 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
11 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
12 Part number 8083, Fan Flue Tube FAN FLUE TUBE
Vokera part no. 8083		 £11.84
13 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
13 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
14 Part number 6985, Venturi (Positive) VENTURI (POSITIVE)
Vokera part no. 6985		 £4.88
15   FAN TO FLUE CONNECTOR (WITHOUT VENTURI'S)
Vokera part no. 7280		 £31.02
16 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
17   HOOD ASSEMBLY
Vokera part no. 5907		 £36.82
18 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
19 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
20   FIBRE WASHER - SPECIAL
Vokera part no. 5067
21 Part number 5316, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5316		 £15.98
22 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
23 Part number 6028, Combustion Chamber COMBUSTION CHAMBER
Vokera part no. 6028		 £22.81
24 Part number 5300, Metal Side Panel (L/H) METAL SIDE PANEL (L/H)
Vokera part no. 5300		 £5.64
25   BACK SIDE OF COMB CHAMBER
Vokera part no. 5312		 £7.42
26   METAL SIDE PANEL R/H
Vokera part no. 5299
27   AIR BAFFLE
Vokera part no. 5951
28 Part number 5315, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5315		 £15.04
29 Part number 5909, Combustion Chamber Front (Metal) COMBUSTION CHAMBER FRONT (METAL)
Vokera part no. 5909		 £10.93
30 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
31   SCREW
Vokera part no. 5081		 £0.24
32 Part number 6984, NOW USE 7948 VENTURI NOW USE 7948 VENTURI
Vokera part no. 6984
32 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948		 £10.75
33 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
34   SCREW
Vokera part no. 5176		 £0.30
35 Part number 5911, Fan Assembly FAN ASSEMBLY
Vokera part no. 5911		 £127.40
36   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
37 Part number 5356, Heat Exchanger HEAT EXCHANGER
Vokera part no. 5356		 £264.20
38 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
39   AIR BAFFLE
Vokera part no. 5950
40   SCREW
Vokera part no. 5080		 £0.21
41   RIVET
Vokera part no. 5093
42 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
43 Part number 6897, Pump Washer PUMP WASHER
Vokera part no. 6897		 £0.72
44   PUMP WIRE
Vokera part no. 7842
45   ERP PUMP - REPLACED 6025
Vokera part no. 20192664		 £227.37
45 Part number 6025, NOW USE 20192664 15/50 excel complete pump assy NOW USE 20192664 15/50 EXCEL COMPLETE PUMP ASSY
Vokera part no. 6025
46 Part number 5322, Screw M5x45 SCREW M5X45
Vokera part no. 5322		 £1.45
47 Part number 5323, Washer WASHER
Vokera part no. 5323		 £0.39
48   RETURN PIPE
Vokera part no. 7850
49   PIPE
Vokera part no. 7843		 £14.85
50 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
51 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
52   RETURN PIPE
Vokera part no. 7845
53 Part number 8084, Air Box Hole Cap AIR BOX HOLE CAP
Vokera part no. 8084		 £4.08
54 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
55 Part number 4931, Pump Over-Run Thermostat PUMP OVER-RUN THERMOSTAT
Vokera part no. 4931
56 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
57   FLOW PIPE
Vokera part no. 7844
58 Part number 5930, Pipe PIPE
Vokera part no. 5930
59   OBSOLETE CASE LOCATING CLIP L/H
Vokera part no. 5581
60   SELF ADHESIVE ALUM SHEET
Vokera part no. 5333
61   CLIP SPECIAL
Vokera part no. 5588
62   OBSOLETE CASE LOCATING CLIP R/H
Vokera part no. 5580
63   WHITE OUTER CASING
Vokera part no. 7920
64 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
65 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
66 Part number 7100, 3/4" Flow/Return Valve 90 Deg 3/4" FLOW/RETURN VALVE 90 DEG
Vokera part no. 7100		 £27.65
67 Part number 7098, Gas Cock GAS COCK
Vokera part no. 7098		 £25.56
68 Part number 7281, Silicone Tube SILICONE TUBE
Vokera part no. 7281		 £2.85
69   AIR FLANGE
Vokera part no. 5922
70   OBSOLETE AIR CHAMBER
Vokera part no. 8603
71   SELF TAPPING SCREW
Vokera part no. 5082
72 Part number 10026933, Block with combustion analysis check BLOCK WITH COMBUSTION ANALYSIS CHECK
Vokera part no. 10026933		 £9.45
72 Part number 8085, NOW USE 10026933 Combustion analysis check NOW USE 10026933 COMBUSTION ANALYSIS CHECK
Vokera part no. 8085
73 Part number 01005272, Air Pressure Switch Rep 7070/8195/9232 AIR PRESSURE SWITCH REP 7070/8195/9232
Vokera part no. 01005272		 £58.89
73 Part number 7070, NOW USE 01005272 PRESSURE SWITCH NOW USE 01005272 PRESSURE SWITCH
Vokera part no. 7070
74 Part number 8086, Brass Cap BRASS CAP
Vokera part no. 8086		 £2.51
75   AIR DEFLECTOR
Vokera part no. 5923
76   RIVET
Vokera part no. 5094
77   SEAL
Vokera part no. 5927		 £4.47
78 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
79   SIDE PANEL
Vokera part no. 7701
80   FRONT PANEL
Vokera part no. 5904
81 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
82 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
83 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
84 Part number 8214, Ignition Box (Brahma) IGNITION BOX (BRAHMA)
Vokera part no. 8214		 £150.14
85   SELF TAPPING SCREW
Vokera part no. 5169
86 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
87 Part number 5592, Mode Selector Switch MODE SELECTOR SWITCH
Vokera part no. 5592		 £3.20
88   SCREW M4 X 8
Vokera part no. 5086
89   ELECTRONIC IGNITION MOUNTING PLATE
Vokera part no. 7786
90   BRACKET
Vokera part no. 7788
91   OBSOLETE FRONT CONTROL PANEL
Vokera part no. 8311
92 Part number 6466, Reset Button RESET BUTTON
Vokera part no. 6466		 £7.76
93   OBSOLETE SCREW
Vokera part no. 5075
94   OBSOLETE TERMINAL BLOCK COVER PLATE
Vokera part no. 7918
96   R/H CONTROL PANEL HINGE
Vokera part no. 7787
97 Part number 3409, High Limit Stat HIGH LIMIT STAT
Vokera part no. 3409		 £21.43
98   OBSOLETE SCREW C/S PHILLIPS 4MM X 12MML
Vokera part no. 5199
99 Part number 8377, Pressure Gauge PRESSURE GAUGE
Vokera part no. 8377		 £19.98
100   CLOCK BLANKING PLATE
Vokera part no. 7790
101   MODEL NO. STRIP
Vokera part no. 7846
102   CONTROL KNOB
Vokera part no. 7789
103   MAIN BURNER
Vokera part no. 7096
106 Part number 5853, Electrode & Lead ELECTRODE & LEAD
Vokera part no. 5853		 £15.75
108   GAS VALVE TO BURNER PIPE
Vokera part no. 7714
109 Part number 7625, Gas valve GAS VALVE
Vokera part no. 7625		 £207.22
110   GAS VALVE SUPPORT BRACKET
Vokera part no. 7840
111 Part number 5640, Spark Electrode & Lead SPARK ELECTRODE & LEAD
Vokera part no. 5640		 £15.75
112 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105		 £0.93
113 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863		 £0.63
114   OBSOLETE LOCKING WASHER
Vokera part no. 5173
115   CLIP
Vokera part no. 3412		 £0.96
116   OBSOLETE BLANKING PLATE
Vokera part no. 7848
119   O-RING
Vokera part no. 0667
120   BY- PASS BOBBIN
Vokera part no. 0666
121 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
122 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
123 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
124   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
125 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
126 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
127   OBSOLETE NUT
Vokera part no. 0599
128   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
129 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
135   CONNECTOR SLEEVE
Vokera part no. 5455
136 Part number 0750, NOW USE 7625 Solenoid NOW USE 7625 SOLENOID
Vokera part no. 0750
136 Part number 7625, Gas valve GAS VALVE
Vokera part no. 7625		 £207.22
137   OBSOLETE NIPPLE
Vokera part no. 8096
138   TUBE
Vokera part no. 8098
140   SCREW
Vokera part no. 5219
141   PLASTIC COVER
Vokera part no. 8673
