MYNUTE 20-70 SE - (Assembly 2)
Appliance Code: 41-094-07

Appliance Diagram


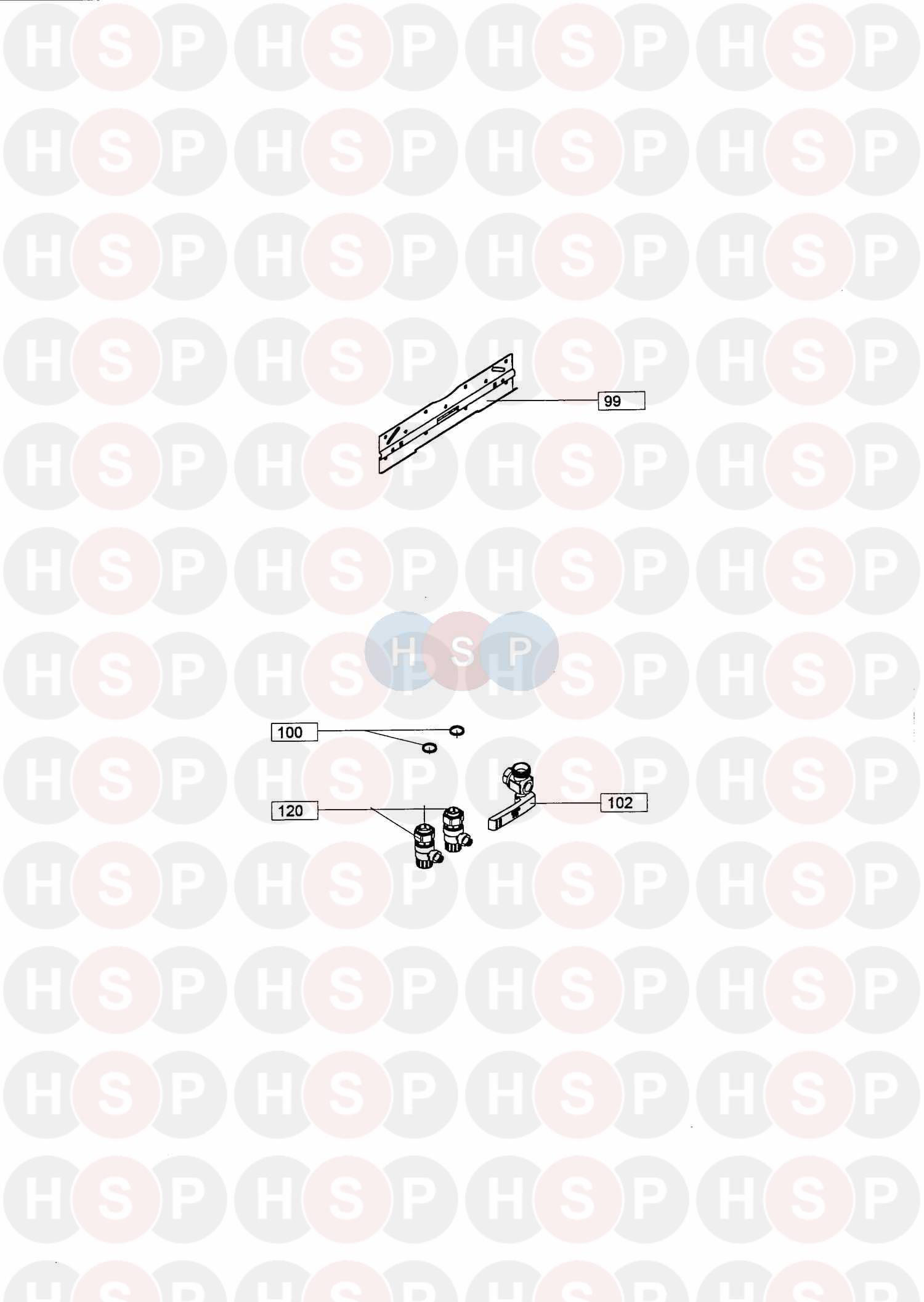

Assembly 2 diagram for Vokera Mynute 20-70 SEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
3   SELF TAPPING HEX HEAD 3.9 X L0MM LONG STEEL
Vokera part no. 5180
4 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
5   SCREW
Vokera part no. 5080		 £0.21
6   COMBUSTION CHAMBER FRONT PANEL
Vokera part no. 7822
7 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
8 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
9 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
10 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
11   TUBE
Vokera part no. 8402
12   COMBUSTION CHAMBER
Vokera part no. 7806		 £42.44
13   GROMMET FAN GASKET
Vokera part no. 5900
14   PRESSURE SWITCH PLATE
Vokera part no. 8196
15 Part number 8195, NOW USE 01005272 PRESSURE SWITCH NOW USE 01005272 PRESSURE SWITCH
Vokera part no. 8195
16   PRESSURE SWITCH
Vokera part no. 0975		 £57.93
17   RIVET
Vokera part no. 5094
18   AIR DEFLECTOR
Vokera part no. 5972
19   SEAL
Vokera part no. 5927		 £4.47
20   EXPANSION VESSEL
Vokera part no. 7804
21   MAIN FRAME
Vokera part no. 7619
22   BAR
Vokera part no. 5589
23   CABLE CLAMP
Vokera part no. 5371
24   SCREW
Vokera part no. 5171
25   ALUMINIUM TUBE
Vokera part no. 7068
26 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
26 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
27 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948		 £10.75
27 Part number 6984, NOW USE 7948 VENTURI NOW USE 7948 VENTURI
Vokera part no. 6984
28 Part number 6985, Venturi (Positive) VENTURI (POSITIVE)
Vokera part no. 6985		 £4.88
29   FAN TO FLUE CONNECTOR
Vokera part no. 7816
30 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
31   NOW USE 2936 HOOD ASSEMBLY
Vokera part no. 7811
31   HOOD ASSEMBLY
Vokera part no. 2936		 £30.77
32   FIBRE WASHER - SPECIAL
Vokera part no. 5067
33   COMBUSTION CHAMBER BACK COVER
Vokera part no. 7812		 £6.72
34 Part number 7818, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 7818		 £14.65
35 Part number 5300, Metal Side Panel (L/H) METAL SIDE PANEL (L/H)
Vokera part no. 5300		 £5.64
36 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
37 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
38 Part number 7817, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 7817		 £14.33
39   COMBUSTION CHAMBER - FRONT
Vokera part no. 7813		 £31.30
40 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
41 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
41 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
42   SCREW
Vokera part no. 5081		 £0.24
43 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
44   SCREW
Vokera part no. 5176		 £0.30
45 Part number 7618, NOW USE 5910 FAN NOW USE 5910 FAN
Vokera part no. 7618
45 Part number 5910, Fan Assembly FAN ASSEMBLY
Vokera part no. 5910		 £106.11
46   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
47   METAL SIDE PANEL R/H
Vokera part no. 5299
48 Part number 7810, NOW USE 01005248 Heat Exchanger with 2 x 5023 Washers NOW USE 01005248 HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 7810
48   ENGINEER/AGENTS 7810 & 10021232
Vokera part no. 01005248		 £131.52
49   L/H FAN BAFFLE
Vokera part no. 7815		 £18.33
50   R/H AIR DEFLECTOR
Vokera part no. 7814
51   RIVET
Vokera part no. 5093
52   OBSOLETE CASE LOCATING CLIP L/H
Vokera part no. 5581
53   OUTER CASING
Vokera part no. 7793
54   CLIP SPECIAL
Vokera part no. 5588
55   OBSOLETE CASE LOCATING CLIP R/H
Vokera part no. 5580
56   NG BURNER
Vokera part no. 7808
57 Part number 5853, Electrode & Lead ELECTRODE & LEAD
Vokera part no. 5853		 £15.75
58   GAS CONNECTING BARREL
Vokera part no. 7777
59 Part number 7625, Gas valve GAS VALVE
Vokera part no. 7625		 £207.22
60   GAS CONNECTING BARREL
Vokera part no. 7776
62 Part number 5640, Spark Electrode & Lead SPARK ELECTRODE & LEAD
Vokera part no. 5640		 £15.75
63   SELF TAPPING SCREW
Vokera part no. 5169
64 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105		 £0.93
65 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863		 £0.63
66 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
67   PUMP RETURN TUBE
Vokera part no. 7782
68 Part number 6897, Pump Washer PUMP WASHER
Vokera part no. 6897		 £0.72
69 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
70   OBSOLETE 3/4'' INCH GAS NIPPLE
Vokera part no. 5975
71   RETURN PIPE
Vokera part no. 7819
72 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
73   EXPANSION VESSEL PIPE
Vokera part no. 10020076		 £13.16
73   NOW USE 10020076 EXPANSION VESSEL PIPE
Vokera part no. 7805
74   FLOW PIPE
Vokera part no. 7820
75   FLOW TUBE
Vokera part no. 7783
76 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
77 Part number 4931, Pump Over-Run Thermostat PUMP OVER-RUN THERMOSTAT
Vokera part no. 4931
78   SCREW
Vokera part no. 5124		 £0.30
79 Part number 7621, Heating Manifold HEATING MANIFOLD
Vokera part no. 7621		 £207.97
80 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
81 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203		 £0.21
82 Part number 8214, Ignition Box (Brahma) IGNITION BOX (BRAHMA)
Vokera part no. 8214		 £150.14
83   SCREW
Vokera part no. 5077		 £0.15
84   ELECTRONIC IGNITION MOUNTING PLATE
Vokera part no. 7786
85 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
86 Part number 3409, High Limit Stat HIGH LIMIT STAT
Vokera part no. 3409		 £21.43
87 Part number 5592, Mode Selector Switch MODE SELECTOR SWITCH
Vokera part no. 5592		 £3.20
88   BRACKET
Vokera part no. 7788
89   CONTROL PANEL
Vokera part no. 8404
91   OBSOLETE SCREW C/S PHILLIPS 4MM X 12MML
Vokera part no. 5199
92   SCREW M4 X 8
Vokera part no. 5086
94   R/H CONTROL PANEL HINGE
Vokera part no. 7787
95   CLOCK BLANKING PLATE
Vokera part no. 7790
96 Part number 8377, Pressure Gauge PRESSURE GAUGE
Vokera part no. 8377		 £19.98
97   DECORATIVE LOGO STRIP
Vokera part no. 7821
98   CONTROL KNOB
Vokera part no. 7789
99 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
100 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
102 Part number 7098, Gas Cock GAS COCK
Vokera part no. 7098		 £25.56
103 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
104 Part number 6025, NOW USE 20192664 15/50 excel complete pump assy NOW USE 20192664 15/50 EXCEL COMPLETE PUMP ASSY
Vokera part no. 6025
104   ERP PUMP - REPLACED 6025
Vokera part no. 20192664		 £227.37
105   PUMP CABLE
Vokera part no. 7780		 £7.32
107   BY- PASS BOBBIN
Vokera part no. 0666
108 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
109 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
110 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
111   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
112 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
113 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
114   OBSOLETE NUT
Vokera part no. 0599
115   OBSOLETE SCREW
Vokera part no. 5075
116   OBSOLETE TERMINAL BLOCK COVER PLATE
Vokera part no. 7918
117 Part number 7625, Gas valve GAS VALVE
Vokera part no. 7625		 £207.22
117 Part number 0750, NOW USE 7625 Solenoid NOW USE 7625 SOLENOID
Vokera part no. 0750
120 Part number 9763, 3/4" Flow/Return Valve Straight 3/4" FLOW/RETURN VALVE STRAIGHT
Vokera part no. 9763		 £30.84
120   NOW USE 9763 FLOW/RETURN VALVE
Vokera part no. 7835
124 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
125   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
128   CONNECTOR SLEEVE
Vokera part no. 5455
129 Part number 6466, Reset Button RESET BUTTON
Vokera part no. 6466		 £7.76
131 Part number 6026, Combustion Chamber Assembly COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 6026
132   OBSOLETE NIPPLE
Vokera part no. 8096
133   TUBE
Vokera part no. 8098
134   CLIP
Vokera part no. 3412		 £0.96
