VOKERA
MYNUTE 15 VHE,
MYNUTE 15 VHE ERP REV 12 (02/2017) LPG,
MYNUTE 15 VHE ERP REV 12 (02/2017) NG,
MYNUTE 15 VHE REV 4 (01/2010) LPG,
MYNUTE 15 VHE REV 4 (01/2010) NG - (Connections)
Appliance Code: 41-094-68

Appliance Diagram


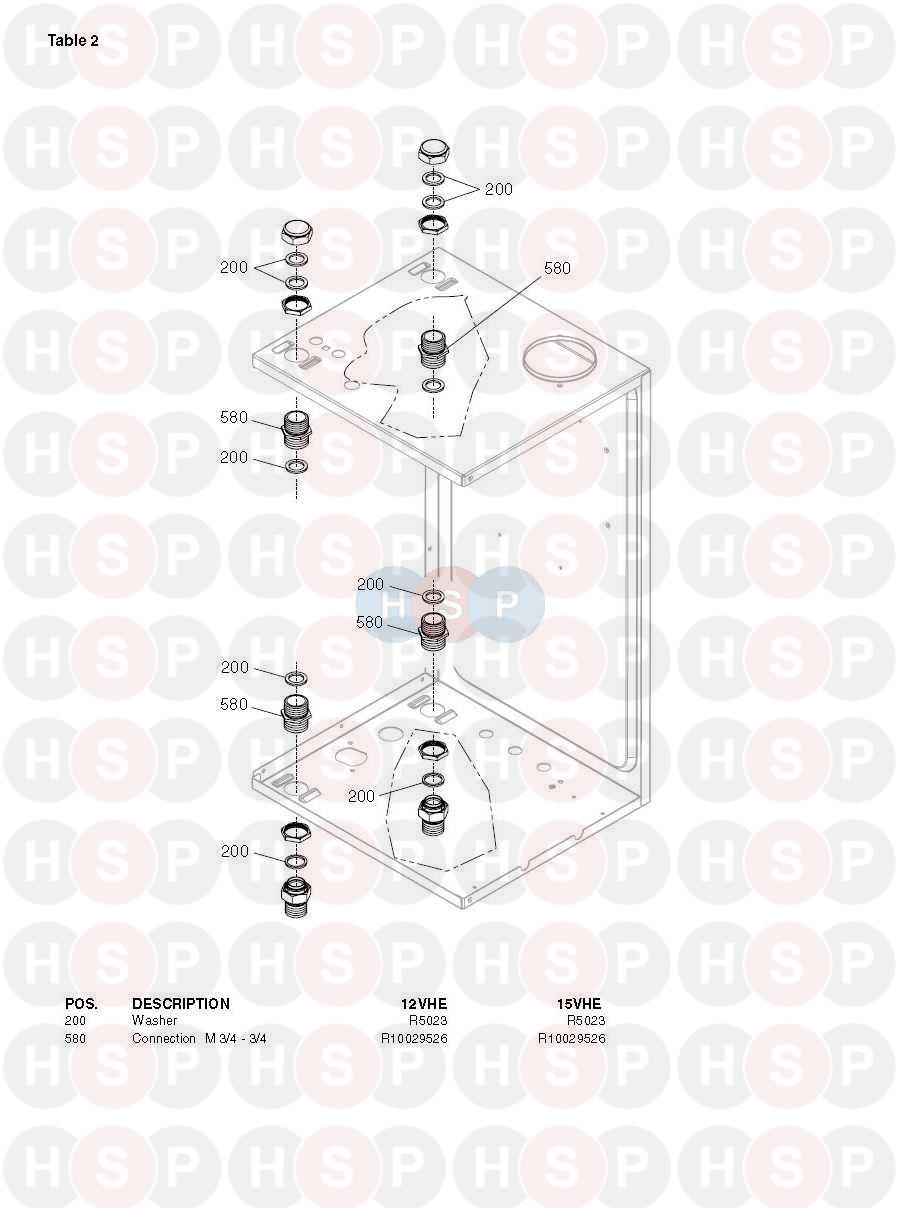

Connections diagram for Vokera Mynute 15 VHEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CONDENSING EXCHANGER ASSEMBLY
Vokera part no. 20000141		 £552.80
2   AIR BOX SIDE
Vokera part no. 20000140		 £25.59
3 Part number 10028456, Fan (up to serial n.<20065834J1959999) FAN (UP TO SERIAL N.<20065834J1959999)
Vokera part no. 10028456		 £309.51
4   BURNER
Vokera part no. 20000148		 £122.56
5 Part number 10027864, Spark/Ignition electrode SPARK/IGNITION ELECTRODE
Vokera part no. 10027864		 £30.24
6 Part number 10026316, Sensing electrode SENSING ELECTRODE
Vokera part no. 10026316		 £12.30
7   CONVEYOR
Vokera part no. 20000123		 £53.03
12 Part number 10028421, Flue drain connection Replaced 10026311 FLUE DRAIN CONNECTION REPLACED 10026311
Vokera part no. 10028421		 £9.58
13 Part number 10028538, NOW USE 20039202 Gas valve NOW USE 20039202 GAS VALVE
Vokera part no. 10028538
13 Part number 20039202, Gas valve Rep 10028538 & 10027187 & 20025752 GAS VALVE REP 10028538 & 10027187 & 20025752
Vokera part no. 20039202		 £170.04
15   3/4" GAS COCK
Vokera part no. 10027806		 £29.71
18   REAR INSTRUMENT PANEL
Vokera part no. 20000121		 £14.01
19   GLASS FLANGE ASSEMBLY
Vokera part no. 10029823		 £9.42
20 Part number 10029717, Main Printed Circuit Board MAIN PRINTED CIRCUIT BOARD
Vokera part no. 10029717		 £194.17
21 Part number 10028557, LED light guide LED LIGHT GUIDE
Vokera part no. 10028557		 £4.03
26   INSTRUMENT PANEL
Vokera part no. 20000168		 £22.28
26   INSTRUMENT PANEL
Vokera part no. 20000124		 £23.34
27 Part number 10028559, Knob assembly KNOB ASSEMBLY
Vokera part no. 10028559		 £5.73
27 Part number 10023805, Metal Air Box Hole Cap METAL AIR BOX HOLE CAP
Vokera part no. 10023805		 £8.93
27 Part number 10020625, Square Plastic Nut underneath Test Plate SQUARE PLASTIC NUT UNDERNEATH TEST PLATE
Vokera part no. 10020625		 £2.61
31   CASING
Vokera part no. 20000122		 £101.86
35 Part number 10028420, Air gas conveyor AIR GAS CONVEYOR
Vokera part no. 10028420		 £49.54
36   FLANGE FOR FAN
Vokera part no. 20000120		 £21.23
39   GAS PIPE
Vokera part no. 20000125		 £14.43
46 Part number 10027159, LPG Injector (3.6) LPG INJECTOR (3.6)
Vokera part no. 10027159		 £6.03
67 Part number 10026322, Washer WASHER
Vokera part no. 10026322		 £21.67
67   DRAIN PLUG
Vokera part no. 20000118		 £12.84
69 Part number 10028425, NOW USE 20046836 TRYTON NOW USE 20046836 TRYTON
Vokera part no. 10028425
69 Part number 20046836, Tryton with 3 Screws TRYTON WITH 3 SCREWS
Vokera part no. 20046836		 £13.56
72   MIXER
Vokera part no. 10027408		 £54.44
79 Part number 10028422, Flame detection electrode FLAME DETECTION ELECTRODE
Vokera part no. 10028422		 £21.15
86   DRAIN PLUG
Vokera part no. 20000143		 £23.97
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478		 £2.05
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
433 Part number 10024986, Locking Pin LOCKING PIN
Vokera part no. 10024986		 £0.98
475 Part number 10026323, Washer WASHER
Vokera part no. 10026323		 £12.98
479 Part number 20002969, Ignition transformer with wires Rep 10026237 & 20001563 IGNITION TRANSFORMER WITH WIRES REP 10026237 & 20001563
Vokera part no. 20002969		 £42.16
479 Part number 10026237, NOW USE 20002969 Transformer NOW USE 20002969 TRANSFORMER
Vokera part no. 10026237
482 Part number 10026366, Washer WASHER
Vokera part no. 10026366		 £5.41
486 Part number 10026325, O ring O RING
Vokera part no. 10026325		 £2.52
487 Part number 10026345, Washer WASHER
Vokera part no. 10026345		 £7.00
497 Part number 10026796, Fan Gasket FAN GASKET
Vokera part no. 10026796		 £7.18
509 Part number 10026982, Limit stat LIMIT STAT
Vokera part no. 10026982		 £9.67
512 Part number 10027193, Washer WASHER
Vokera part no. 10027193		 £1.11
552 Part number 10028426, Washer WASHER
Vokera part no. 10028426		 £8.58
580   CONNECTION
Vokera part no. 10029526		 £10.87
593   TOP FLUE OUTLET BLANKING CAP
Vokera part no. 20000142		 £5.99
600   PUMP CABLE
Vokera part no. 20000134		 £8.49
600   COMBUSTION CABLE
Vokera part no. 20000135		 £20.16
600 Part number 10026558, TSC1 (ignition transformer) to Spark electrode Wiring TSC1 (IGNITION TRANSFORMER) TO SPARK ELECTRODE WIRING
Vokera part no. 10026558		 £10.79
601   GAS VALVE CABLE
Vokera part no. 20000137		 £16.45
601 Part number 10027360, J12 Link wire between heat exchanger thermostat & flow overheat stat J12 LINK WIRE BETWEEN HEAT EXCHANGER THERMOSTAT & FLOW OVERHEAT STAT
Vokera part no. 10027360		 £3.74
601   CN1 TO M3A, M3 AND FAN
Vokera part no. 20000136		 £26.59
602   CN2 TO IGNITION TRANSFORMER
Vokera part no. 20000138		 £9.97
700   LPG TO NG CONVERSION KIT
Vokera part no. 01005464		 £9.13
701 Part number 01005446, NG to LPG conversion kit (3.6) NG TO LPG CONVERSION KIT (3.6)
Vokera part no. 01005446		 £18.68
