VOKERA
MYNUTE 14 SE - (Assembly13)
Appliance Code: 41-094-12

Appliance Diagram


Assembly13 diagram for Vokera Mynute 14 SEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   RIVET
Vokera part no. 5093
2   OBSOLETE CASE LOCATING CLIP L/H
Vokera part no. 5581
3   CASING
Vokera part no. 9587
4   CLIP SPECIAL
Vokera part no. 5588
5   OBSOLETE CASE LOCATING CLIP R/H
Vokera part no. 5580
6 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
7 Part number 7620, Expansion Vessel EXPANSION VESSEL
Vokera part no. 7620		 £104.19
8   EXPANSION VESSEL
Vokera part no. 7804
9   FRAME
Vokera part no. 9799
10   BAR
Vokera part no. 5589
11   SELF TAPPING HEX HEAD 3.9 X L0MM LONG STEEL
Vokera part no. 5180
12   CABLE CLAMP
Vokera part no. 5371
13   SCREW
Vokera part no. 5171
14 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
15   COMBUSTION CHAMBER SIDE PANELS
Vokera part no. 7831
16   AIR BOX SIDE
Vokera part no. 7824		 £29.08
17   COMBUSTION CHAMBER COVER
Vokera part no. 5957
18   COMBUSTION CHAMBER FRONT PANEL
Vokera part no. 7822
19   SCREW
Vokera part no. 5080		 £0.21
20 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
21 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
22 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
23 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
24   SCREW
Vokera part no. 5077		 £0.15
25   OBSOLETE SCREW 3.5M/M X 7
Vokera part no. 5145
26   SILICONE TUBE
Vokera part no. 5971		 £6.82
28   COMBUSTION CHAMBER
Vokera part no. 7622
29   COMBUSTION CHAMBER
Vokera part no. 7806		 £42.44
30   GROMMET FAN GASKET
Vokera part no. 5900
31   PRESSURE SWITCH PLATE
Vokera part no. 8196
32   PRESSURE DIFFERENTIAL SWITCH BRACKET
Vokera part no. 9233
33 Part number 01005272, Air Pressure Switch Rep 7070/8195/9232 AIR PRESSURE SWITCH REP 7070/8195/9232
Vokera part no. 01005272		 £58.89
33 Part number 9232, NOW USE 01005272 PRESSURE SWITCH NOW USE 01005272 PRESSURE SWITCH
Vokera part no. 9232
34   RIVET
Vokera part no. 5094
35   AIR DEFLECTOR
Vokera part no. 5972
36   SEAL
Vokera part no. 5927		 £4.47
37 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
38 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
39 Part number 7100, 3/4" Flow/Return Valve 90 Deg 3/4" FLOW/RETURN VALVE 90 DEG
Vokera part no. 7100		 £27.65
40   GAS COCK
Vokera part no. 9797		 £25.11
41   FAN UNION TUBE
Vokera part no. 5966
42   ALUMINIUM TUBE
Vokera part no. 7068
43 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
43 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
44 Part number 6984, NOW USE 7948 VENTURI NOW USE 7948 VENTURI
Vokera part no. 6984
44 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948		 £10.75
45 Part number 6985, Venturi (Positive) VENTURI (POSITIVE)
Vokera part no. 6985		 £4.88
46   FAN OUTLET CONNECTOR
Vokera part no. 7779
47   FAN TO FLUE CONNECTOR
Vokera part no. 7816
48 Part number 5964, Fan Washer FAN WASHER
Vokera part no. 5964
49 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
50 Part number 5958, Hood Assembly HOOD ASSEMBLY
Vokera part no. 5958
51   HOOD ASSEMBLY
Vokera part no. 2936		 £30.77
51   NOW USE 2936 HOOD ASSEMBLY
Vokera part no. 7811
52   FIBRE WASHER - SPECIAL
Vokera part no. 5067
53   OBSOLETE METAL PANEL REAR
Vokera part no. 5959
54   COMBUSTION CHAMBER BACK COVER
Vokera part no. 7812		 £6.72
55 Part number 5962, Combustion Chamber Back Panel COMBUSTION CHAMBER BACK PANEL
Vokera part no. 5962		 £15.04
56 Part number 7818, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 7818		 £14.65
57 Part number 5300, Metal Side Panel (L/H) METAL SIDE PANEL (L/H)
Vokera part no. 5300		 £5.64
58 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
59 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
60 Part number 5961, Combustion Chamber Front Panel COMBUSTION CHAMBER FRONT PANEL
Vokera part no. 5961		 £15.04
61 Part number 7817, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 7817		 £14.33
62 Part number 2819, Combustion Cover COMBUSTION COVER
Vokera part no. 2819		 £16.94
62 Part number 5960, NOW USE 2819 Front Plate for Combustion Chamber NOW USE 2819 FRONT PLATE FOR COMBUSTION CHAMBER
Vokera part no. 5960
63   COMBUSTION CHAMBER - FRONT
Vokera part no. 7813		 £31.30
64 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
65 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
65 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
66   SCREW
Vokera part no. 5081		 £0.24

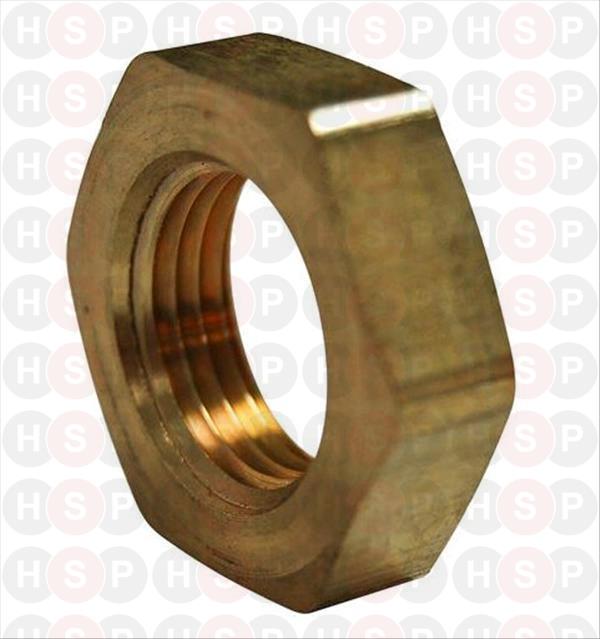

67 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
68   SCREW
Vokera part no. 5176		 £0.30

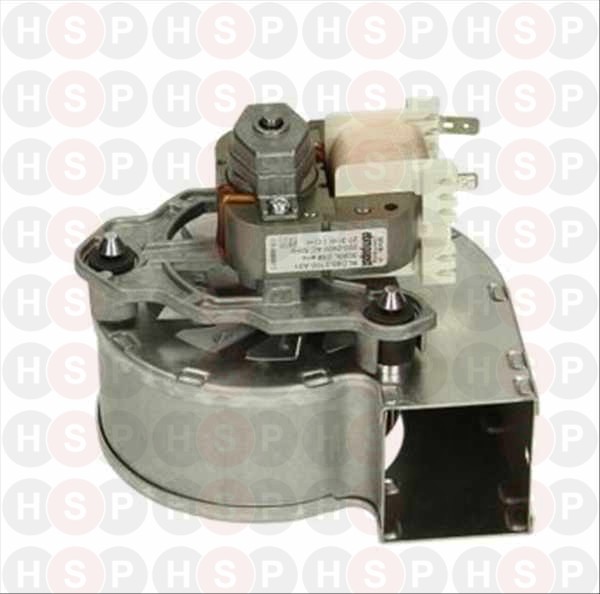

69 Part number 5963, Fan Assembly FAN ASSEMBLY
Vokera part no. 5963		 £140.91
70 Part number 5910, Fan Assembly FAN ASSEMBLY
Vokera part no. 5910		 £106.11
70 Part number 7618, NOW USE 5910 FAN NOW USE 5910 FAN
Vokera part no. 7618
71   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
72   METAL SIDE PANEL R/H
Vokera part no. 5299
73   ENGINEERS AND AGENTS ONLY MAIN HEAT EXCHANGER IN PLACE 5388 & 10021231
Vokera part no. 01005247		 £112.03
73 Part number 5388, Heat Exchanger with 2 x 5023 Washers HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 5388		 £164.16
74   ENGINEER/AGENTS 7810 & 10021232
Vokera part no. 01005248		 £131.52
74 Part number 7810, NOW USE 01005248 Heat Exchanger with 2 x 5023 Washers NOW USE 01005248 HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 7810
75   L/H FAN BAFFLE
Vokera part no. 7815		 £18.33
76   R/H AIR DEFLECTOR
Vokera part no. 7814
77   BURNER NG
Vokera part no. 2801
78 Part number 7623, NG Burner NG BURNER
Vokera part no. 7623		 £81.17
79   NG BURNER
Vokera part no. 7808
80   OBSOLETE EDGE CLIP
Vokera part no. 5154
81 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105		 £0.93
82   GAS CONNECTING BARREL
Vokera part no. 7777
83 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863		 £0.63
84 Part number 8277, Gas Valve GAS VALVE
Vokera part no. 8277		 £185.81
85 Part number 9842, Gas Valve GAS VALVE
Vokera part no. 9842		 £170.19
87 Part number 9800, Ignition Box IGNITION BOX
Vokera part no. 9800		 £187.80
88   SCREW
Vokera part no. 8361
89 Part number 8282, Spark Electrode Inc Lead SPARK ELECTRODE INC LEAD
Vokera part no. 8282		 £14.65
90 Part number 8364, Spark Electrode Inc Lead SPARK ELECTRODE INC LEAD
Vokera part no. 8364		 £15.75
91   SEAL
Vokera part no. 2888
92   SELF TAPPING SCREW
Vokera part no. 5169
95   OBSOLETE TUBE
Vokera part no. 8097
96 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948		 £10.75
97   COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 2803
98 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
99   PUMP RETURN TUBE
Vokera part no. 7782
100 Part number 6897, Pump Washer PUMP WASHER
Vokera part no. 6897		 £0.72
101 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
102   OBSOLETE 3/4'' INCH GAS NIPPLE
Vokera part no. 5975
103 Part number 7781, Pipe PIPE
Vokera part no. 7781
104   EXPANSION VESSEL PIPE
Vokera part no. 10020076		 £13.16
104   NOW USE 10020076 EXPANSION VESSEL PIPE
Vokera part no. 7805
105   HEAT EX. RETURN PIPE
Vokera part no. 7615		 £16.75
106   RETURN PIPE
Vokera part no. 7819
107 Part number 5929, Pipe PIPE
Vokera part no. 5929
108   FLOW PIPE
Vokera part no. 7820
109 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
110 Part number 2258, High Limit Thermostat HIGH LIMIT THERMOSTAT
Vokera part no. 2258		 £8.97
110 Part number 8367, NOW USE 2258 HIGH LIMIT THERMOSTAT NOW USE 2258 HIGH LIMIT THERMOSTAT
Vokera part no. 8367
113 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
114   OBSOLETE LOCKING WASHER
Vokera part no. 5173
115   CLIP
Vokera part no. 3412		 £0.96
116 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
117 Part number 5592, Mode Selector Switch MODE SELECTOR SWITCH
Vokera part no. 5592		 £3.20
118   BRACKET
Vokera part no. 7788
119 Part number 6466, Reset Button RESET BUTTON
Vokera part no. 6466		 £7.76
120   CONTROL PANEL BRACKET
Vokera part no. 9583
121   OBSOLETE SCREW C/S PHILLIPS 4MM X 12MML
Vokera part no. 5199
122   SCREW M4 X 8
Vokera part no. 5086
123   OBSOLETE SCREW
Vokera part no. 5075
127   R/H CONTROL PANEL HINGE
Vokera part no. 7787
128   INSTRUMENT PANEL
Vokera part no. 9581
130 Part number 8654, Clock Blanking Plate CLOCK BLANKING PLATE
Vokera part no. 8654		 £2.25
131 Part number 9582, Pressure Gauge PRESSURE GAUGE
Vokera part no. 9582		 £19.35
133   KNOB
Vokera part no. 9599
134 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
135 Part number 6025, NOW USE 20192664 15/50 excel complete pump assy NOW USE 20192664 15/50 EXCEL COMPLETE PUMP ASSY
Vokera part no. 6025
135   ERP PUMP - REPLACED 6025
Vokera part no. 20192664		 £227.37
136   PUMP CABLE
Vokera part no. 7780		 £7.32
137   SCREW
Vokera part no. 5124		 £0.30
138 Part number 7621, Heating Manifold HEATING MANIFOLD
Vokera part no. 7621		 £207.97
139 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
140 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203		 £0.21
141   BY- PASS BOBBIN
Vokera part no. 0666
142 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
143 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
144 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
146 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
147 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
148   OBSOLETE NUT
Vokera part no. 0599
149   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
150 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
151   NOW USE 9763 FLOW/RETURN VALVE
Vokera part no. 7835
151 Part number 9763, 3/4" Flow/Return Valve Straight 3/4" FLOW/RETURN VALVE STRAIGHT
Vokera part no. 9763		 £30.84


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
